Compressor HVAC



BA83.55-P-1000-01H Refrigerant Compressor
- except CODE (N63) Front engine power take-off with carrier for additional refrigerant compressor

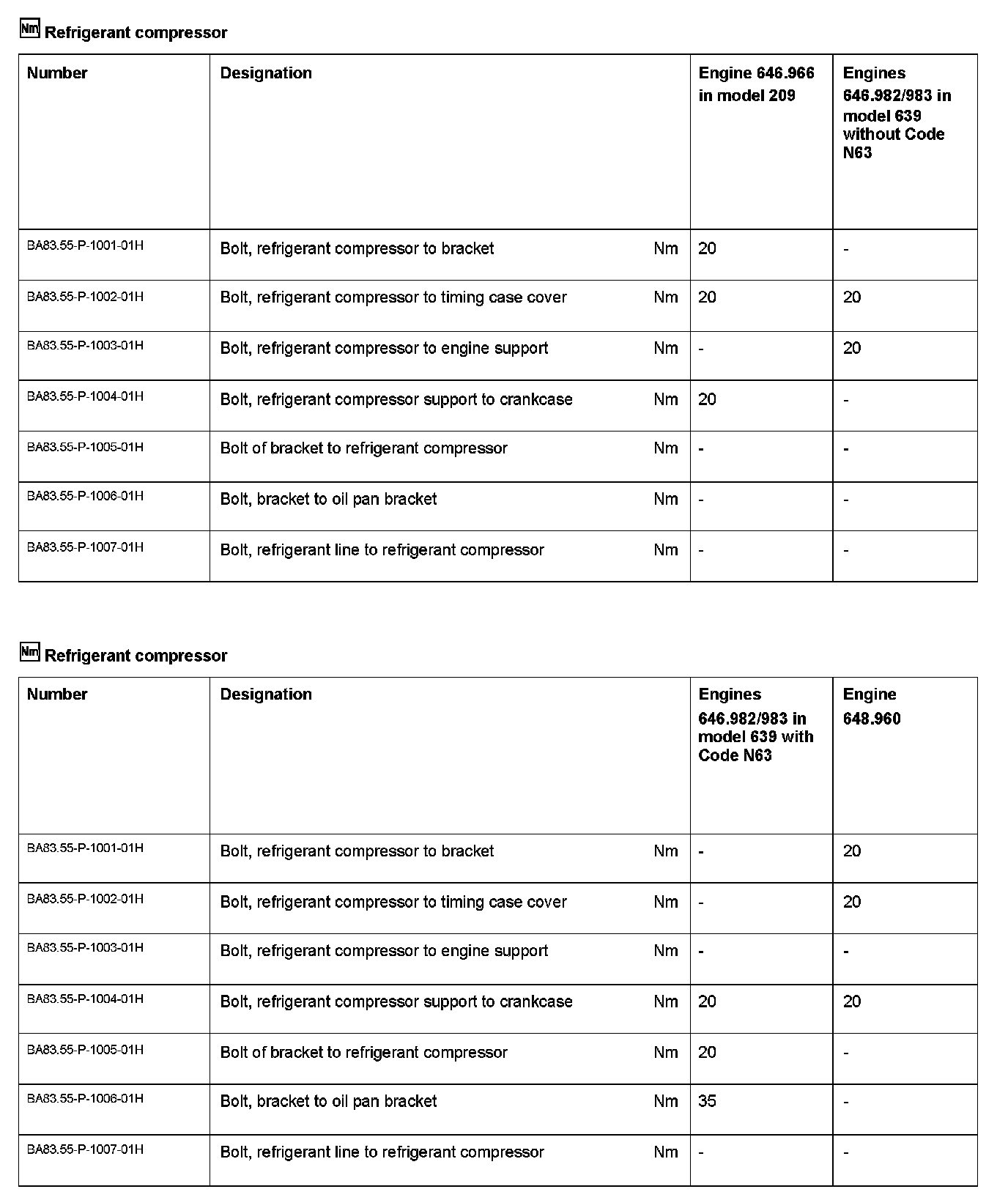

Refrigerant Compressor:

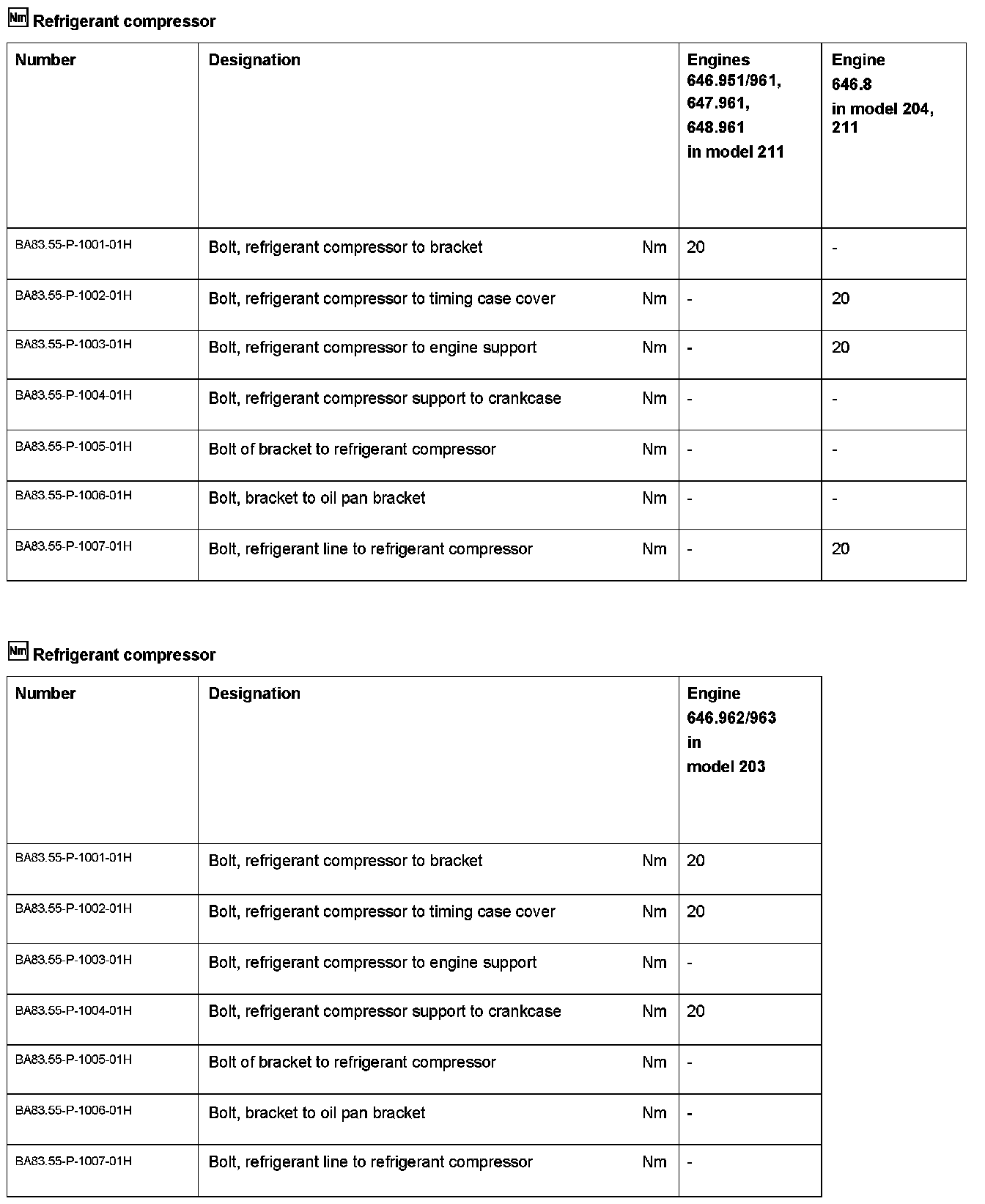

Refrigerant Compressor:
