E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Flex Plate
Flex Plate

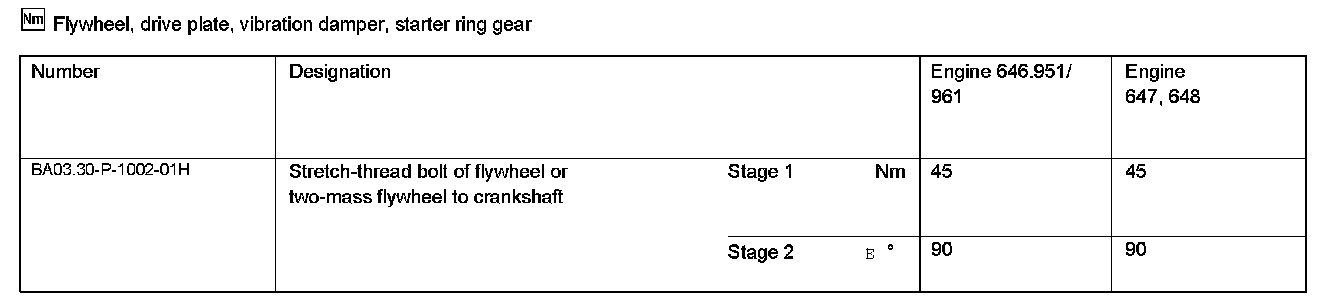

Flywheel, Drive Plate, Vibration Damper, Starter Ring Gear:
