Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Automatic Transmission/Transaxle >> System Specifications >> BE27.51-P-1000-01C Multi-Disk Clutch

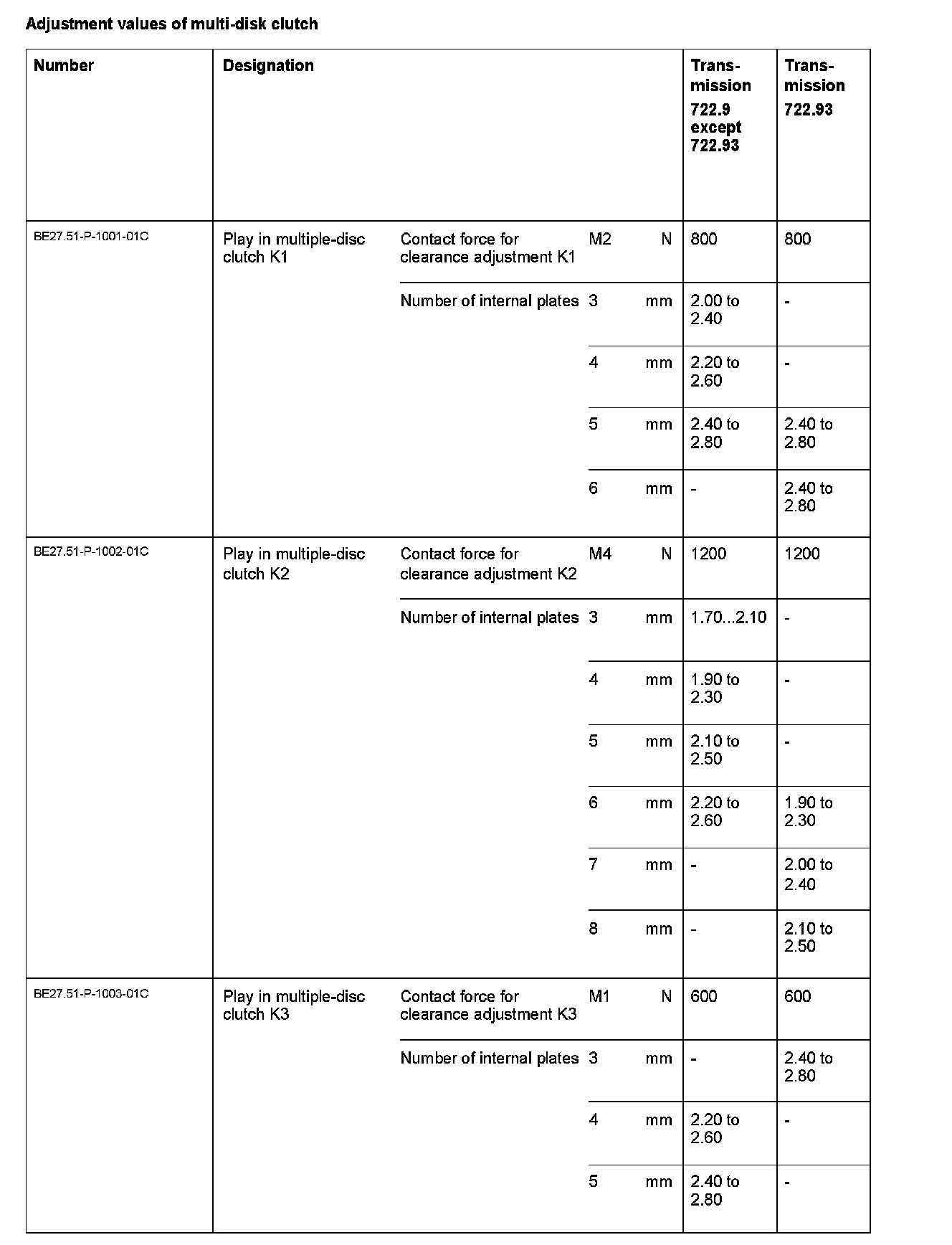

BE27.51-P-1000-01C Multi-Disk Clutch



BE27.51-P-1000-01C Multi-disk Clutch
Transmission 722.9
