E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Specifications
>>
Mechanical Specifications
>>
Alignment
>>
BE40.20-P-1000-09T Rear Axle Camber
BE40.20-P-1000-09T Rear Axle Camber
BE40.20-P-1000-09T Rear axle camber

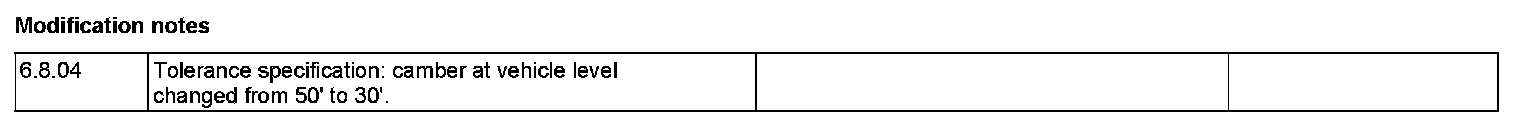

Modification Notes:

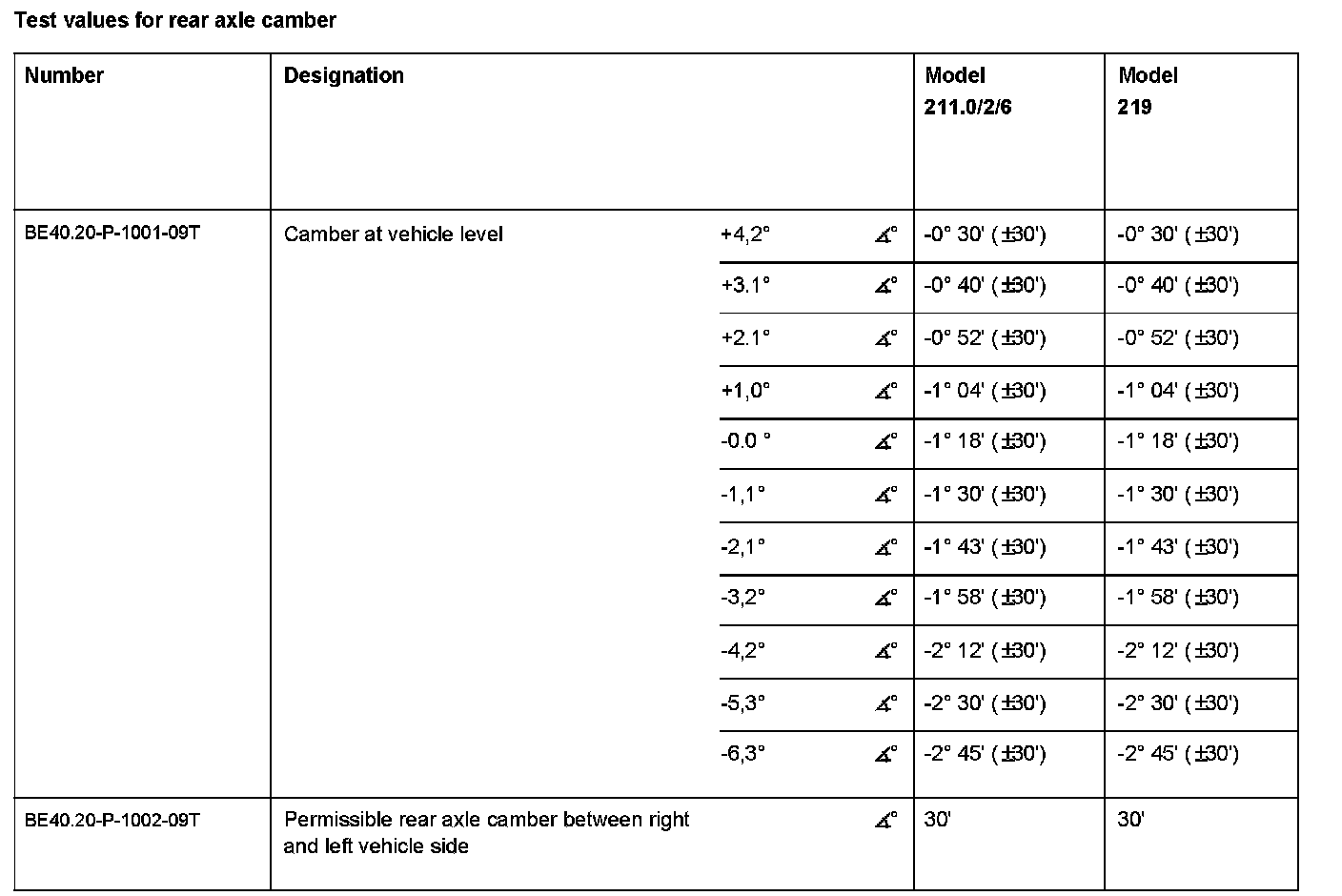

Test Values For Rear Axle Camber:
