Home
>>
Mercedes Benz
>>
2006
>>
E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Sensors and Switches
>>
Sensors and Switches - Restraints and Safety Systems
>>
Seat Occupant Sensor
>>
Locations
>>

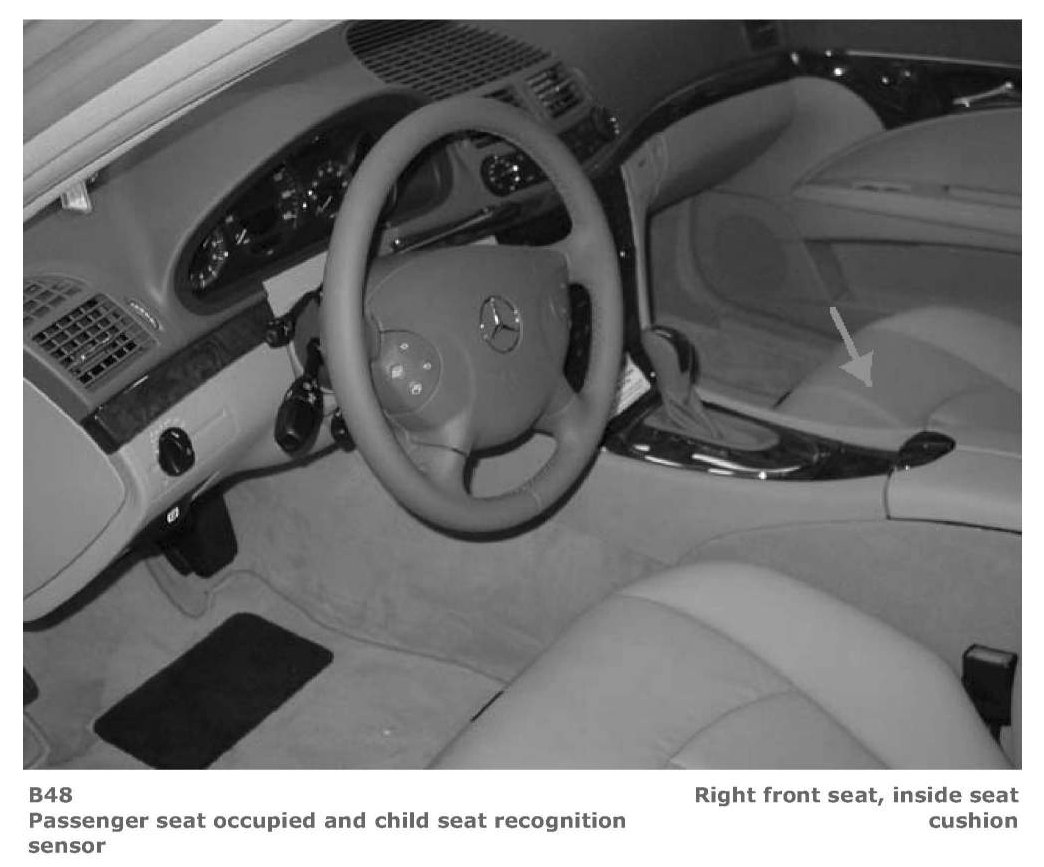

Passenger Seat Occupied and Child Seat Recognition Sensor
Passenger Seat Occupied and Child Seat Recognition Sensor
Passenger Seat Occupied And Child Seat Recognition Sensor:
