Fuel Pressure Sensor/Switch: Service and Repair



AR07.16-P-1055T Remove/Install Rail Pressure Sensor

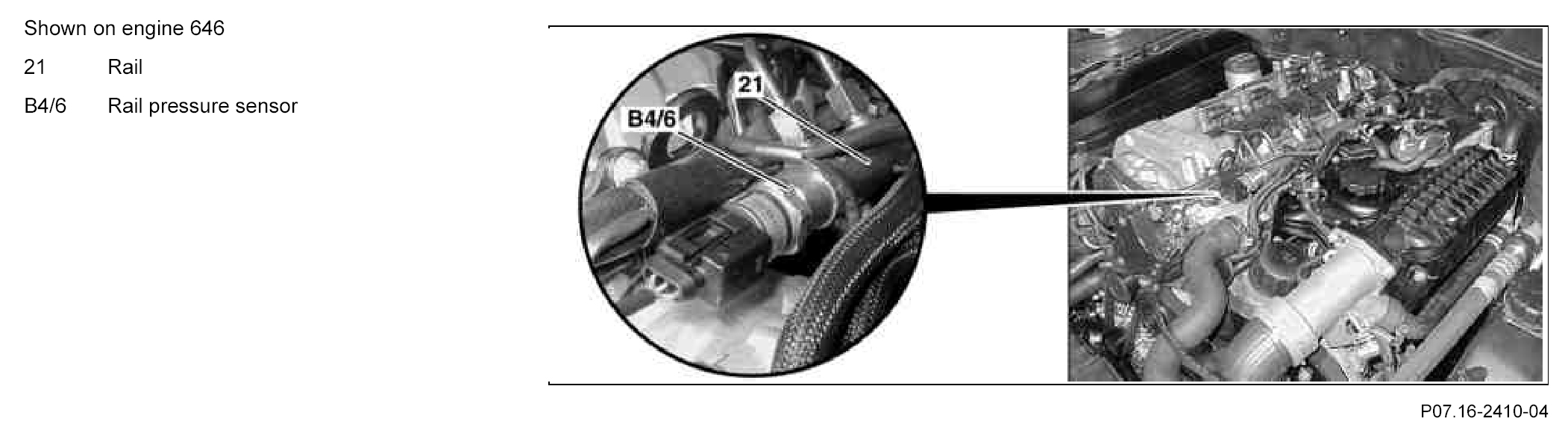

Component Identification:

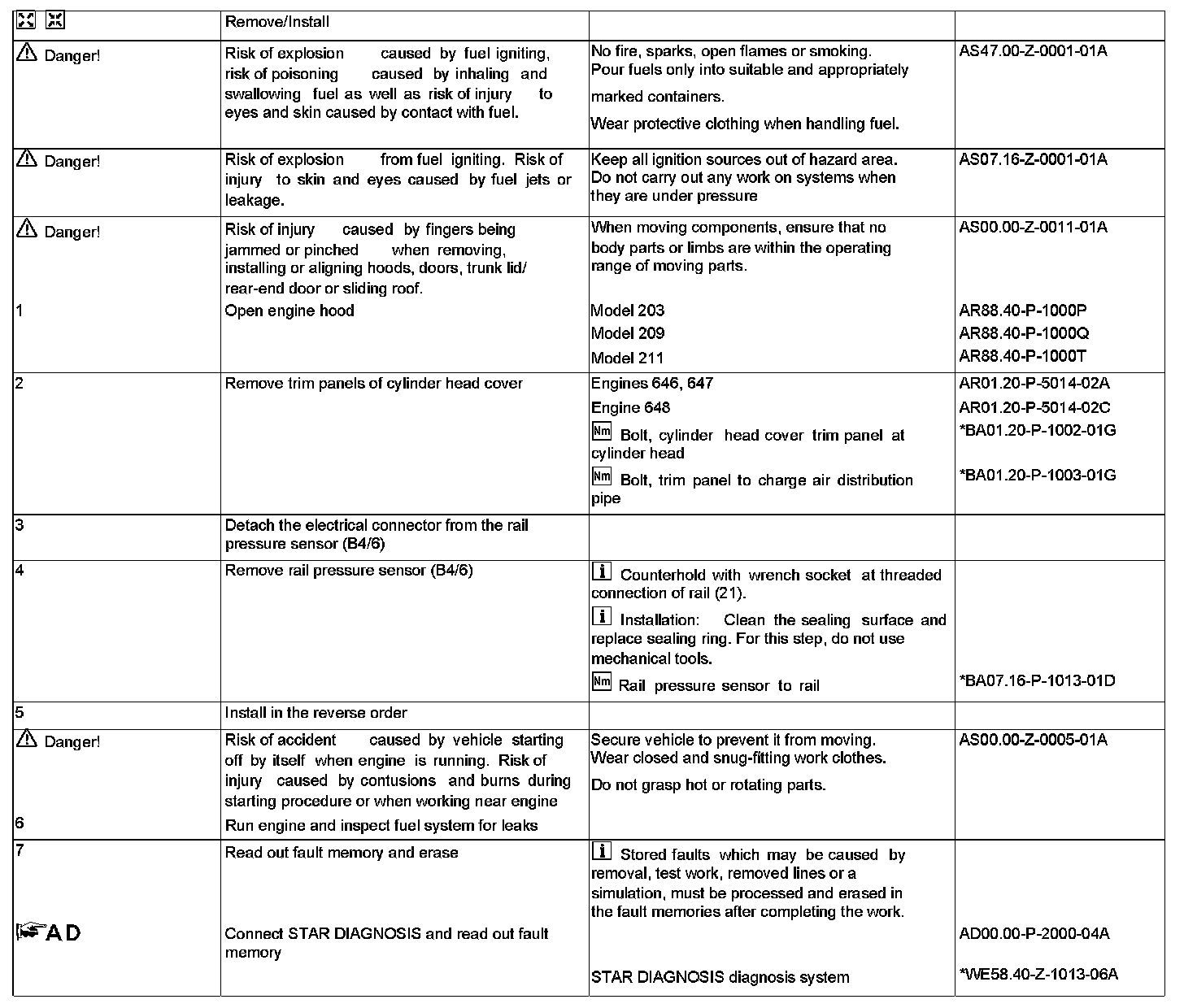

Steps 1 - 7:

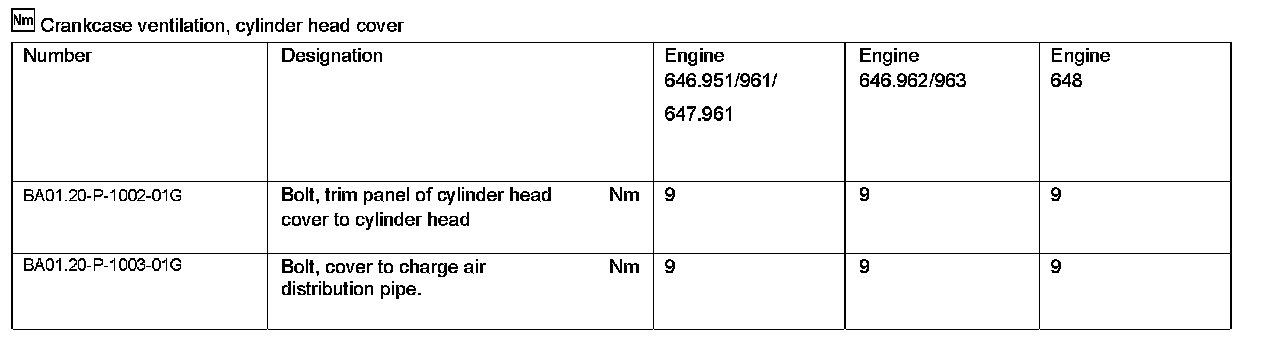

Crankcase Ventilation, Cylinder Head Cover:

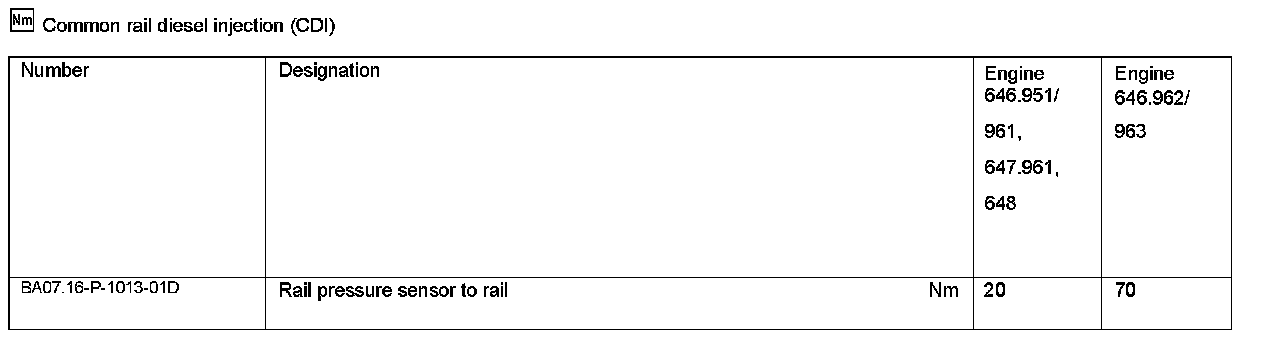

Common Rail Diesel Injection (CDI):
