Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Brakes and Traction Control >> Lateral Accelerometer >> Service and Repair >> Removal and Replacement >> AR42.45-P-0841EW Remove/Install Yaw Rate and Lateral Acceleration Sensor

AR42.45-P-0841EW Remove/Install Yaw Rate and Lateral Acceleration Sensor



AR42.45-P-0841EW Remove/install yaw rate and lateral acceleration sensor

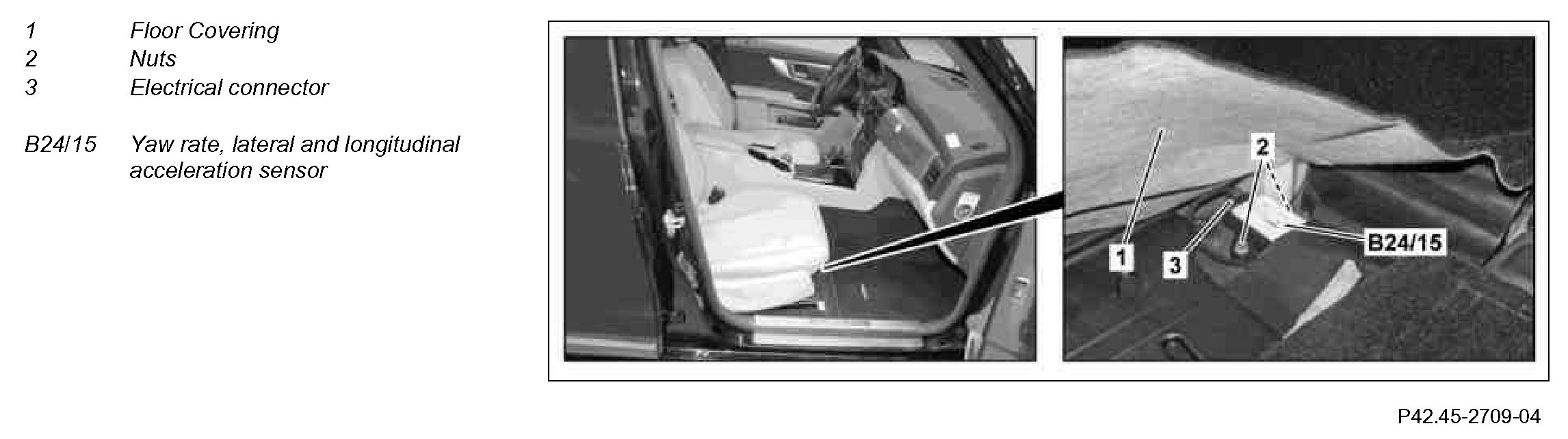

Component Identification:

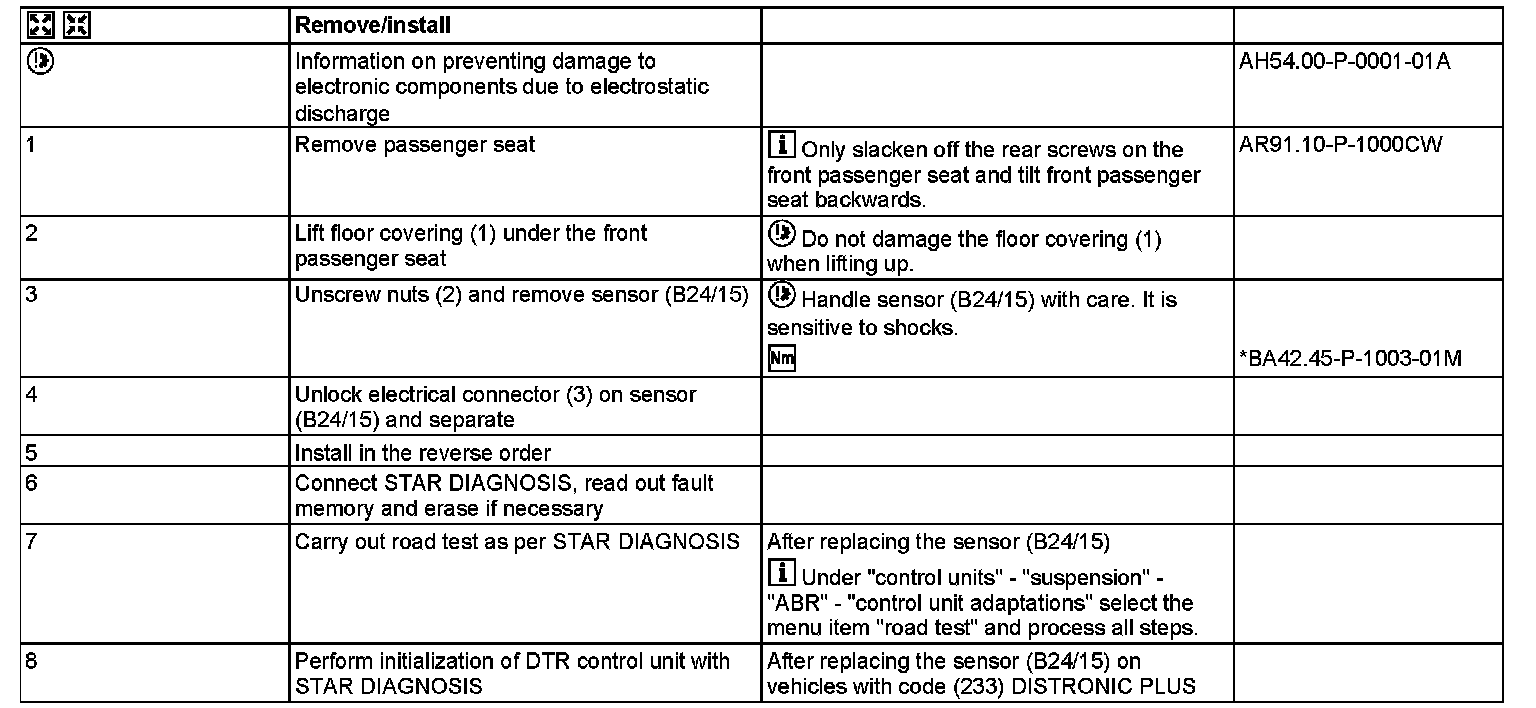

Steps 1-8:

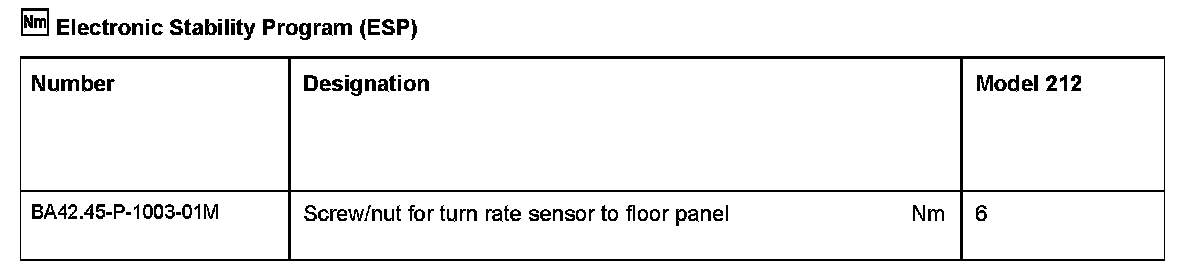

Electronic Stability Program (ESP):
