Mercedes Benz
>>
2006
>>
E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Sensors and Switches - Restraints and Safety Systems
>>
Impact Sensor
>>
Locations
>>
Passenger-Side Frontal Acceleration Sensor
Passenger-Side Frontal Acceleration Sensor

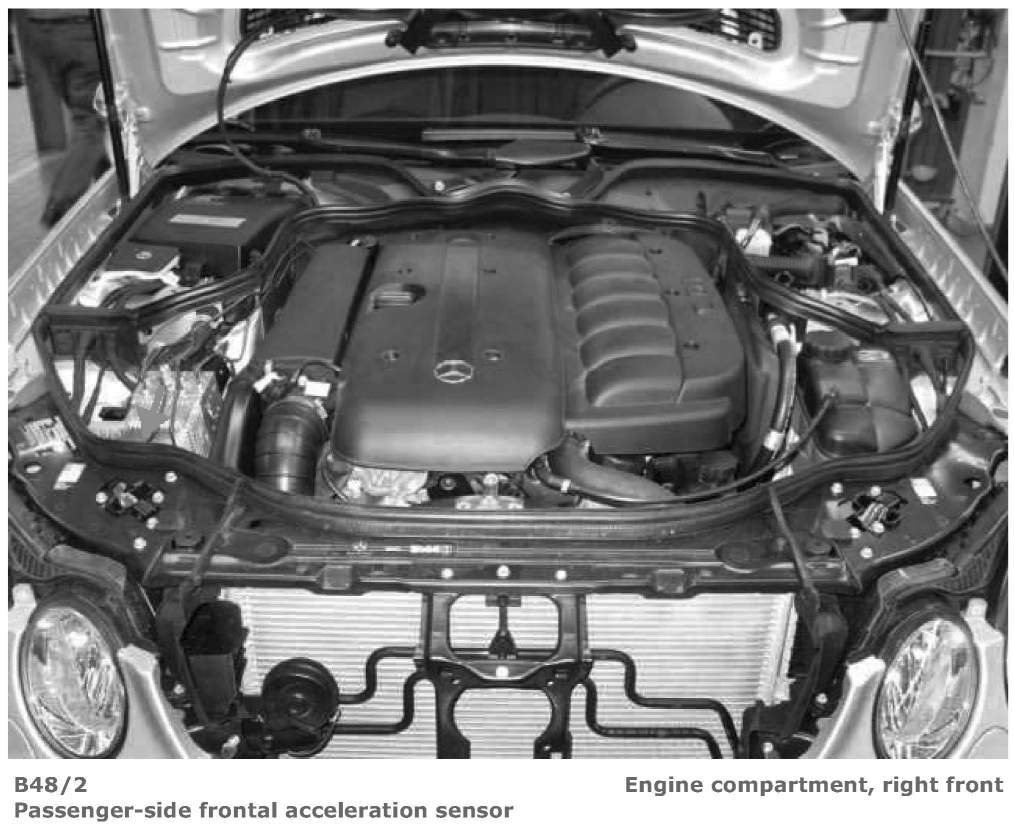

Passenger-side Frontal Acceleration Sensor (View 1):

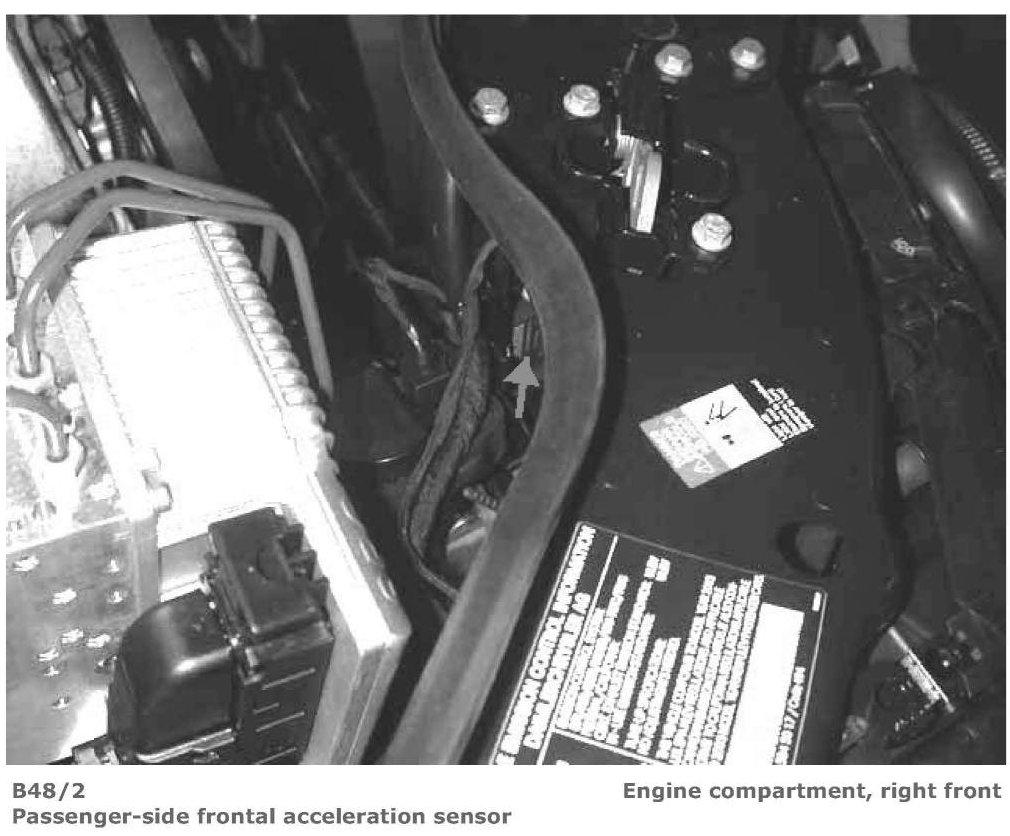

Passenger-side Frontal Acceleration Sensor (View 2):
