Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Seat Belt Tensioner >> Description and Operation >> GF91.40-P-4000T Front Emergency Tensioning Retractor, Location/Task/Design/Function

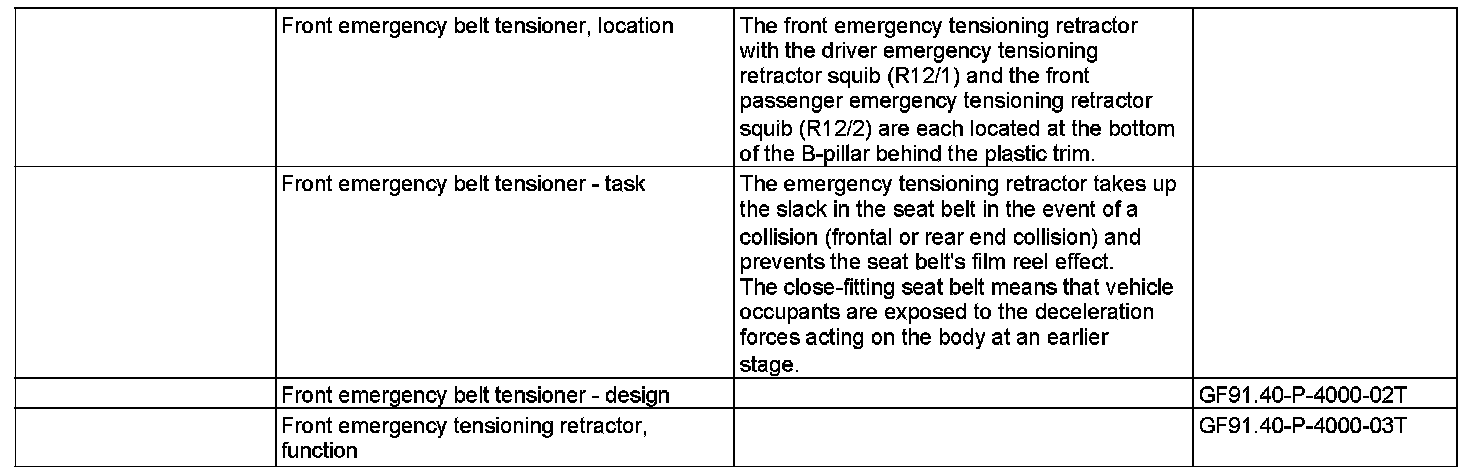

GF91.40-P-4000T Front Emergency Tensioning Retractor, Location/Task/Design/Function



GF91.40-P-4000T Front Emergency Tensioning Retractor, Location/Task/Design/Function
- up to 31.5.06
- except CODE (494) USA version
- except CODE (498) Japan version
- up to 30.6.06
- with CODE (494) USA version
- with CODE (498) Japan version

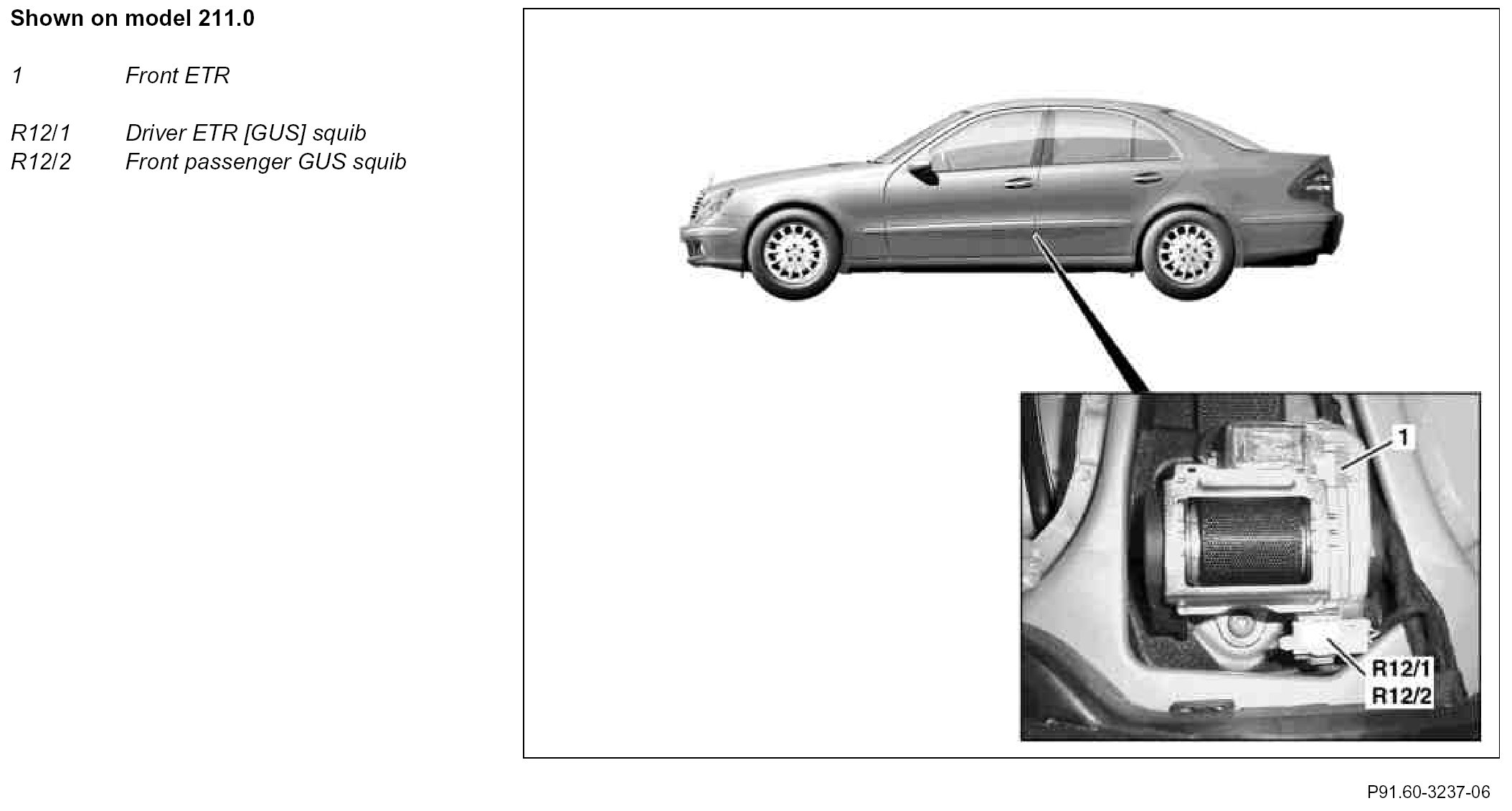

Component Identification:
