AR07.08-P-7008T Remove/Install Injection System Control Unit



AR07.08-P-7008T Remove/Install Injection System Control Unit

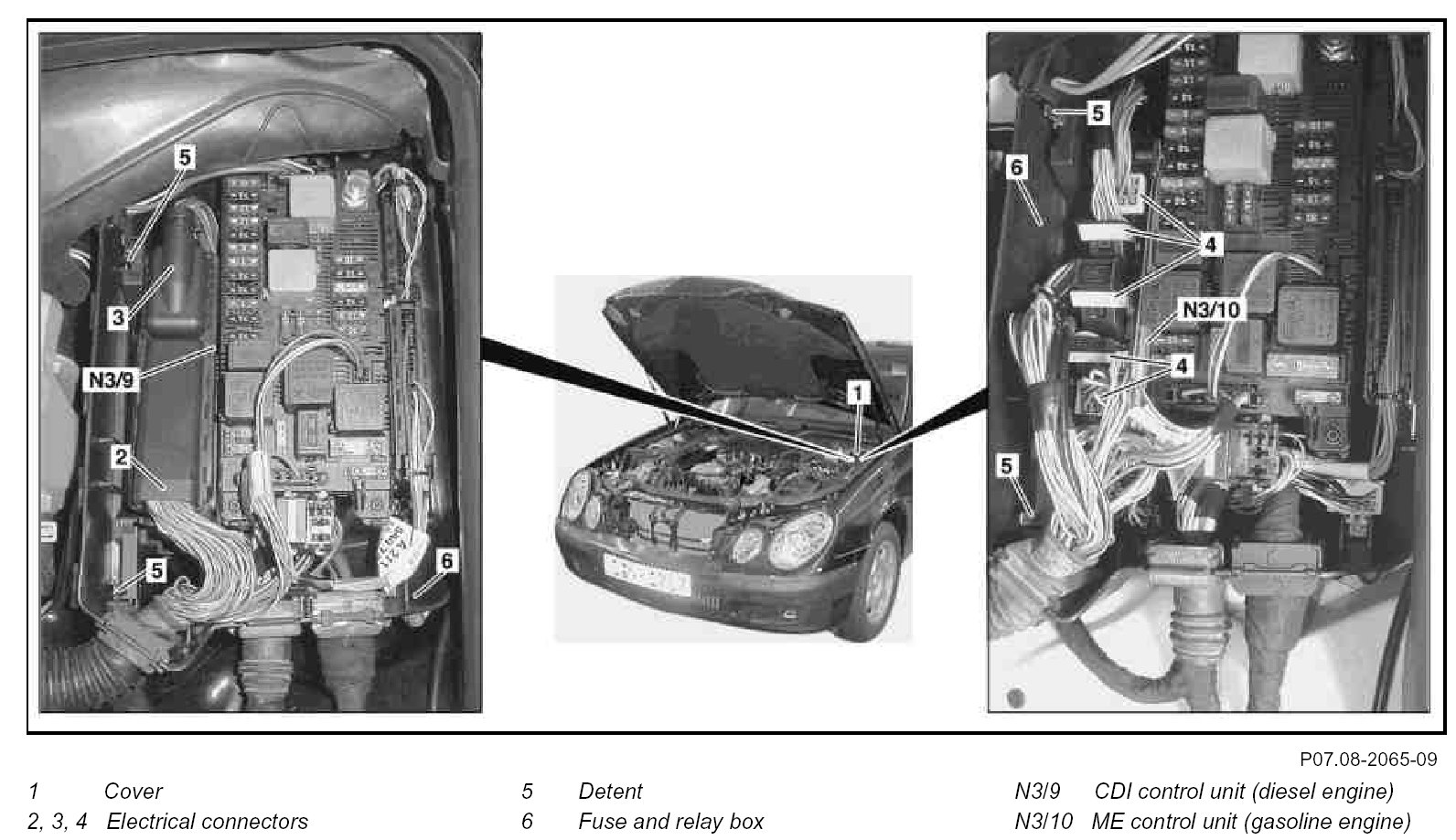

Component Identification:




Modification Notes:

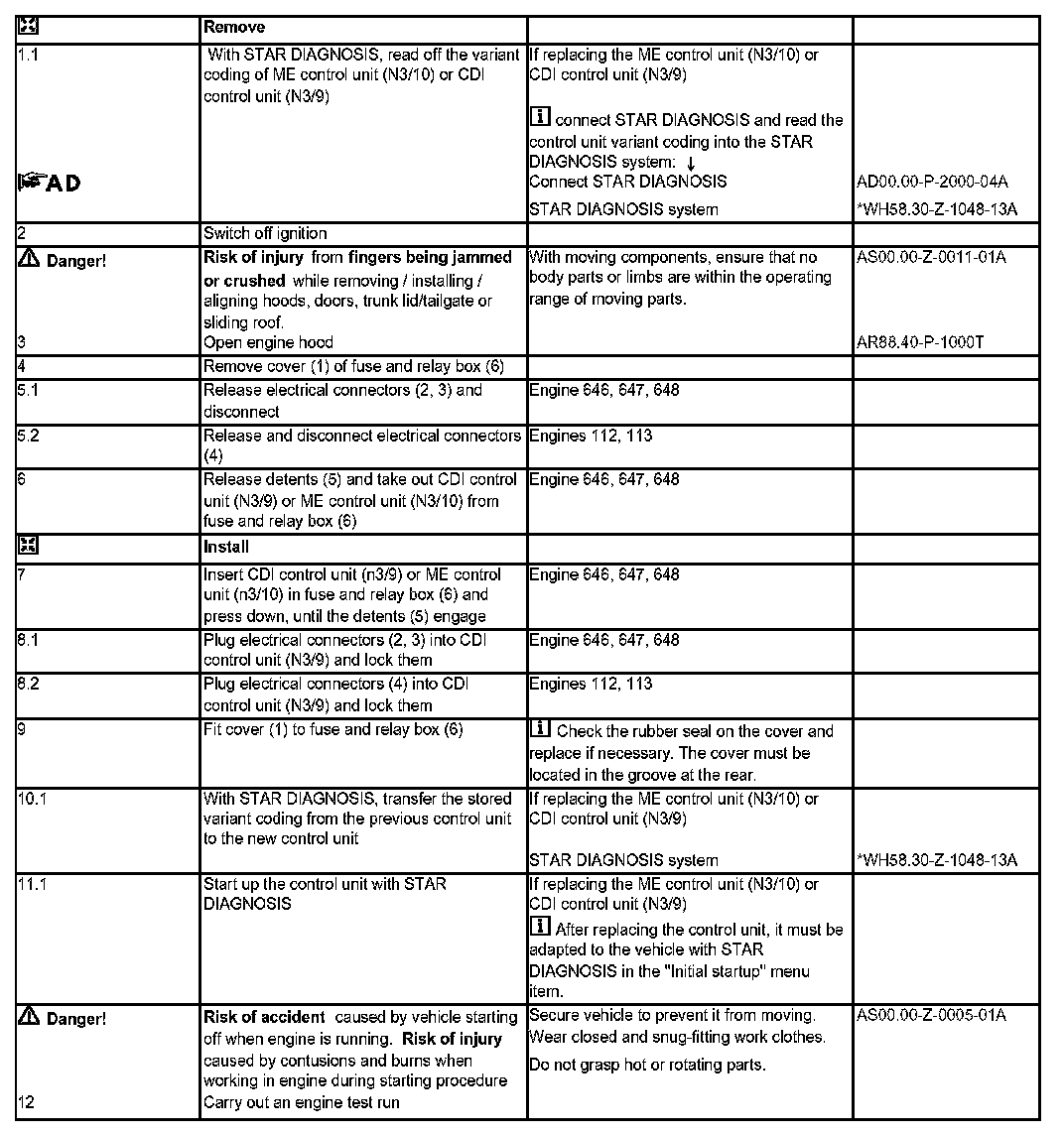

Steps 1.1 - 12:




Commercially Available Tools:
