AR01.00-P-1300-01HB Connect Cylinder Leakage Testing Unit

AR01.00-P-1300-01HB Connect cylinder leakage testing unit

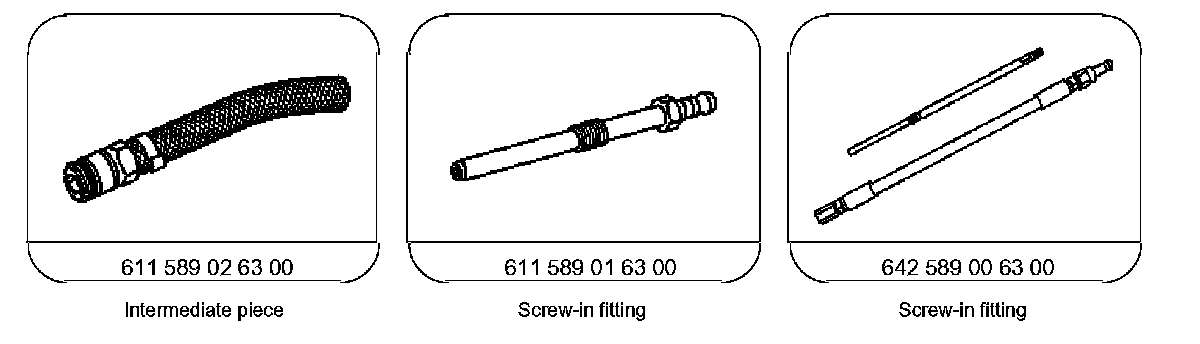

Special Tools:

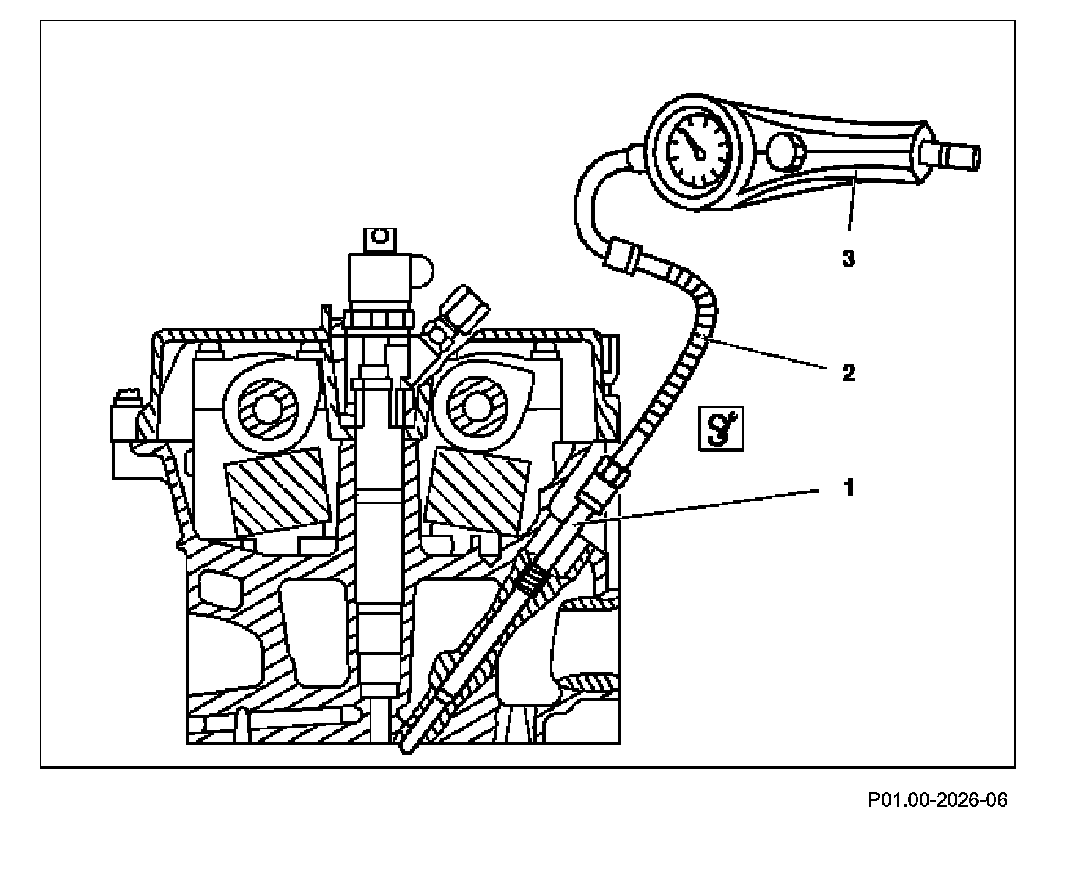

Component Identification:

Only use a suitably approved screw in fitting (1) for respective engine.

1 Remove check valve from the

screw-in fitting (1).

2 Screw screw-in fitting (1) into spark plug hole

Screw-in piece 611 589 01 63 00 (except engine 642, 646.8, 651)

Screw-in piece 642 589 00 63 00 (engine 642, 646.8, 651)

3 Attach intermediate piece (2) to screw-in fitting (1).
4 Attach cylinder leakage tester (3) on intermediate piece (2).
