AR07.04-P-0007TA Remove/Install Exhaust Back Pressure Sensor



AR07.04-P-0007TA Remove/Install Exhaust Back Pressure Sensor
- with CODE (474) Particulate filter

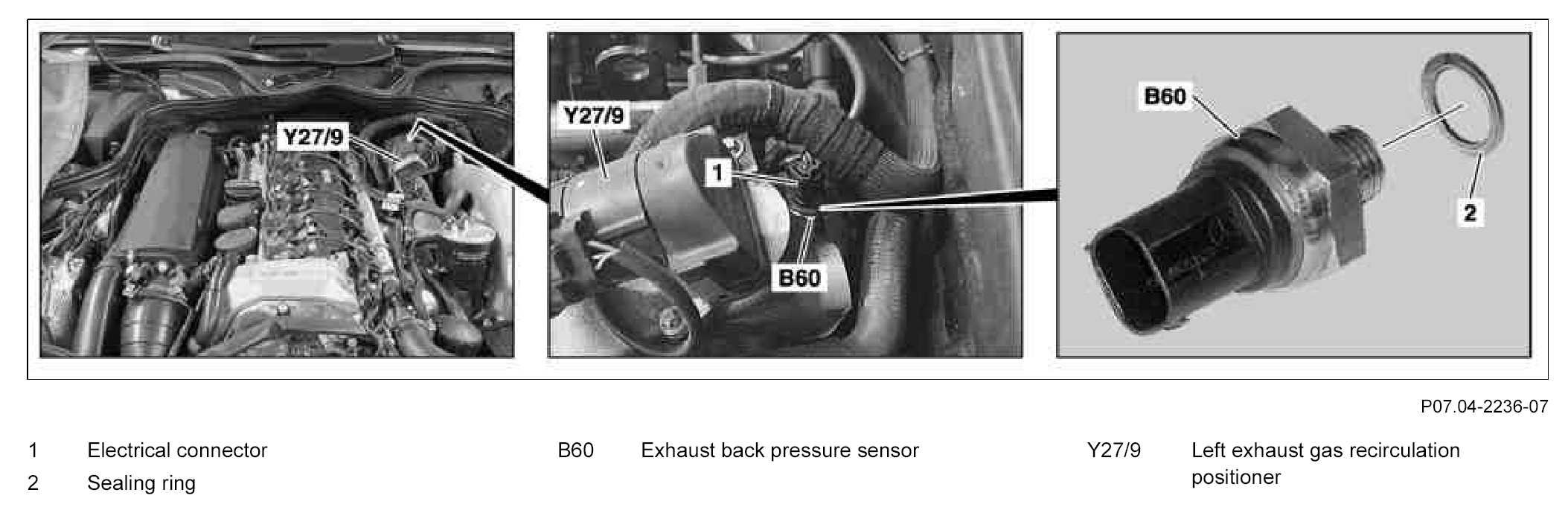

Component Identification:

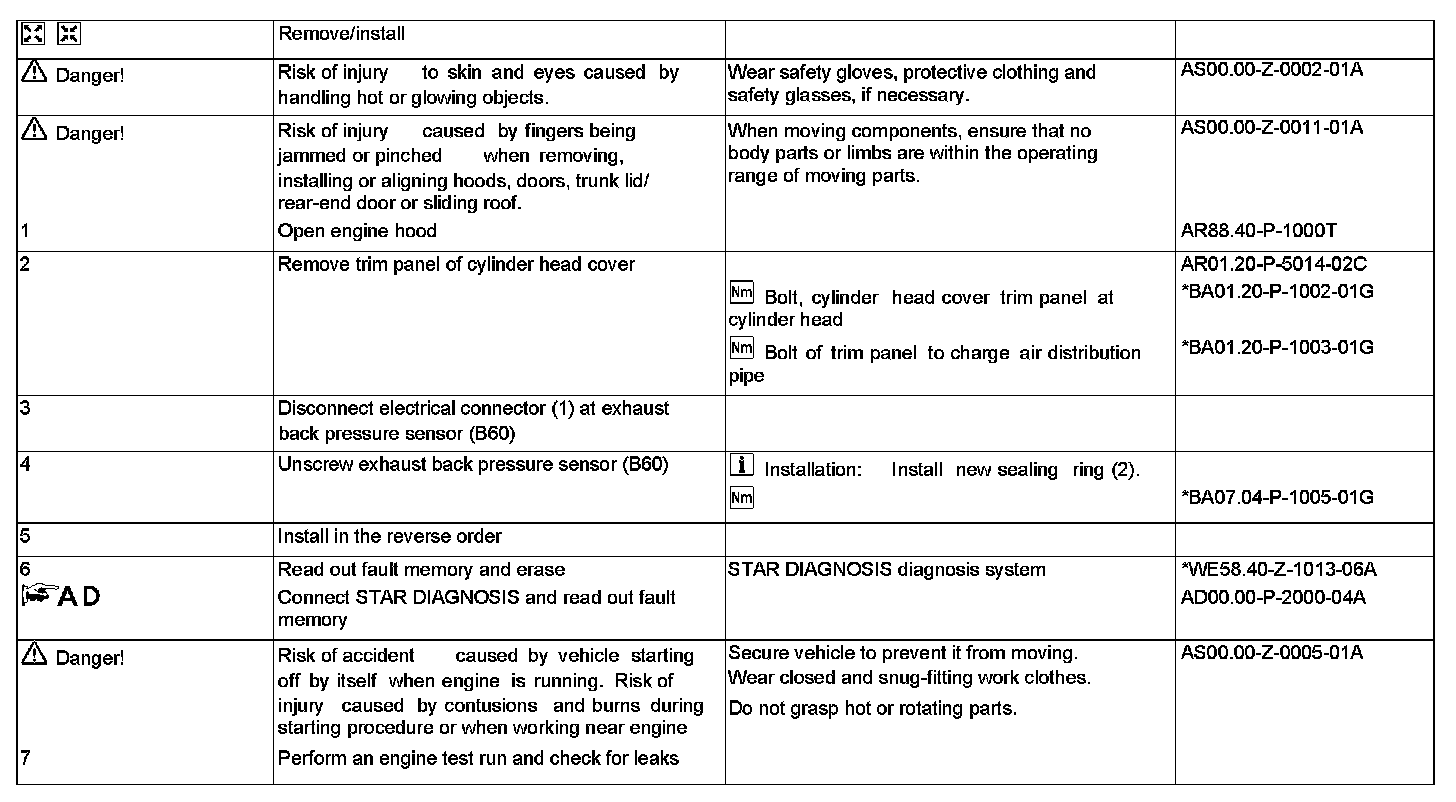

Steps 1 - 7:

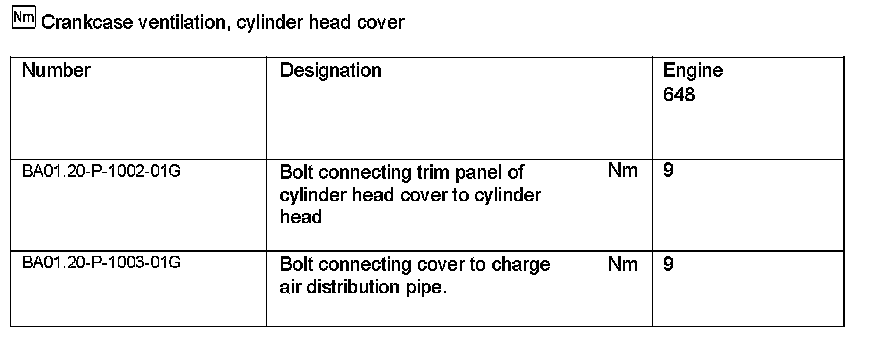

Crankcase Ventilation, Cylinder Head Cover:

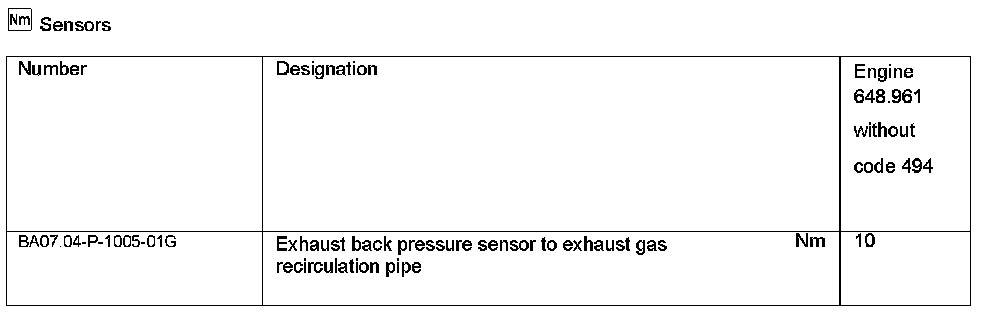

Sensors:
