AR07.04-P-0006TA Remove/Install Pressure Differential Sensor



AR07.04-P-0006TA Remove/Install Pressure Differential Sensor

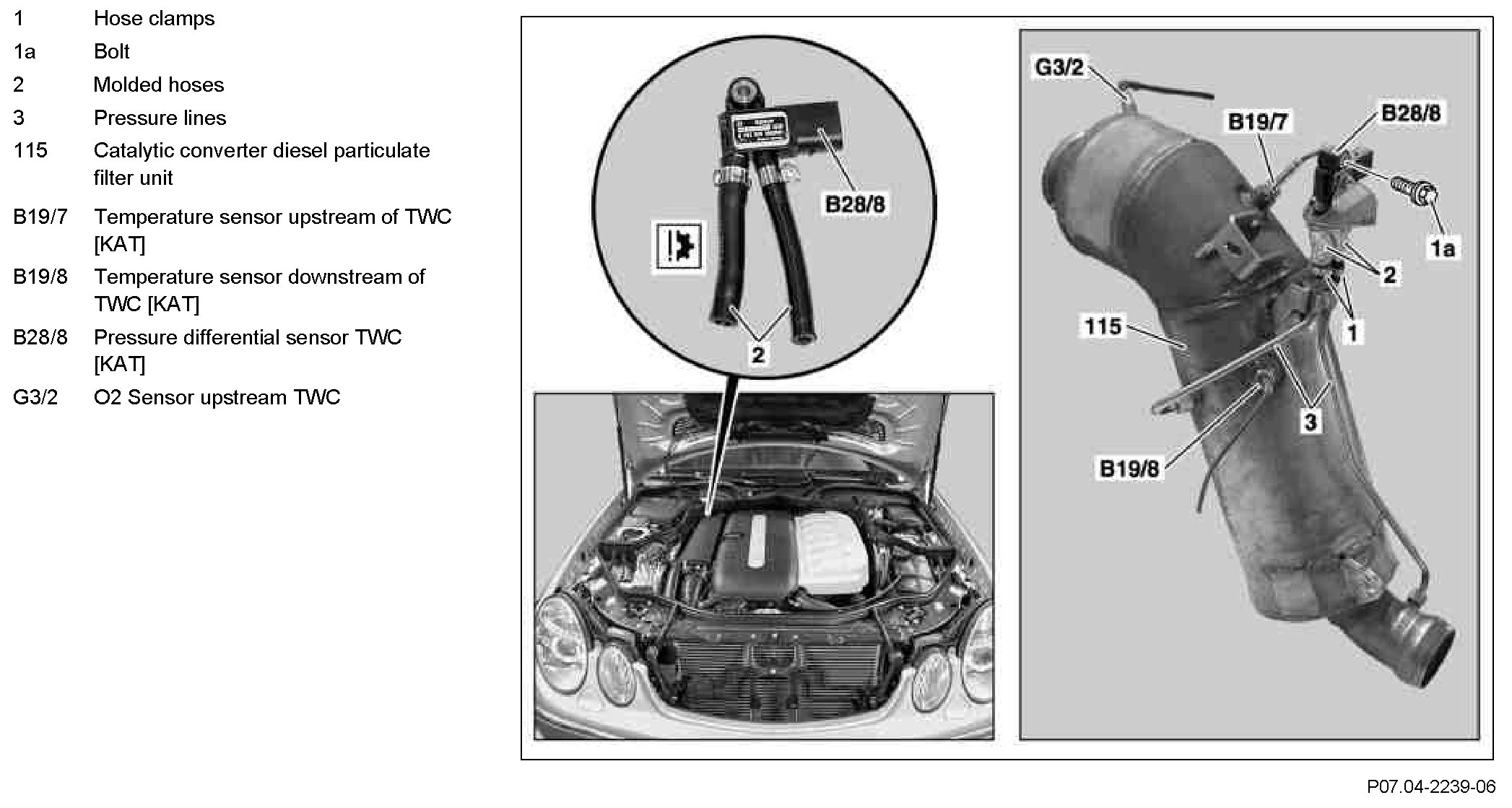

Component Identification:

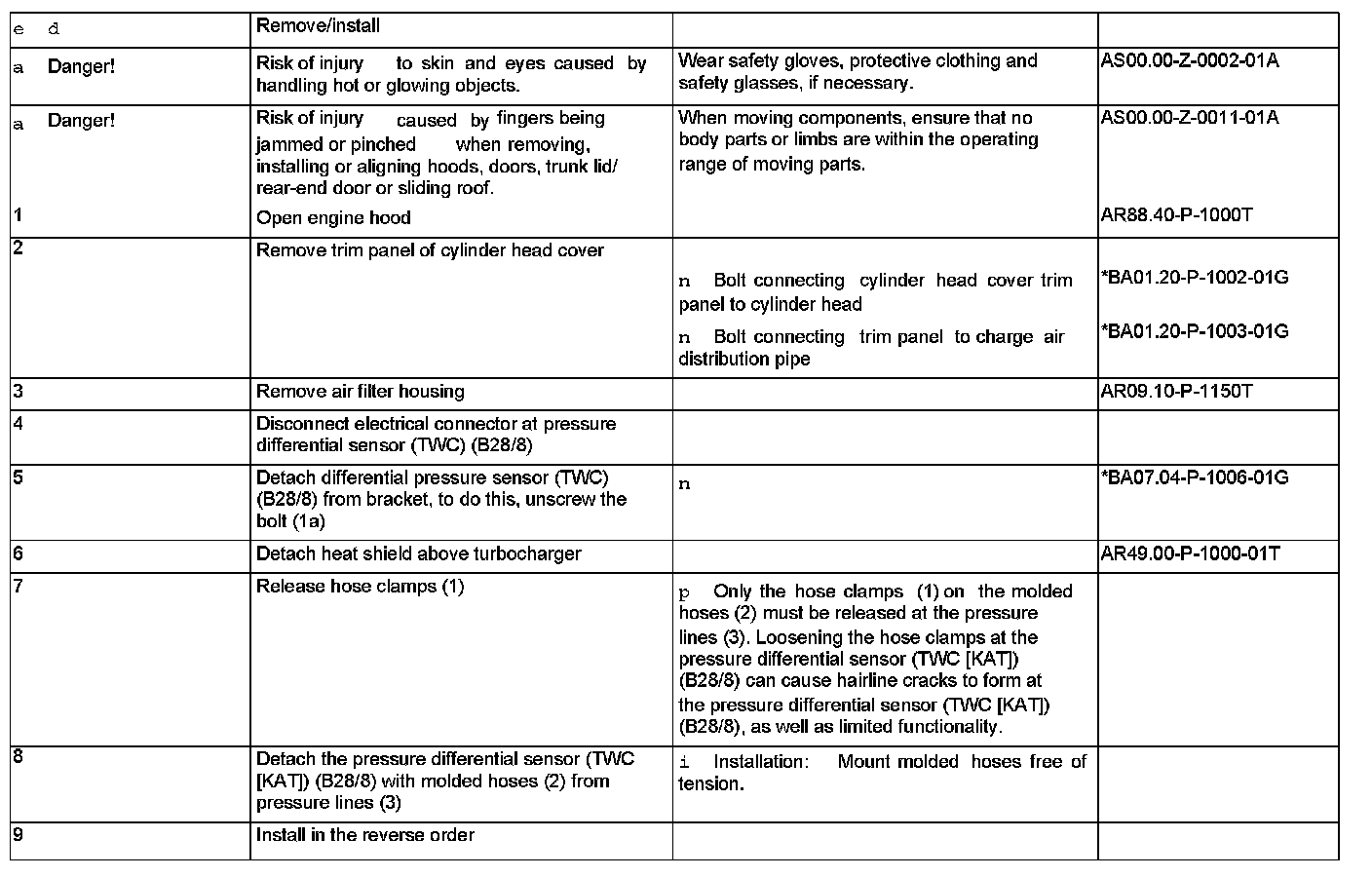

Steps 1 - 9:




Crankcase Ventilation, Cylinder Head Cover:

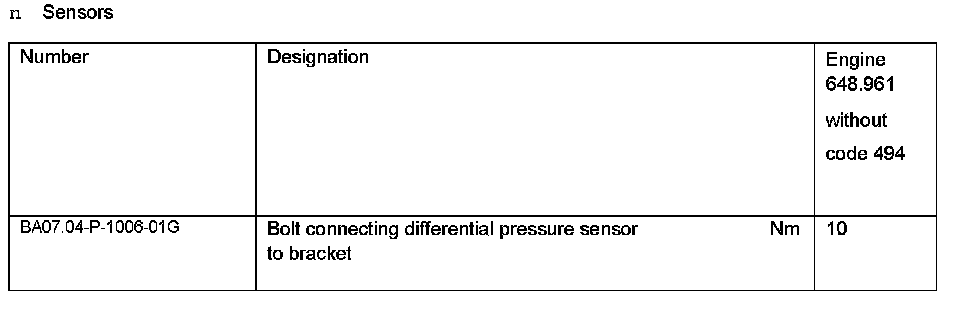

Sensors:
