AR15.20-P-4111T Removing/Installing Glow Plugs

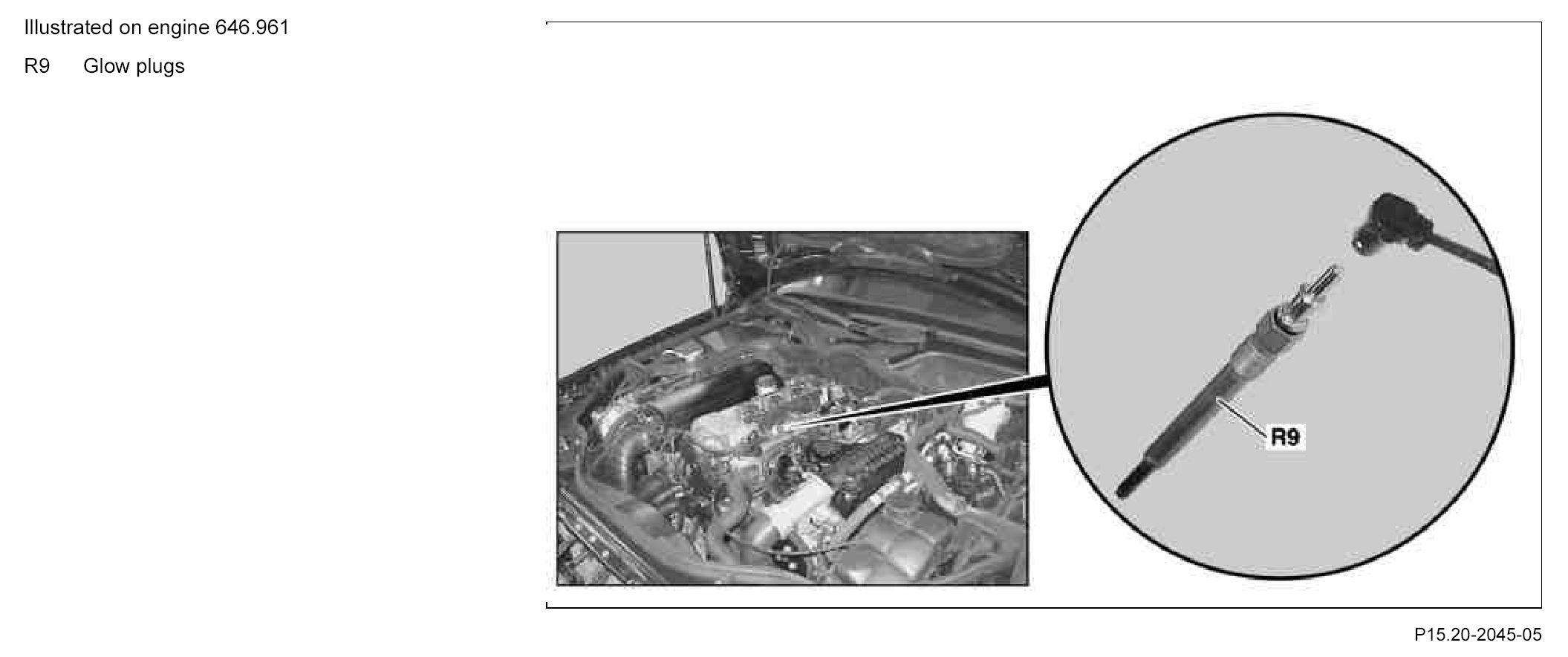

Component Identification:

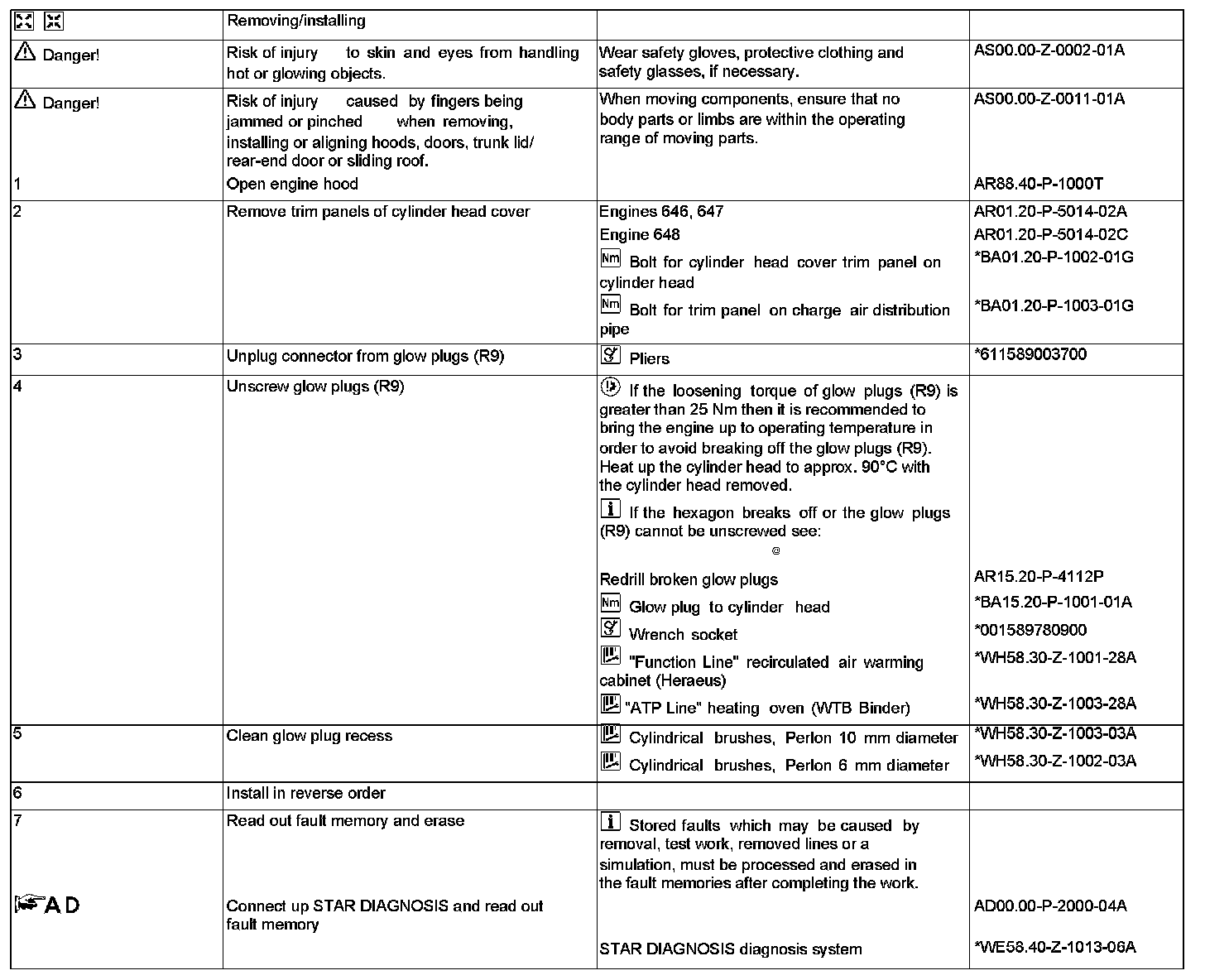

Steps 1 - 7:

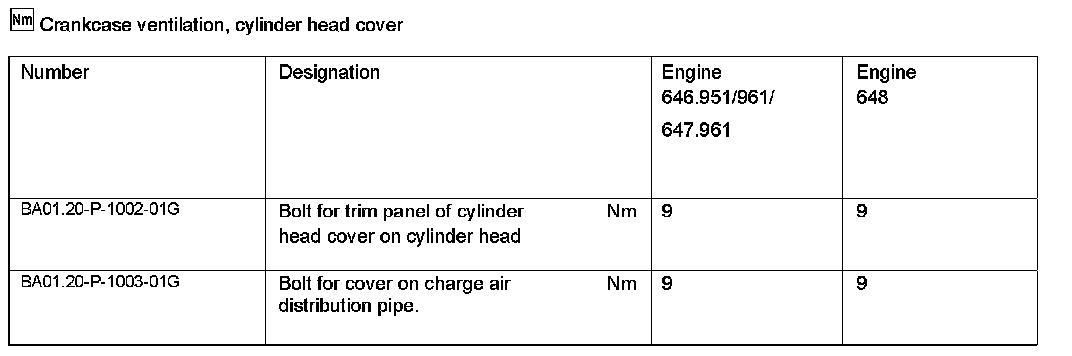

Crankcase Ventilation, Cylinder Head Cover:

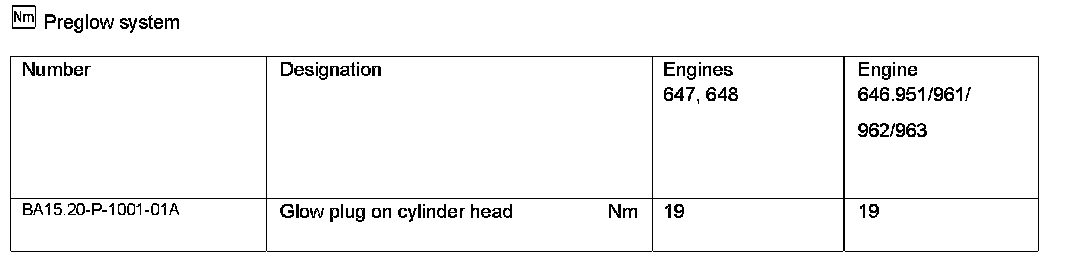

Preglow System:

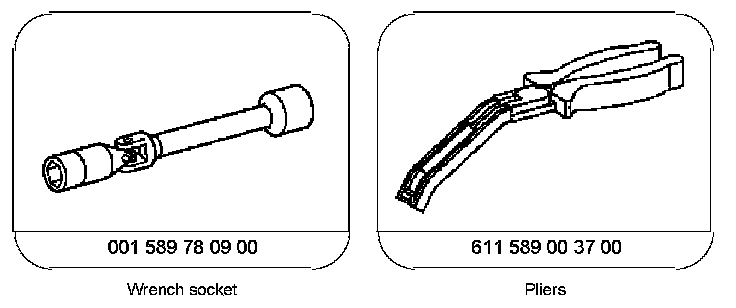

Special Tools:
