FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Glow Plug System
>>
Glow Plug
>>
Service and Repair
>>
Procedures
Procedures
AR15.20-P-4112P Redrill broken glow plugs
Component Identification:

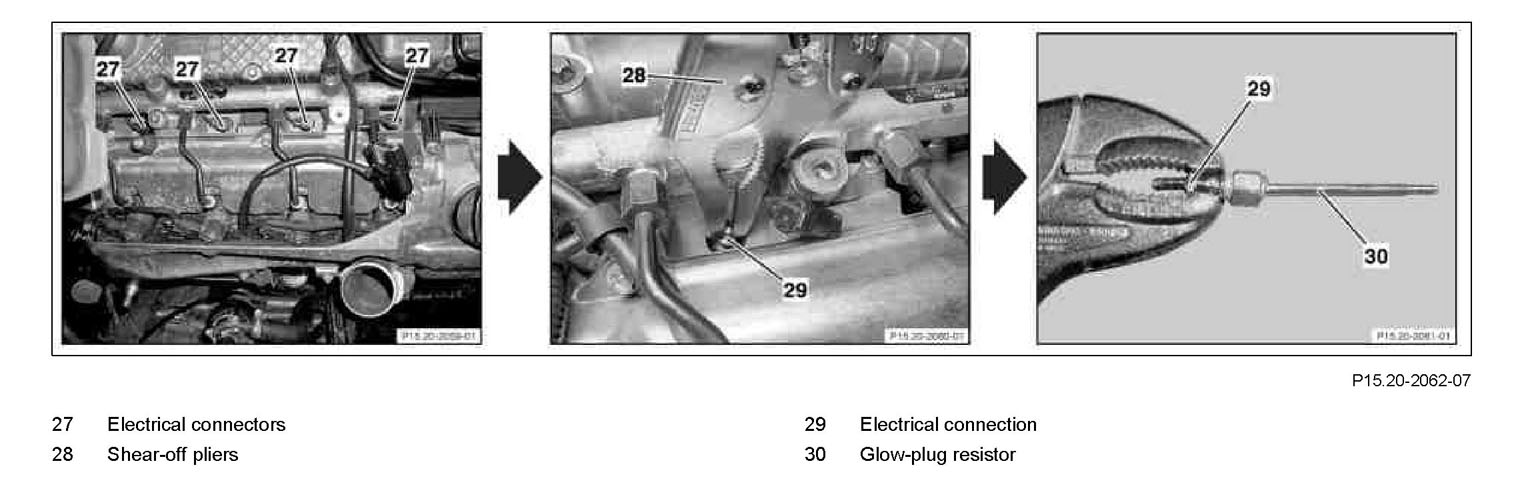

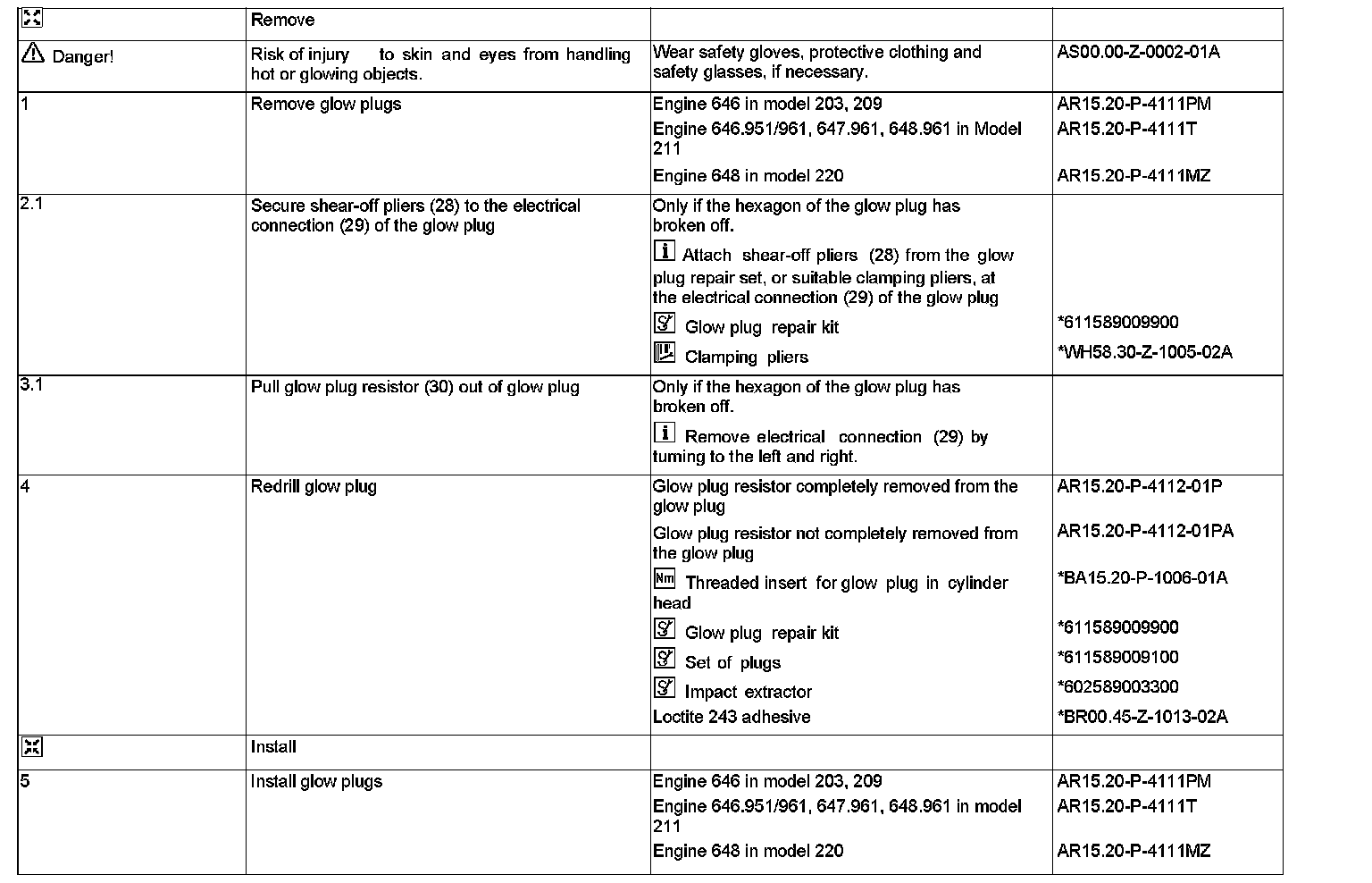

Steps 1-5:

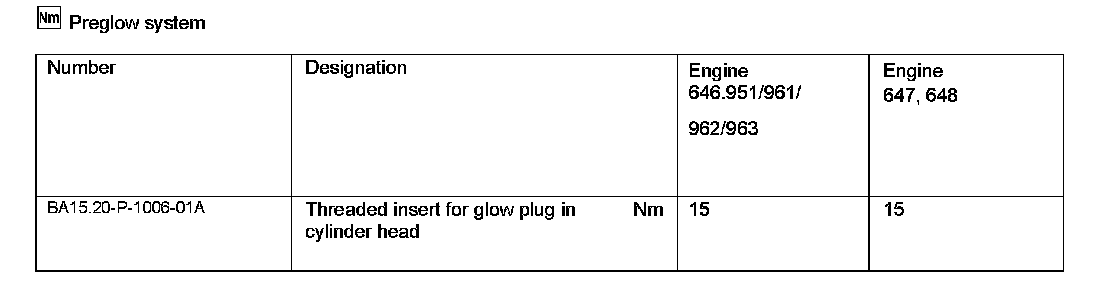

Preglow System:

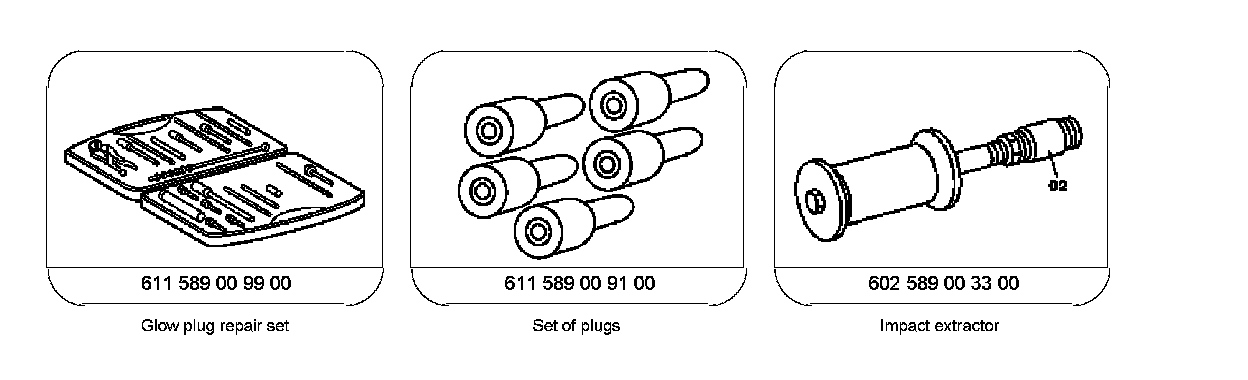

Special Tools:

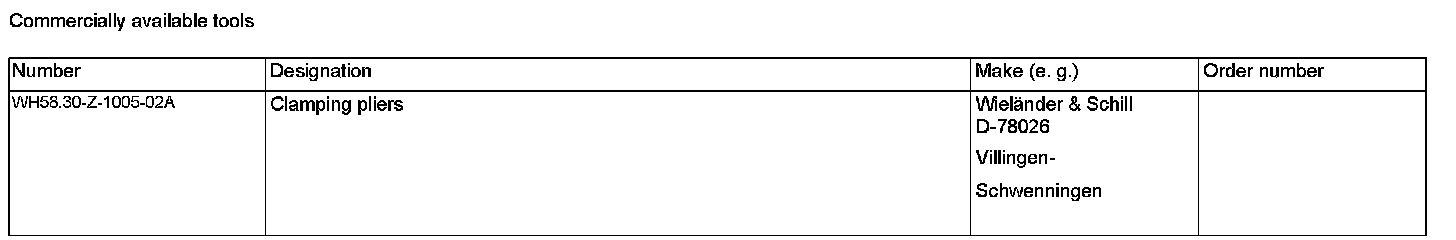

Commercially Available Tools:

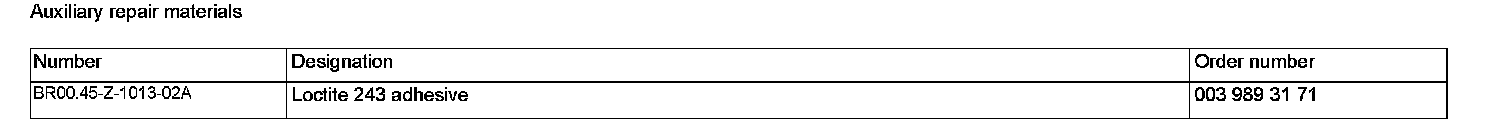

Auxiliary Repair Materials:
