Turbocharger: Service and Repair



AR09.40-P-6020T Remove/Install Turbocharger

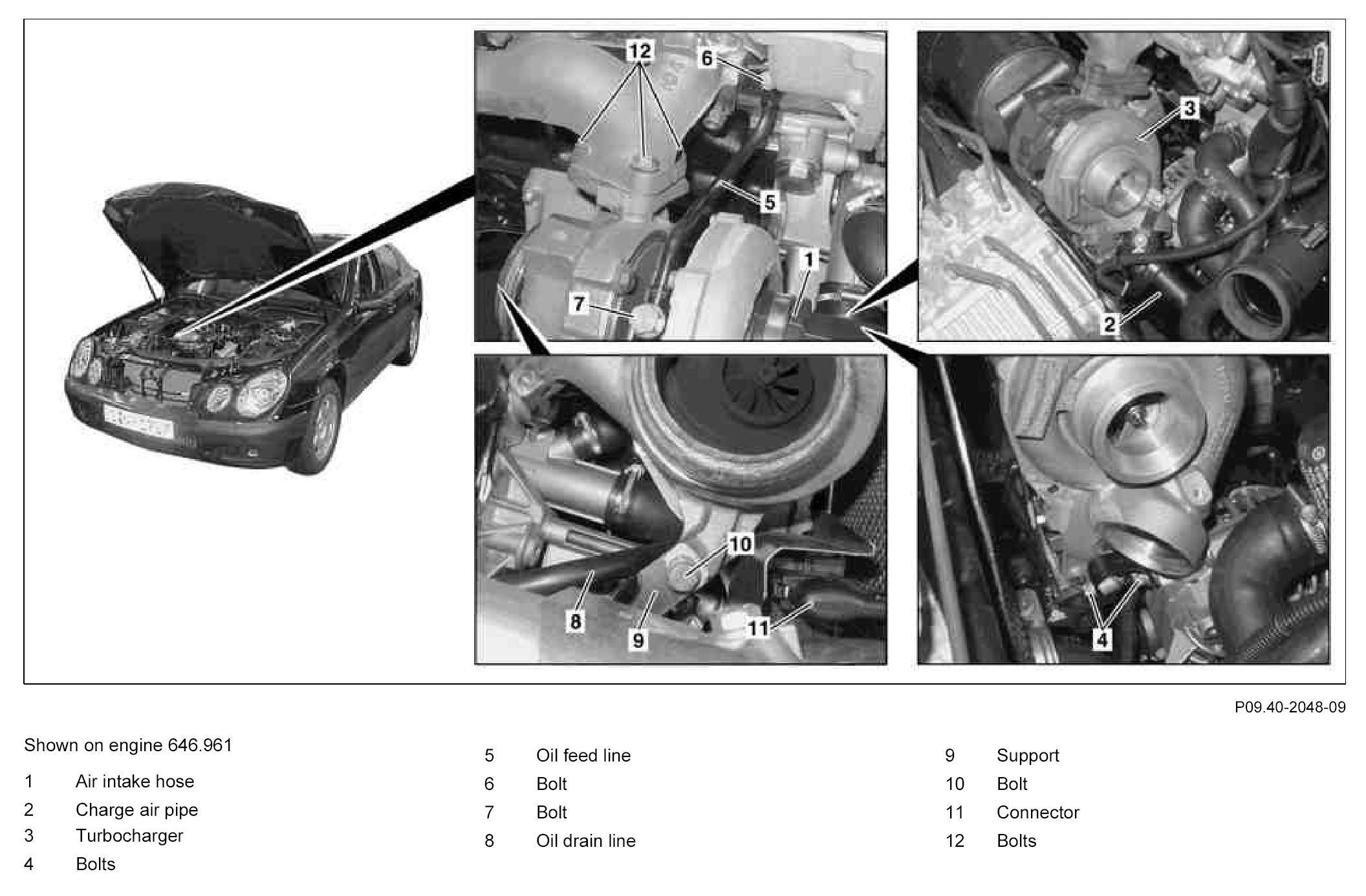

Component Identification:

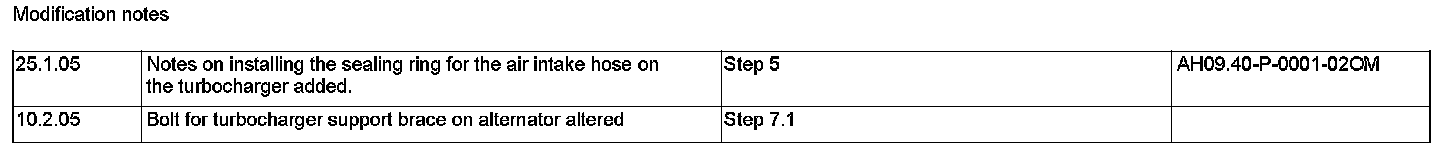

Modification Notes:

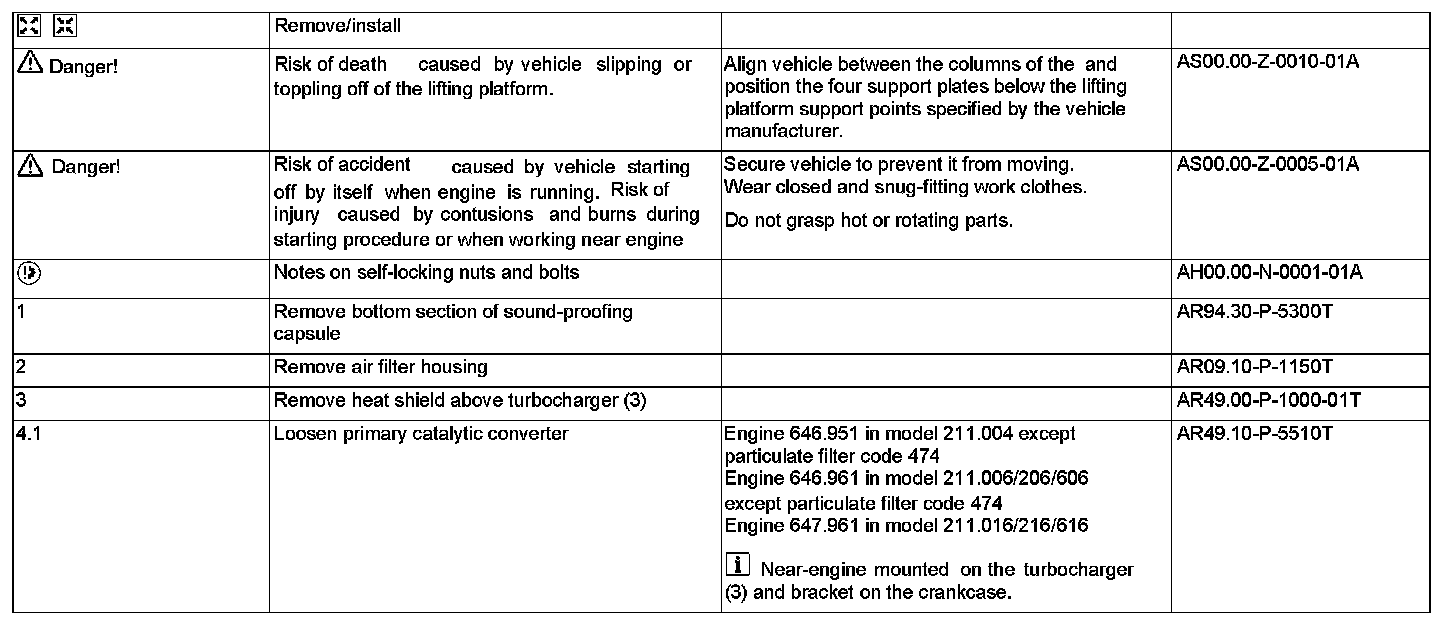

Steps 1 - 4.1:

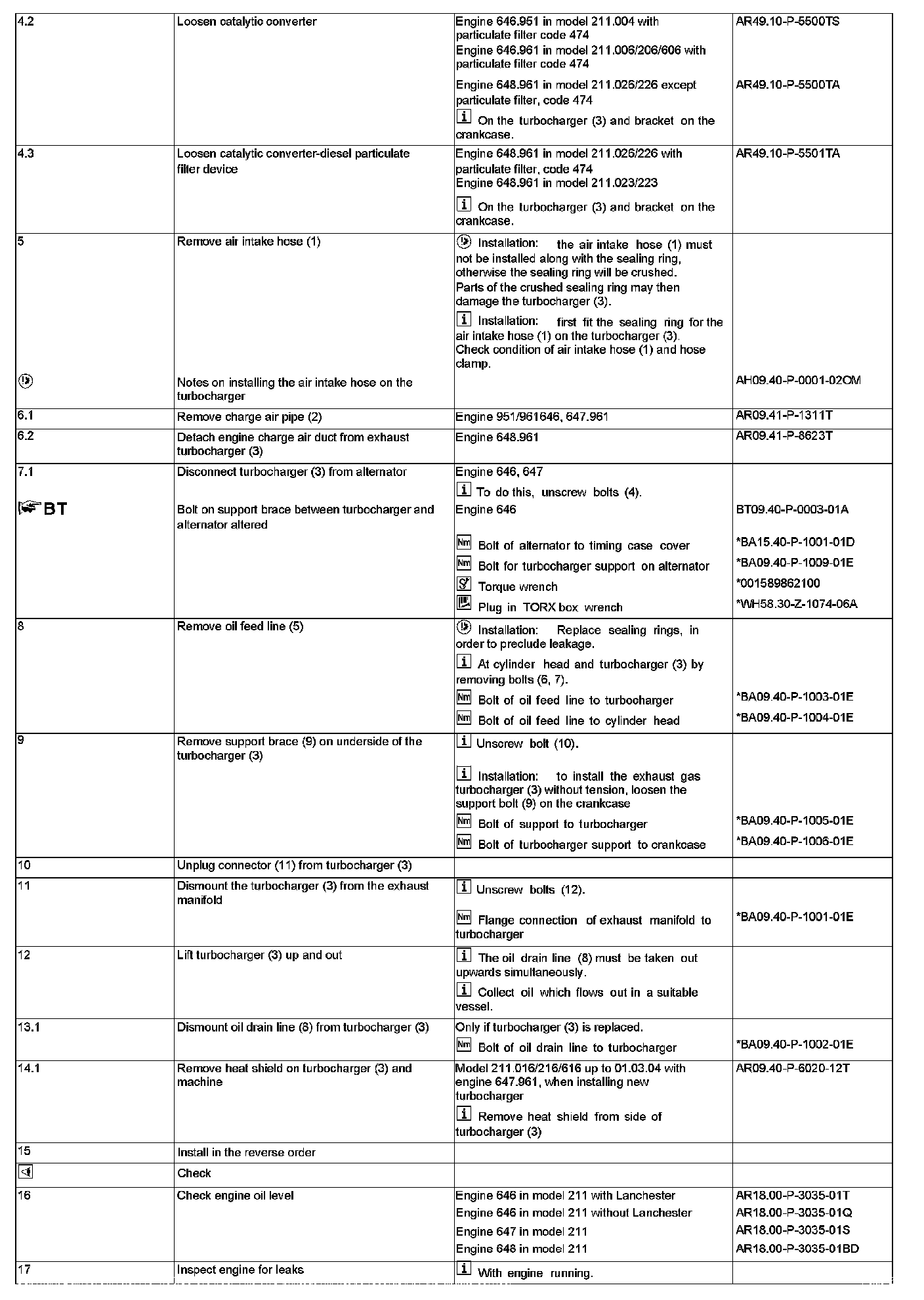

Steps 4.2 - 17:

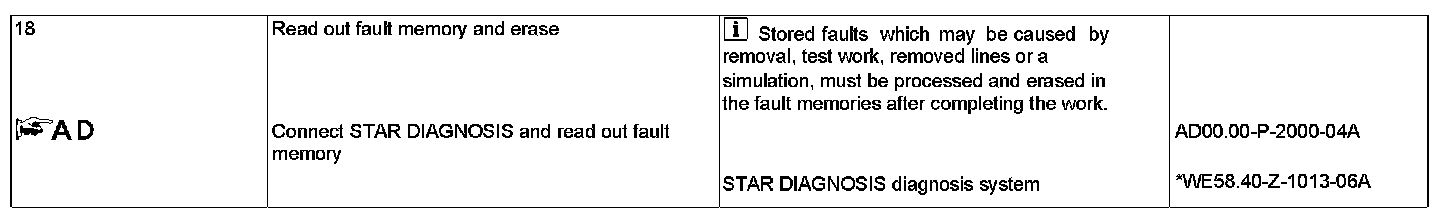

Steps 18:

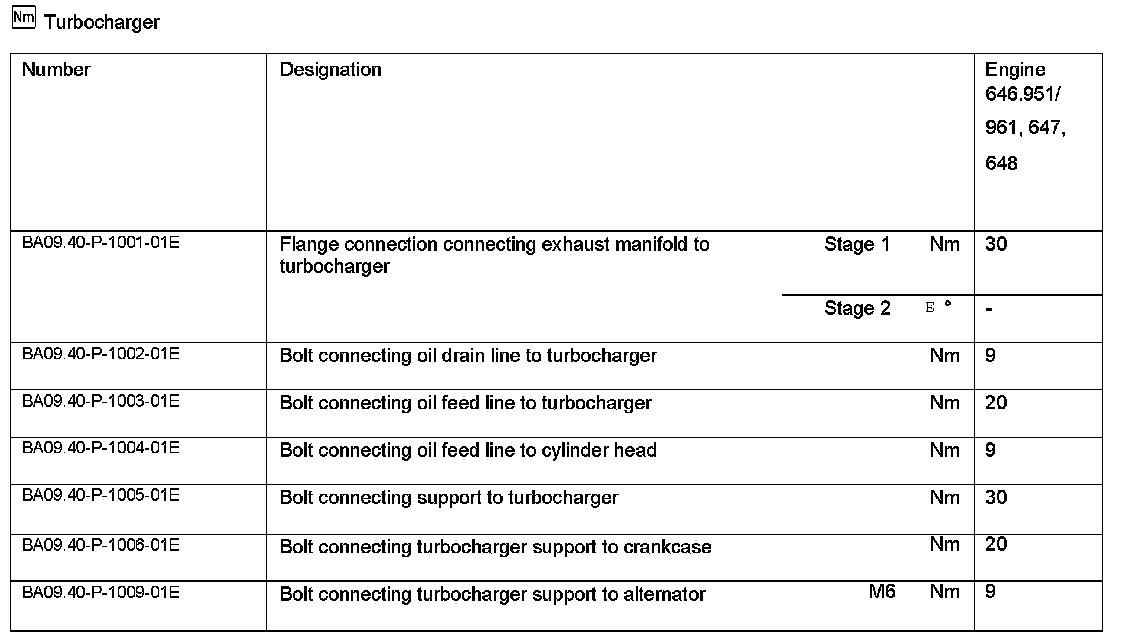

Turbocharger:

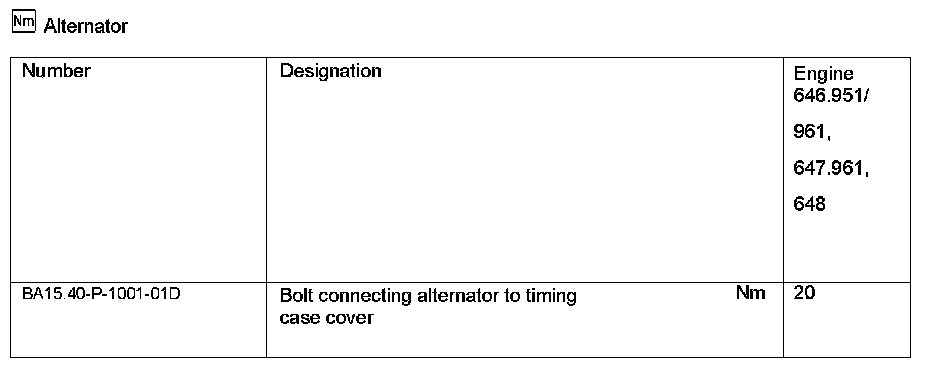

Alternator:

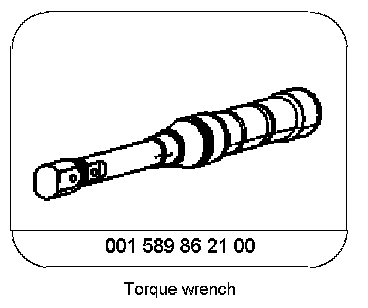

Special Tools:
