AR09.50-P-8680T Remove/Install Charge Air Duct Downstream of Charge Air Cooler



AR09.50-P-8680T Remove/Install Charge Air Duct Downstream Of Charge Air Cooler


Component Identification:

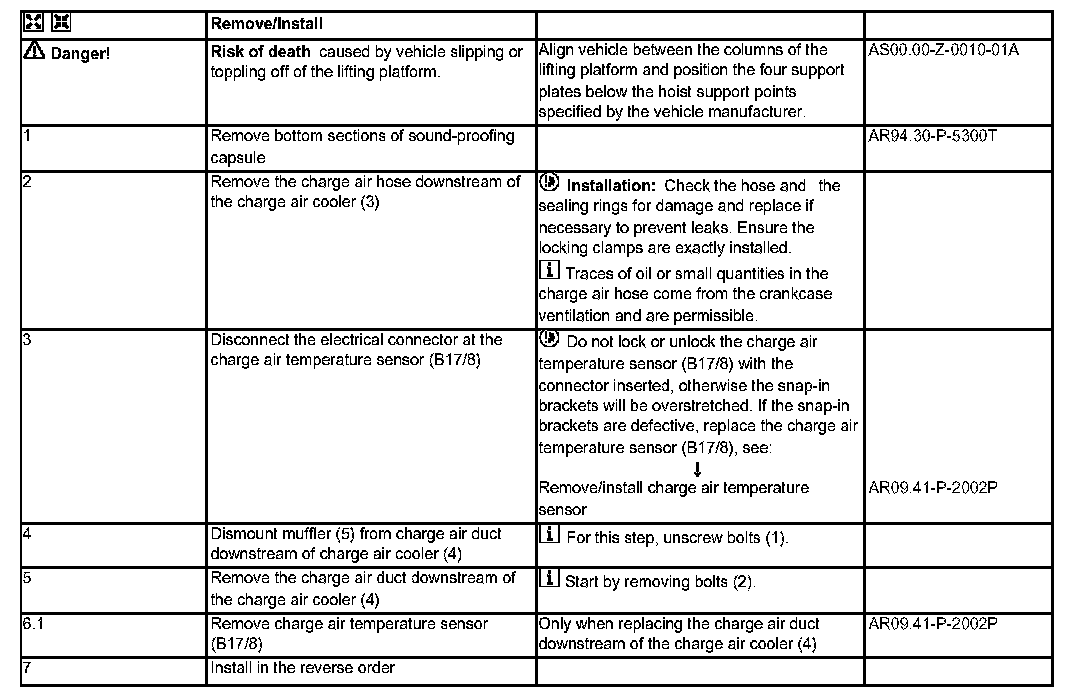

Steps 1 - 7:
