AR09.41-P-8623T Remove/Install Engine Charge Air Duct Upstream of Charge Air Cooler



AR09.41-P-8623T Remove/Install Engine Charge Air Duct Upstream of Charge Air Cooler


Component Identification:

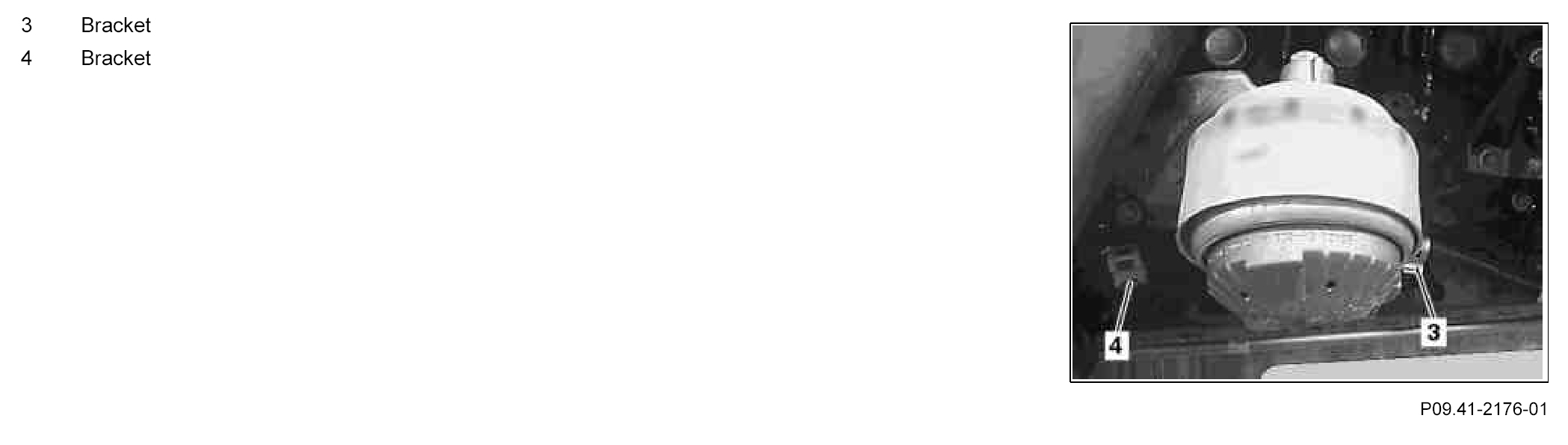

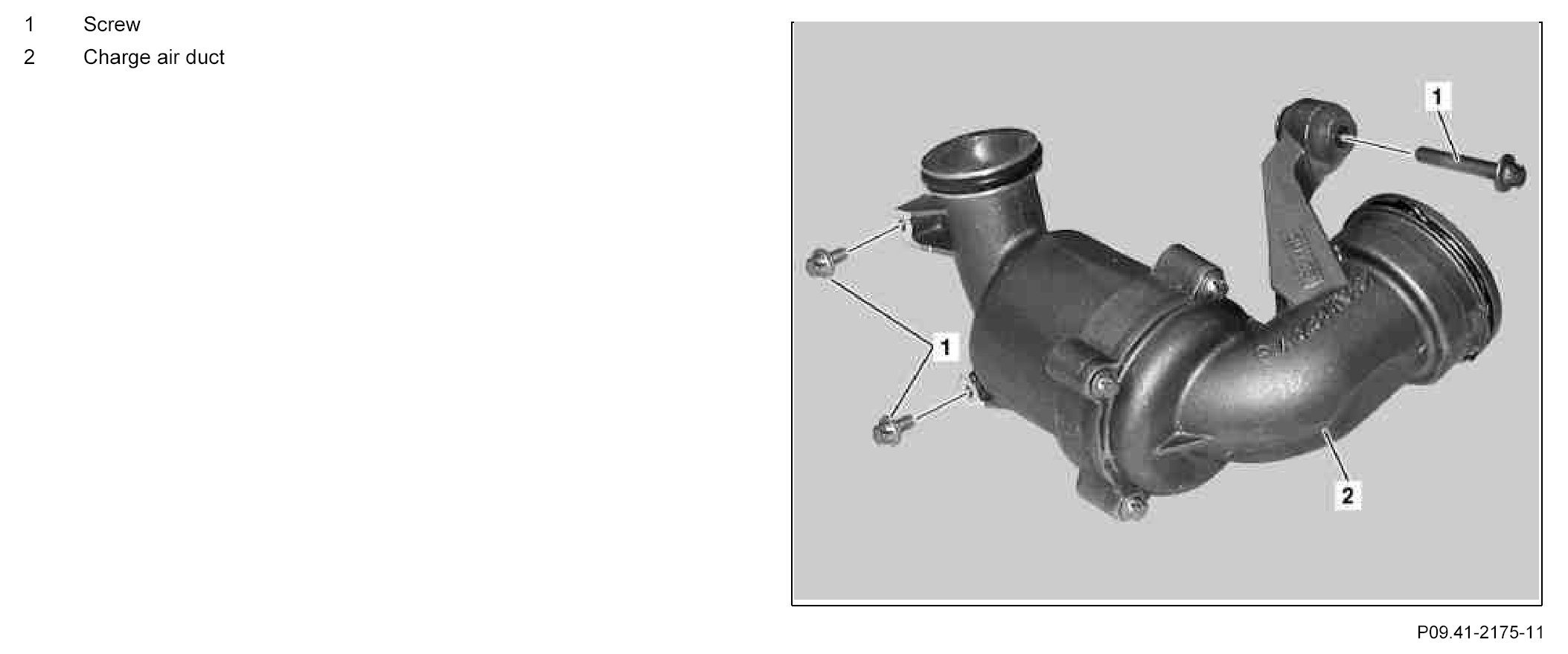

Component Identification:

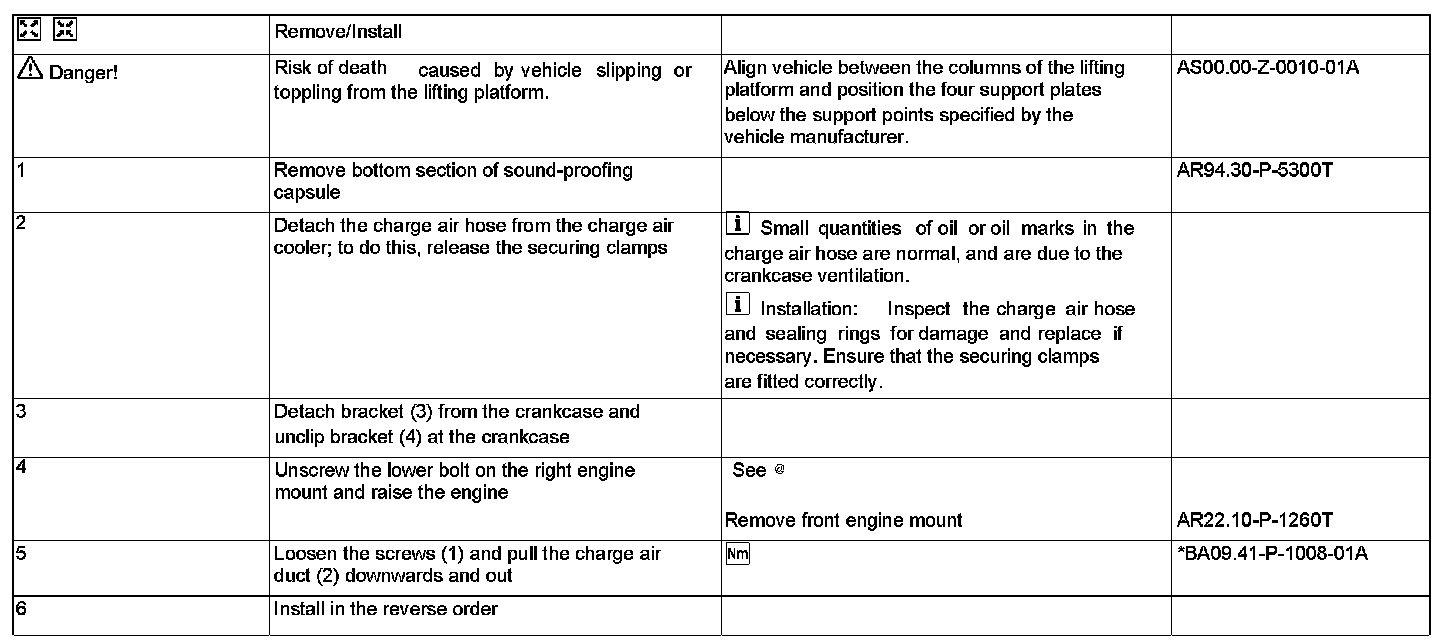

Steps 1 - 6:

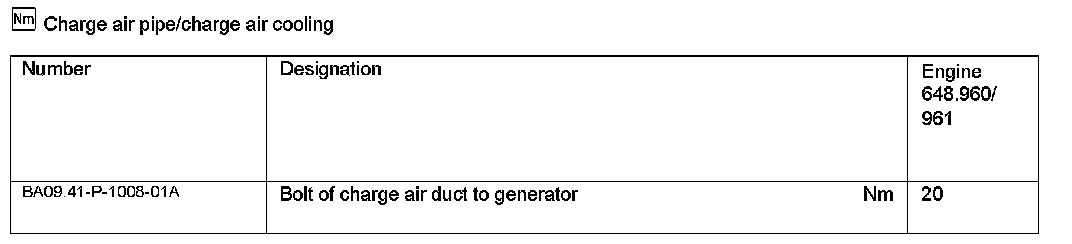

Charge Air Pipe/Charge Air Cooling:
