GF07.16-P-0001-01IF Common Rail Diesel Injection (CDI) - Arrangement of Components



GF07.16-P-0001-01IF Common Rail Diesel Injection (CDI) - Arrangement Of Components

on the vehicle side

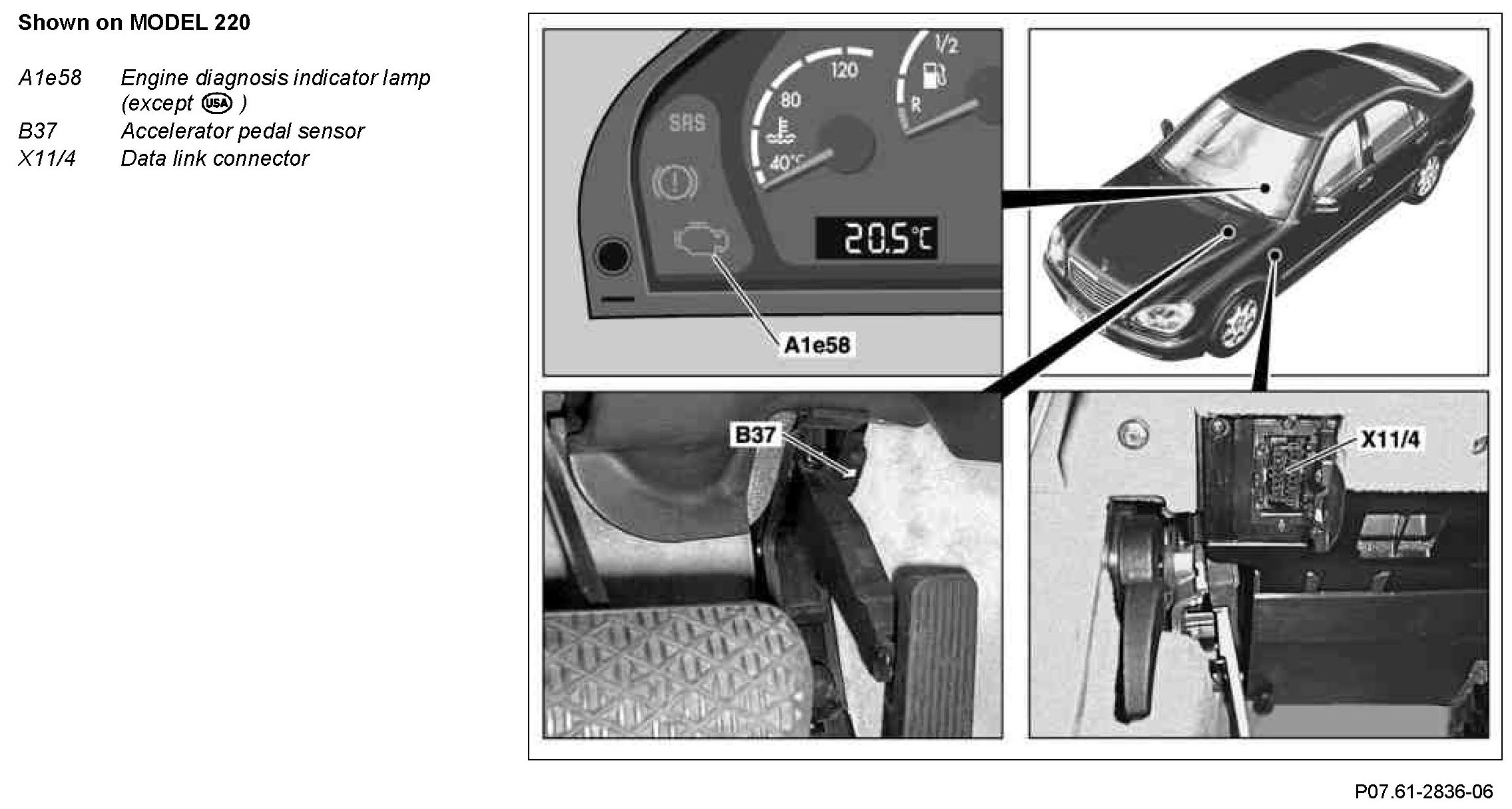

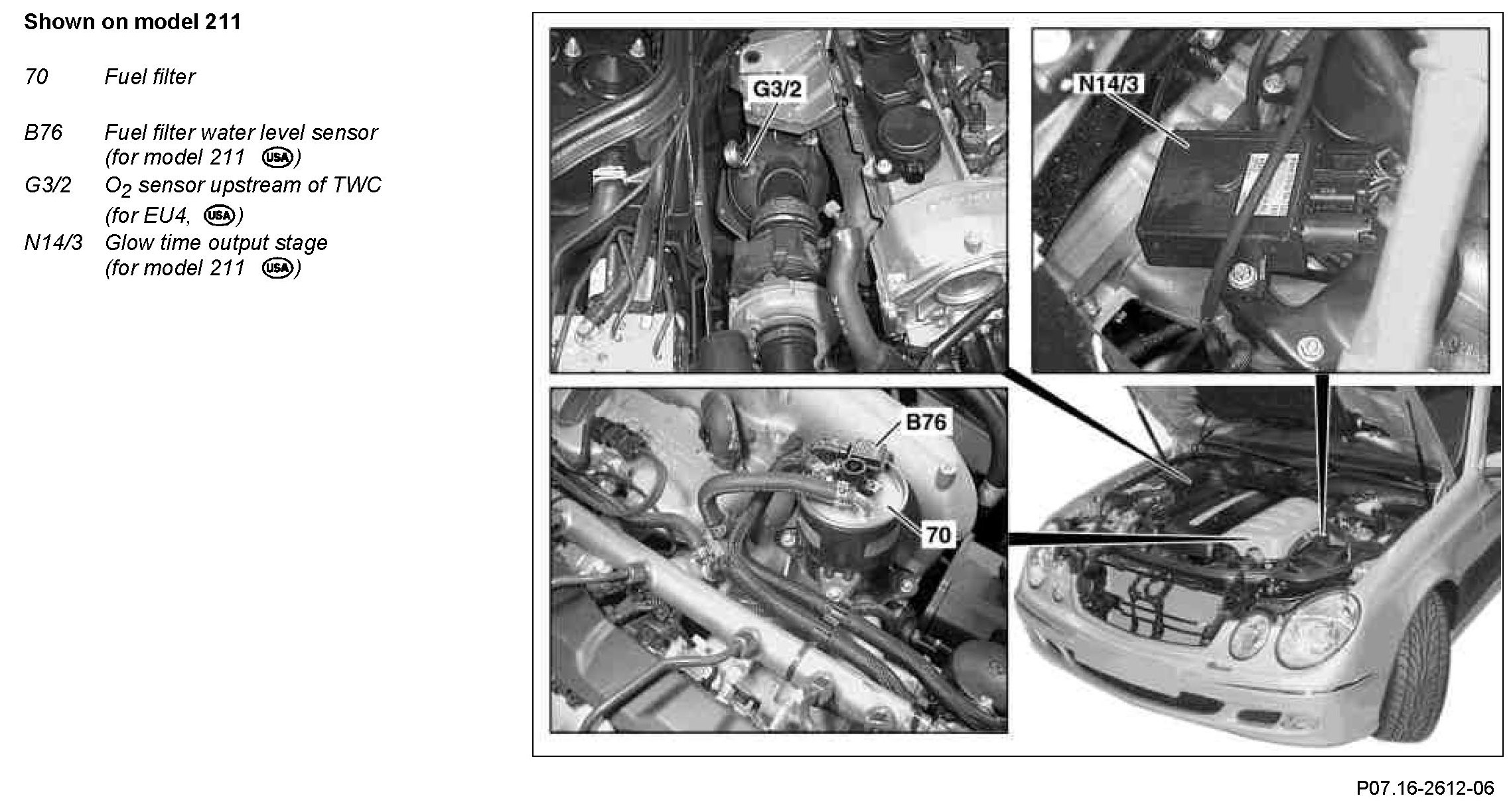

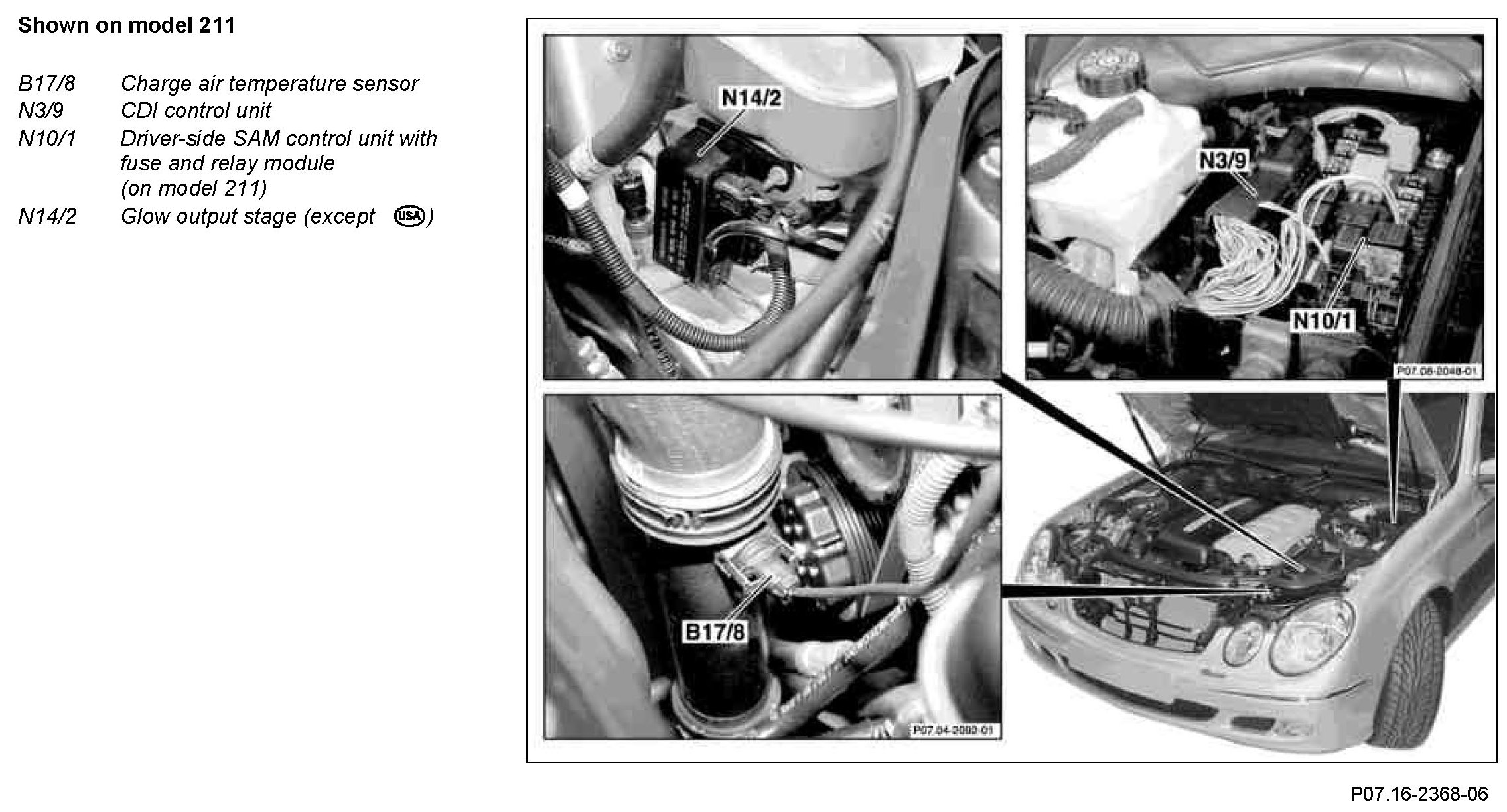

Component Identification:





Component Identification:





Component Identification:
