Home
>>
Mercedes Benz
>>
2006
>>
E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Intake Air Duct
>>
Service and Repair
Intake Air Duct: Service and Repair
AR09.10-P-8131T Remove/Install Air Intake Pipe

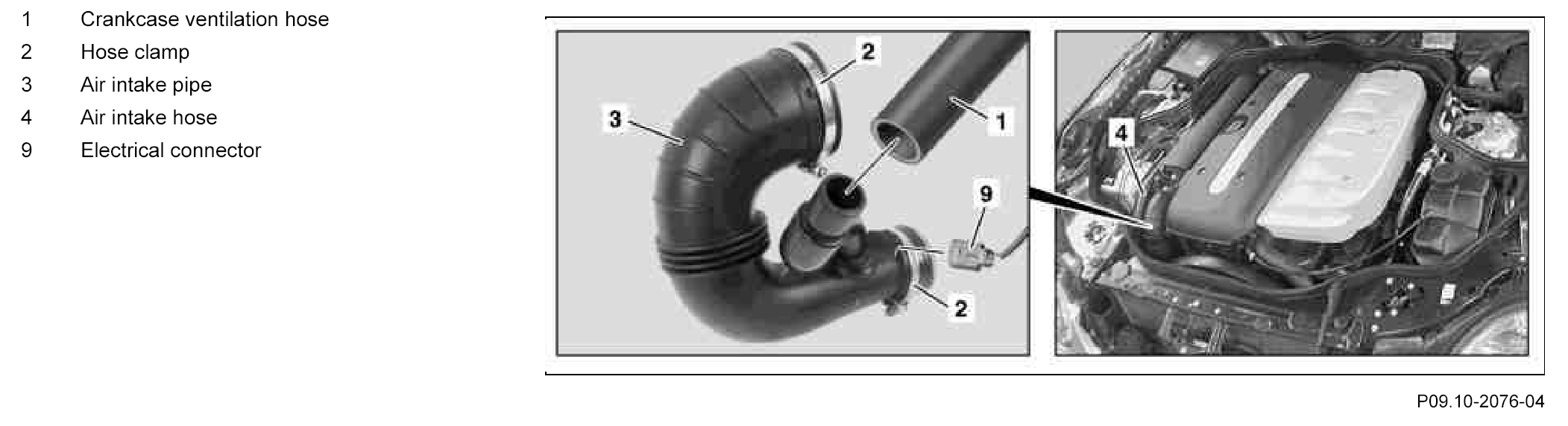

Component Identification:

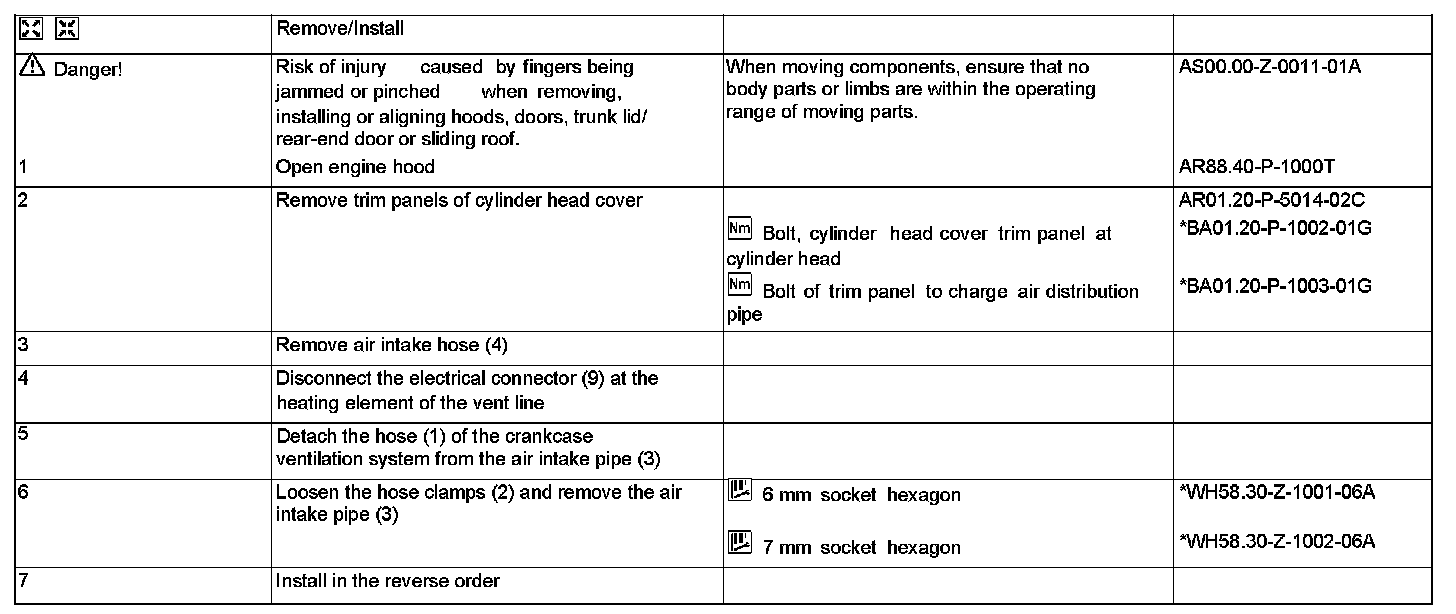

Steps 1 - 7:

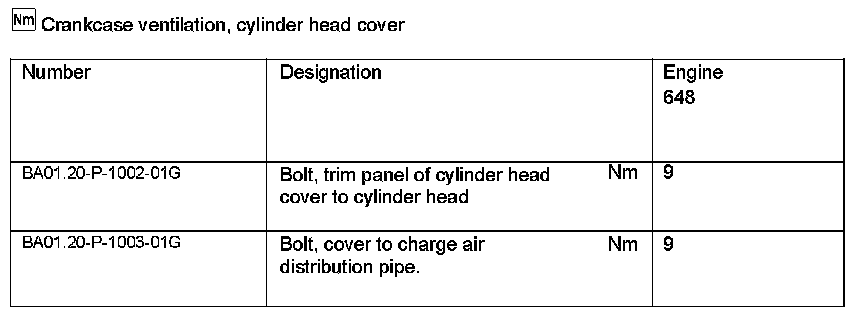

Crankcase Ventilation, Cylinder Head Cover:
