AR07.16-P-1010T Remove/Install the Rail
AR07.16-P-1010T Removing/Installing the Rail

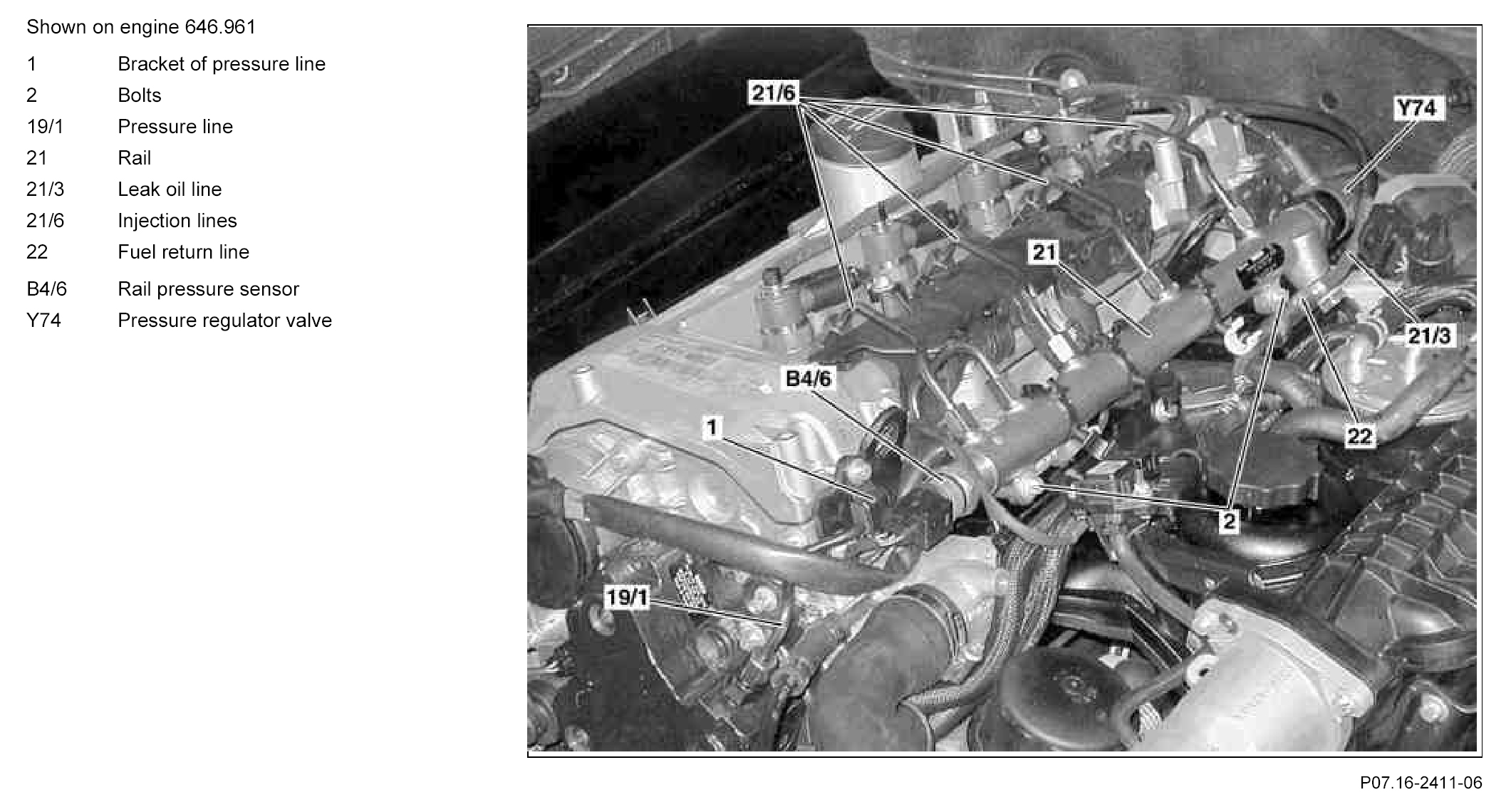

Component Identification:

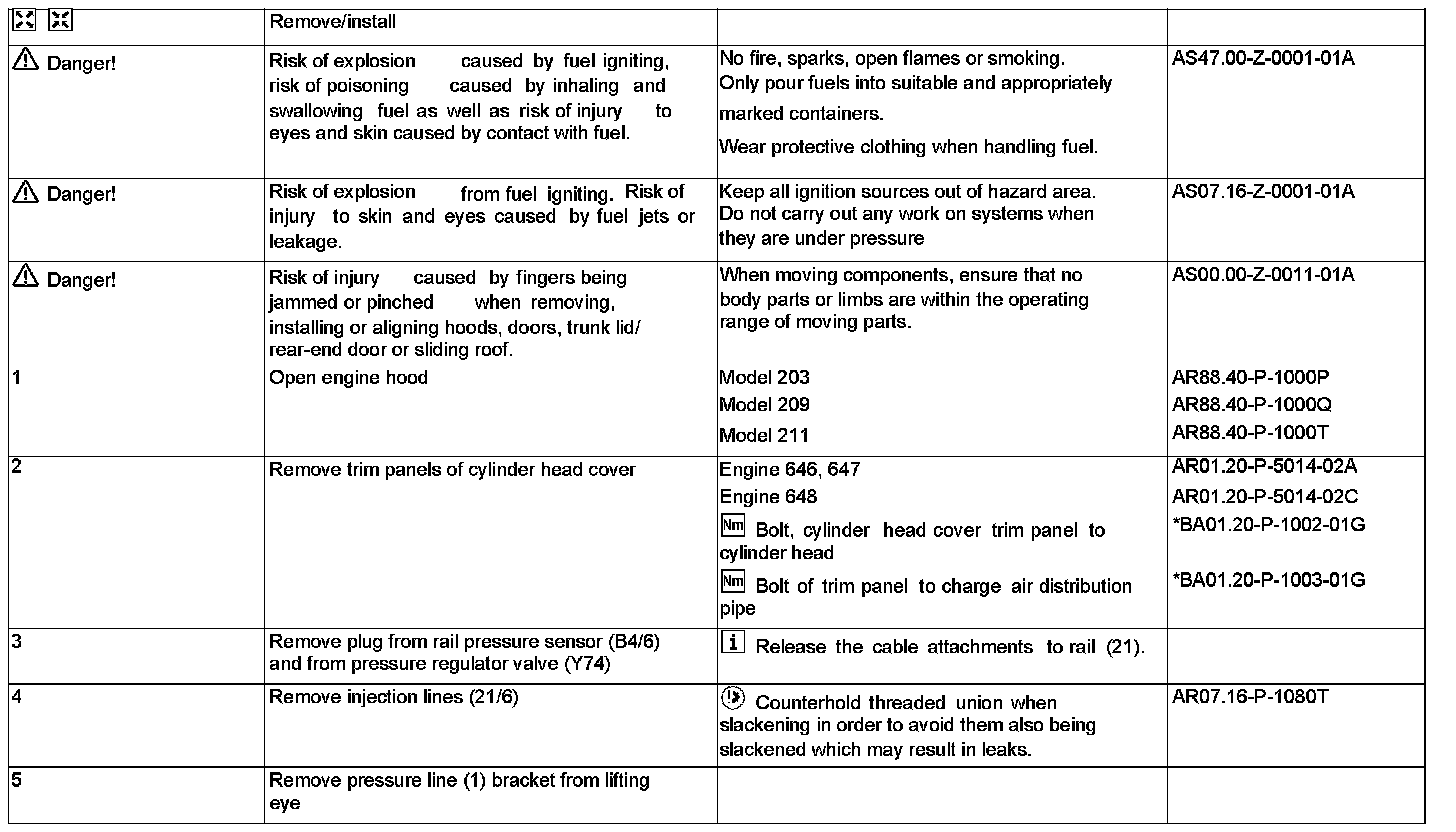

Steps 1 - 5:

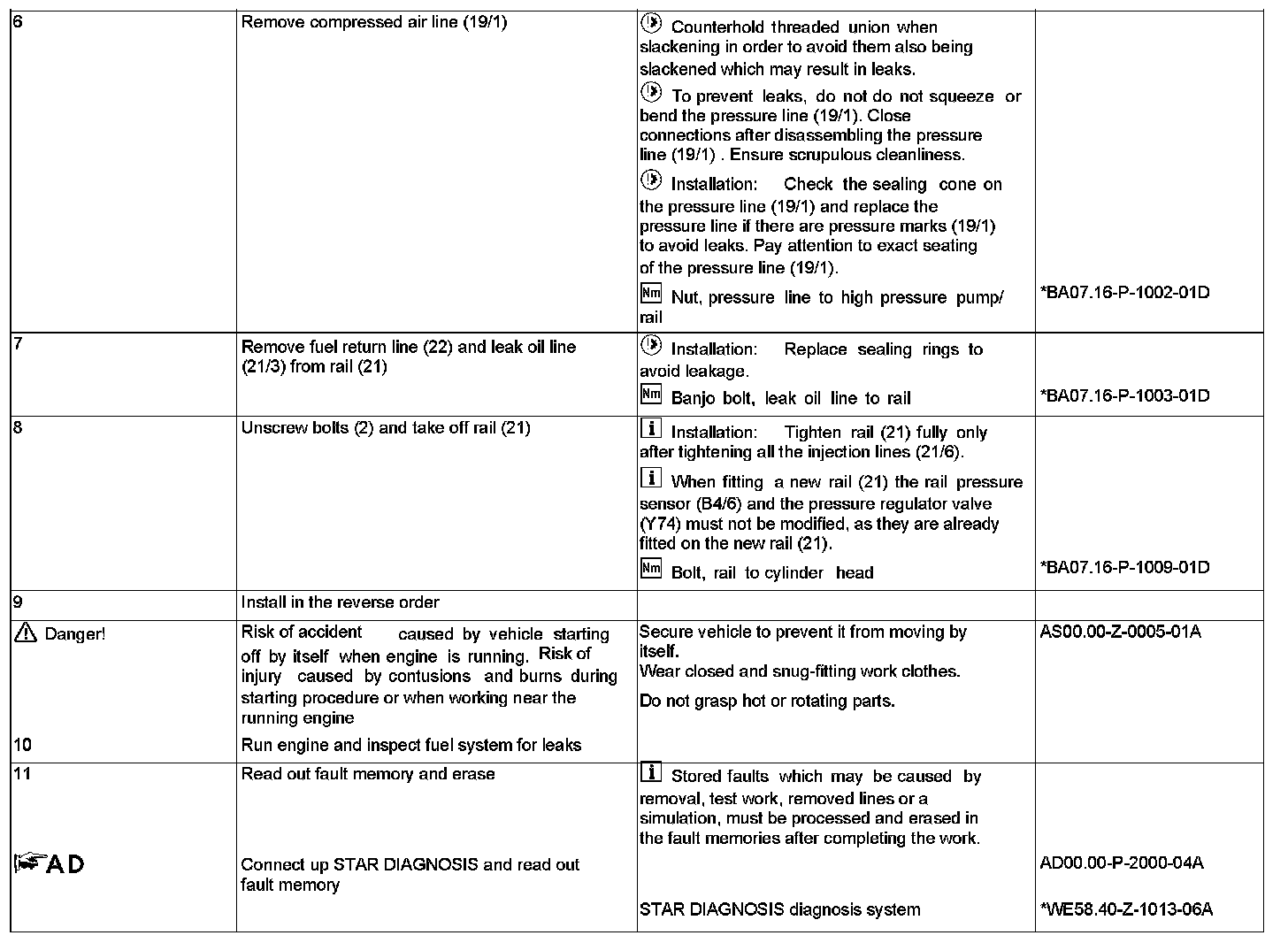

Steps 6 - 11:

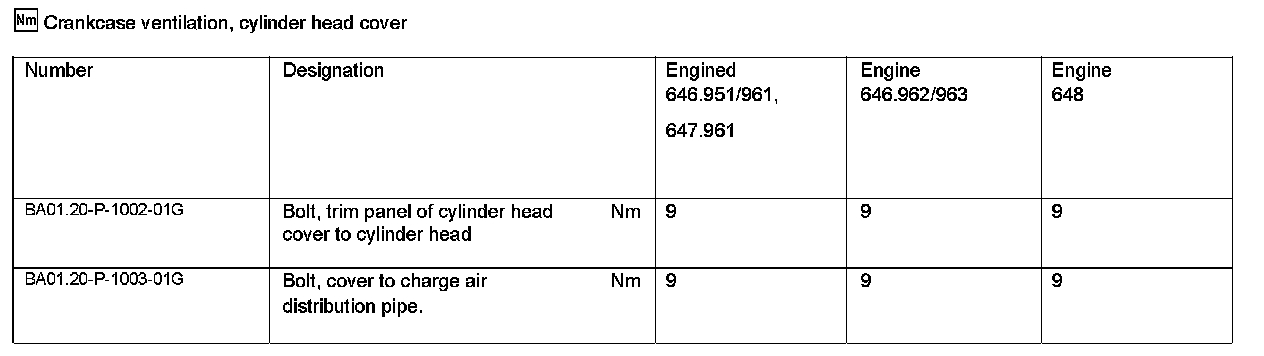

Crankcase Ventilation, Cylinder Head Cover:

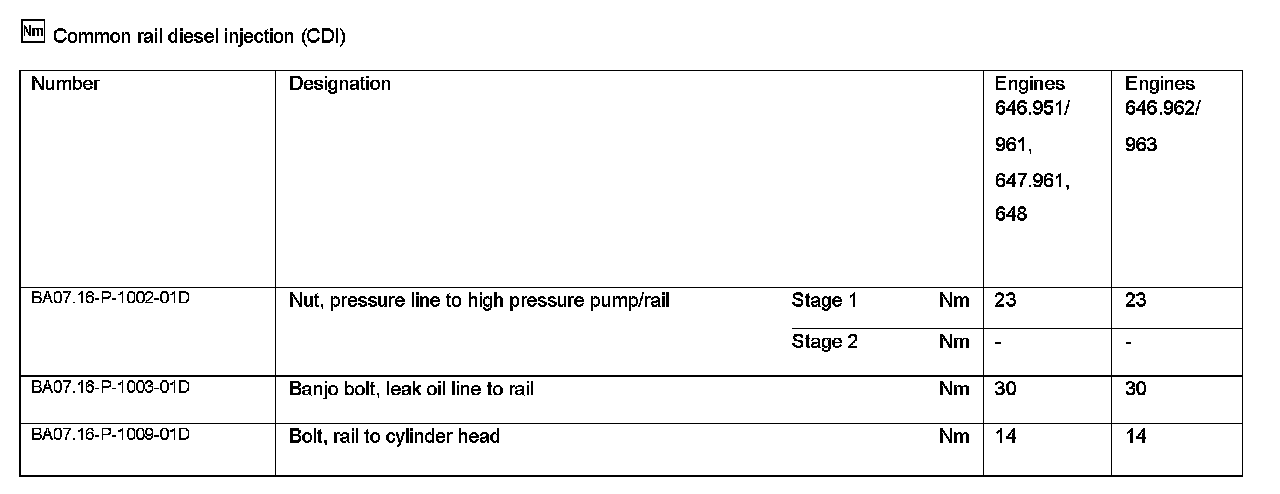

Common Rail Diesel Injection (CDI):
AR07.16-P-1010T Removing/Installing the Rail
