AR07.03-P-1010T Remove/Install Rail
AR07.03-P-1010T Remove/Install Rail
AR07.03-P-1010T Remove/Install Rail

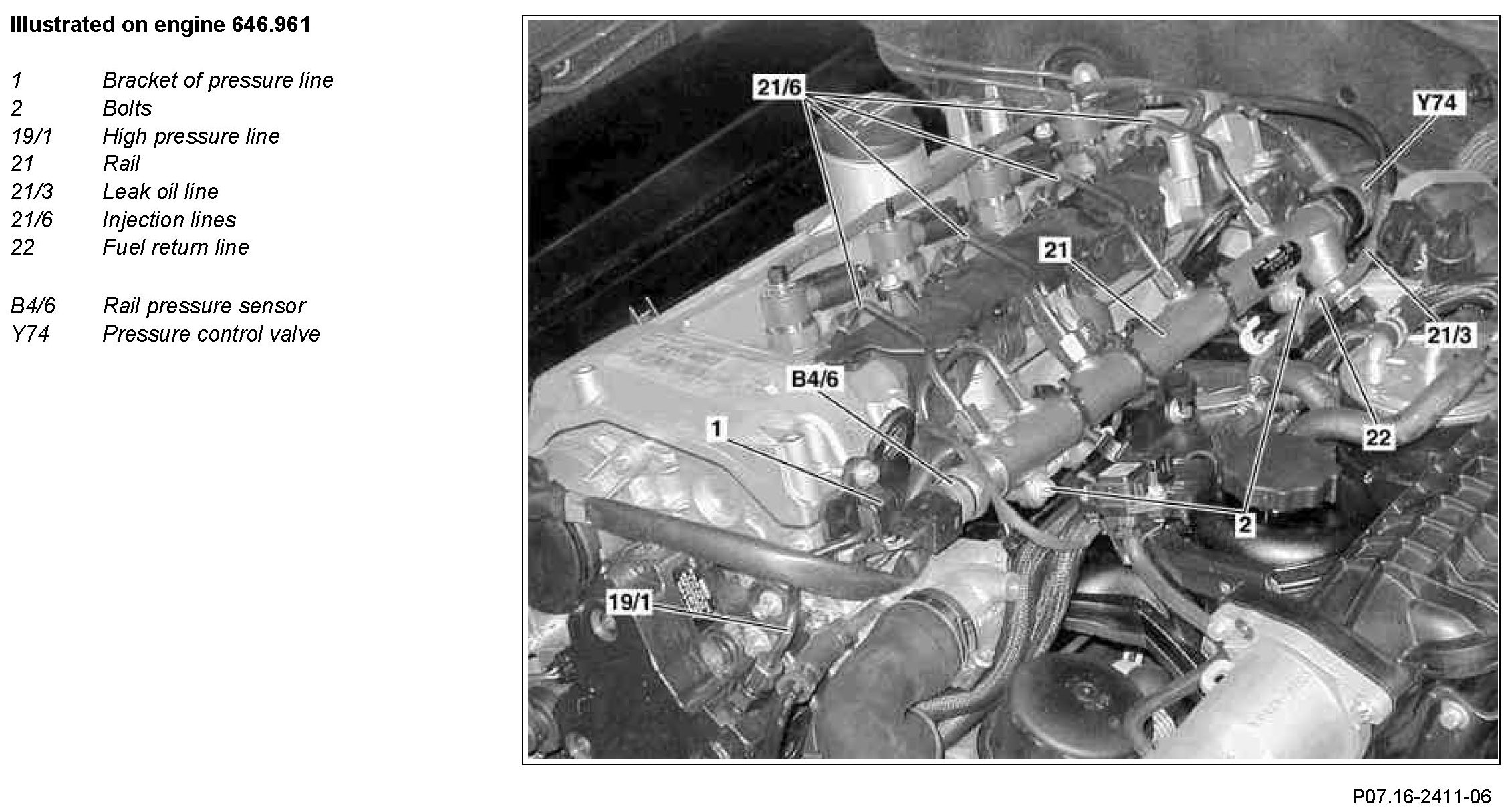

Component Identification:

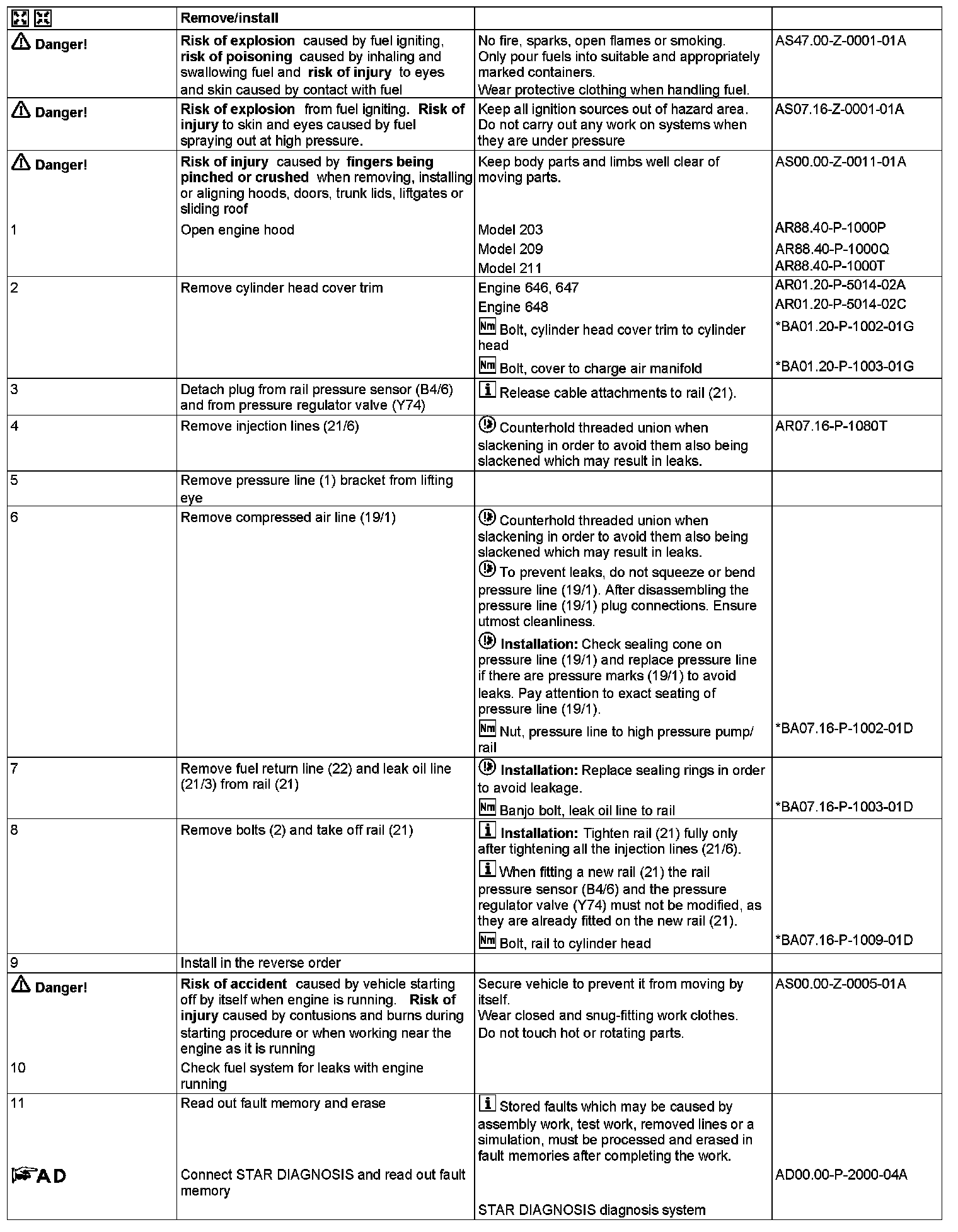

Steps 1 - 11:

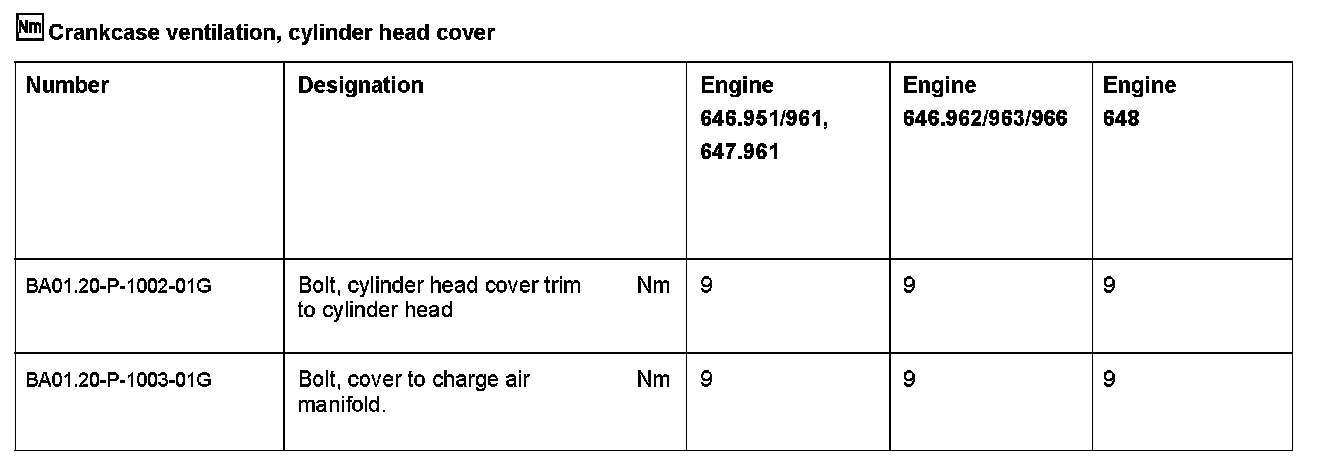

Crankcase Ventilation, Cylinder Head Cover:

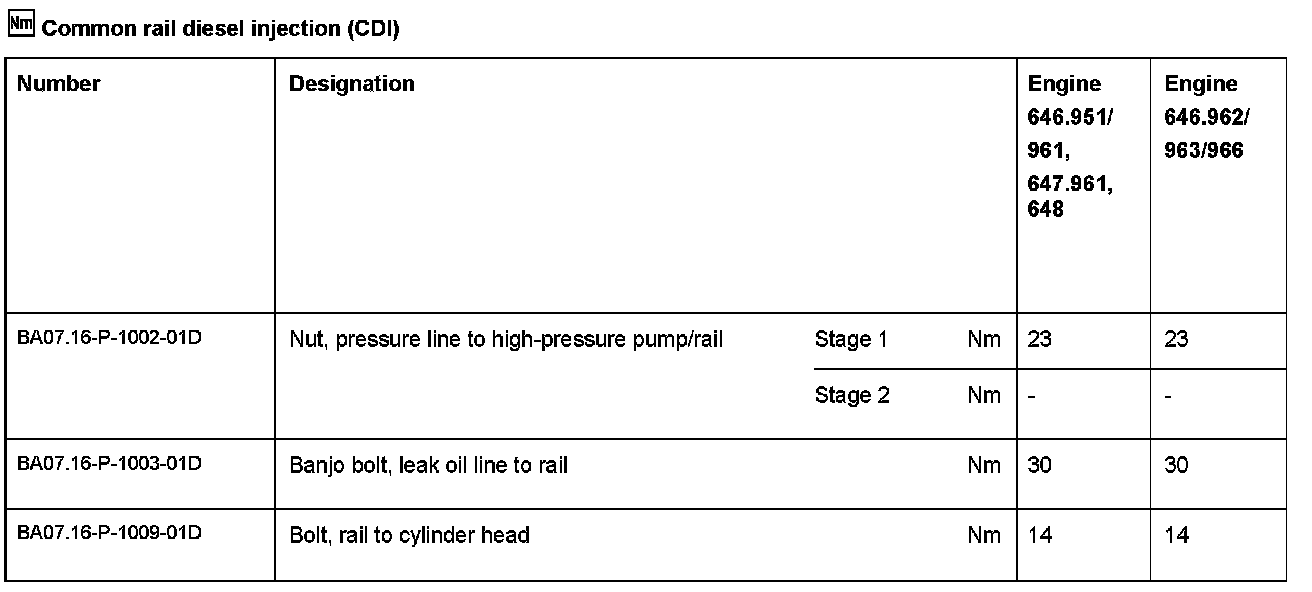

Common Rail Diesel Injection (CDI):
