AR47.20-P-7000T Remove/Install Fuel Pump and Fuel Level Sensor



AR47.20-P-7000T Removing and Installing Fuel Pump and Fuel Level Sensor


Component Identification:

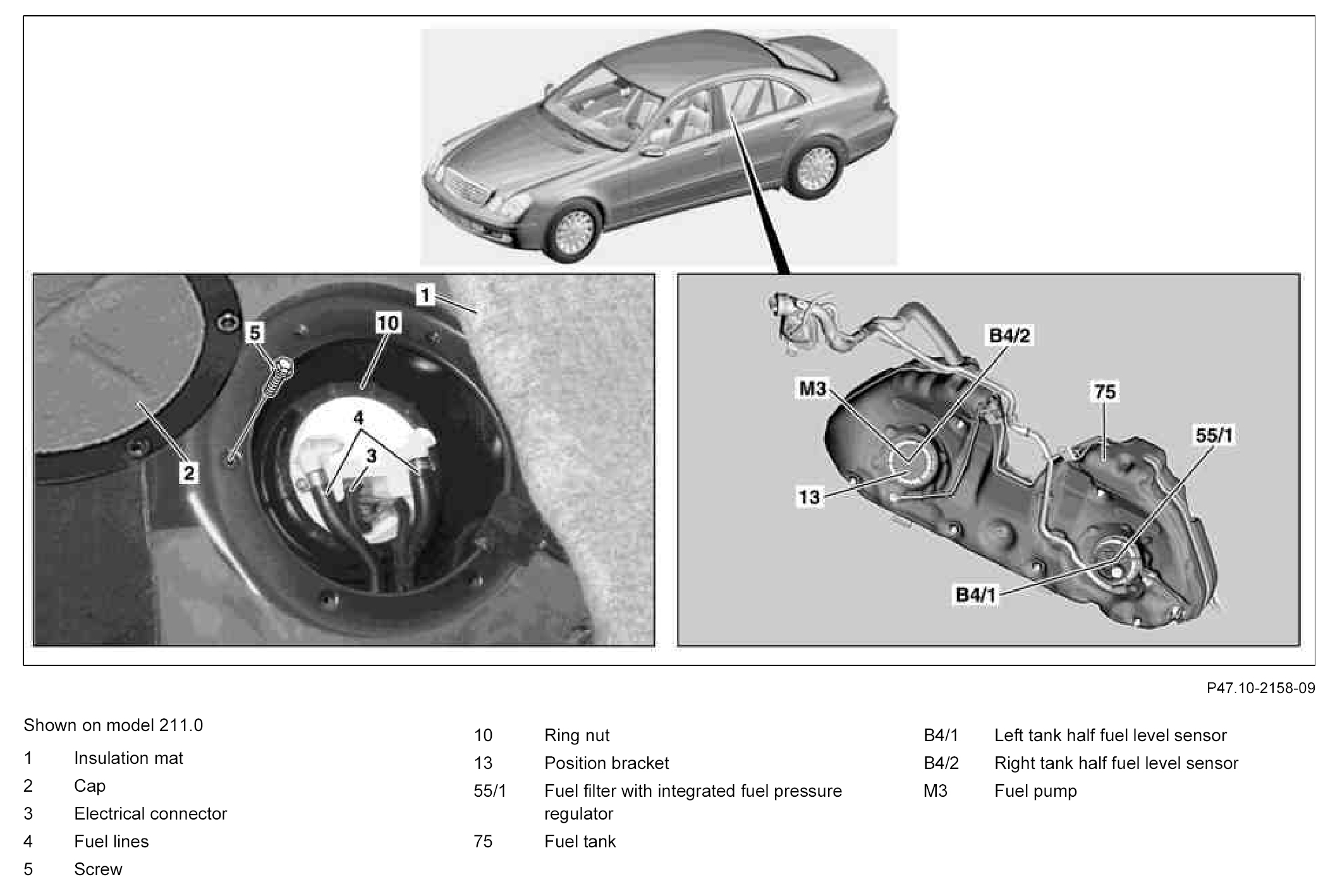

Component Identification:




Component Identification:

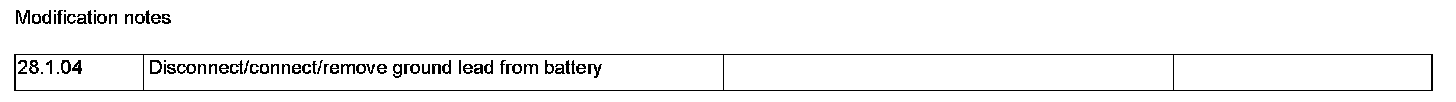

Modification Notes:

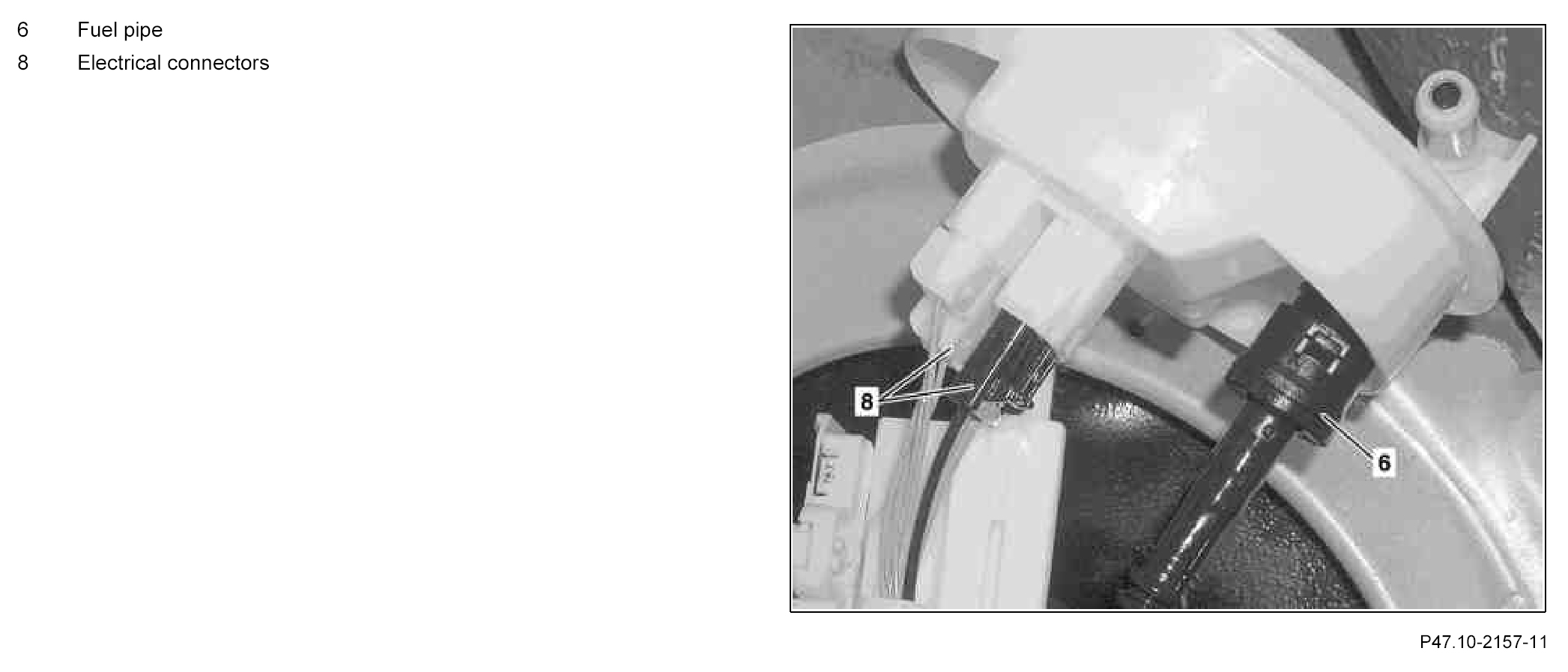

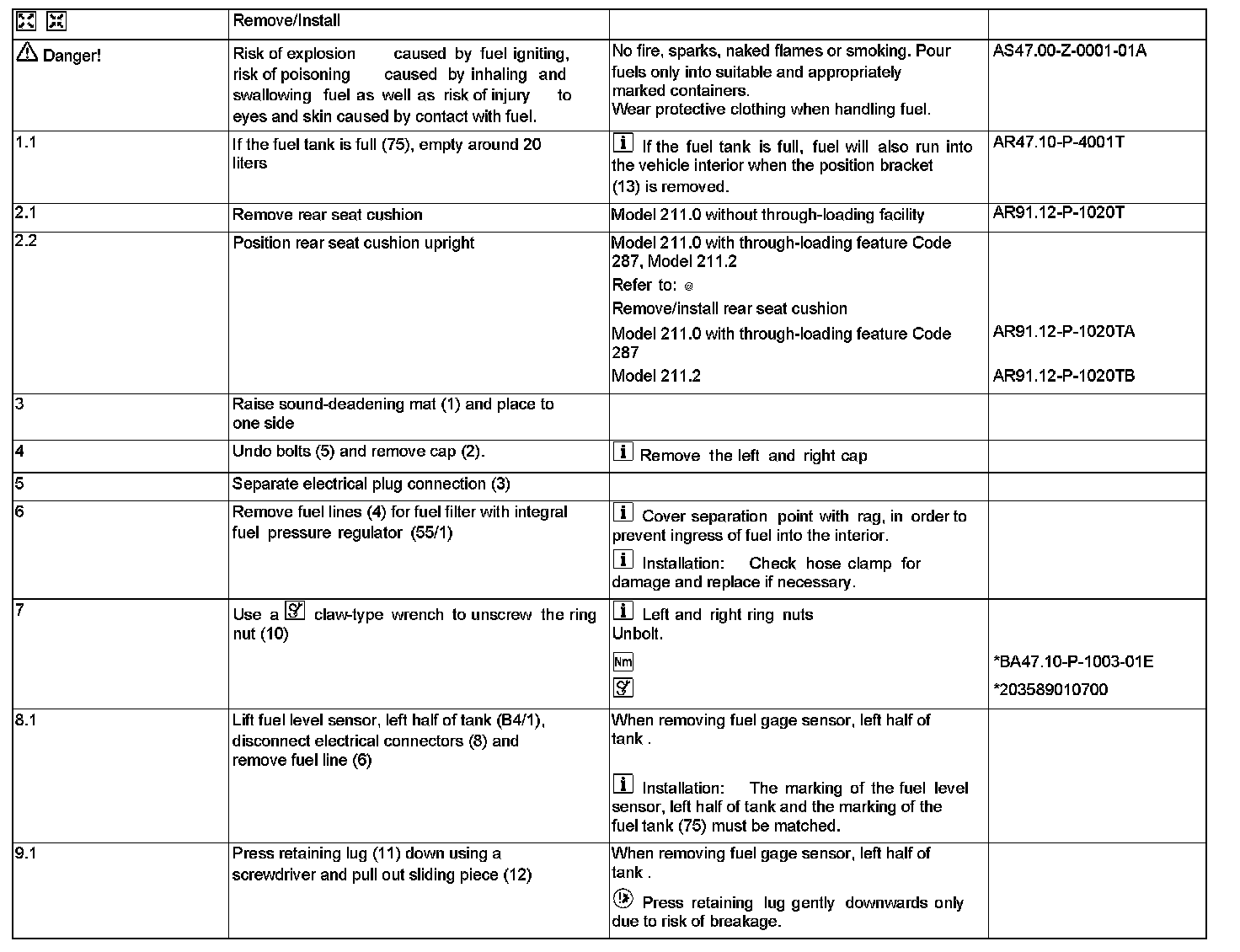

Steps 1 - 9.1:

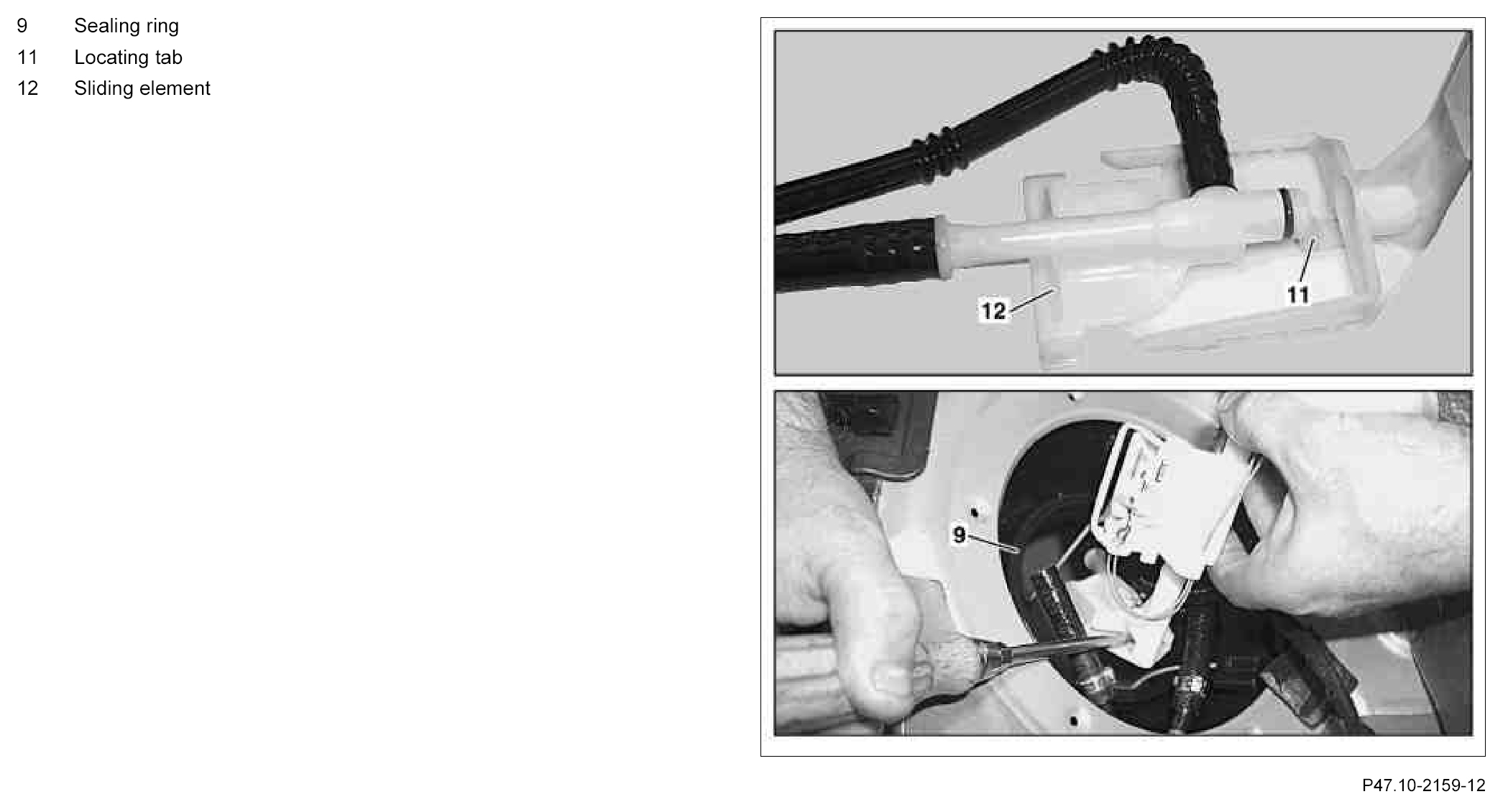

Steps 10.1 - 15:

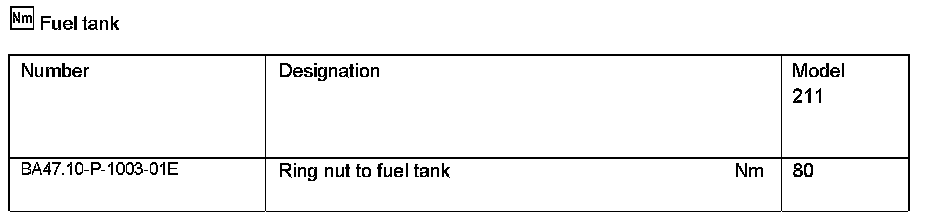

Fuel Tank:

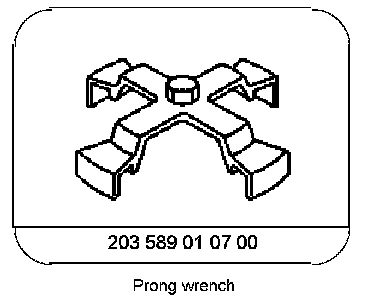

Special Tools:
