Fuel Injector: Service and Repair
AR07.16-P-1000T Removing/Installing Injectors

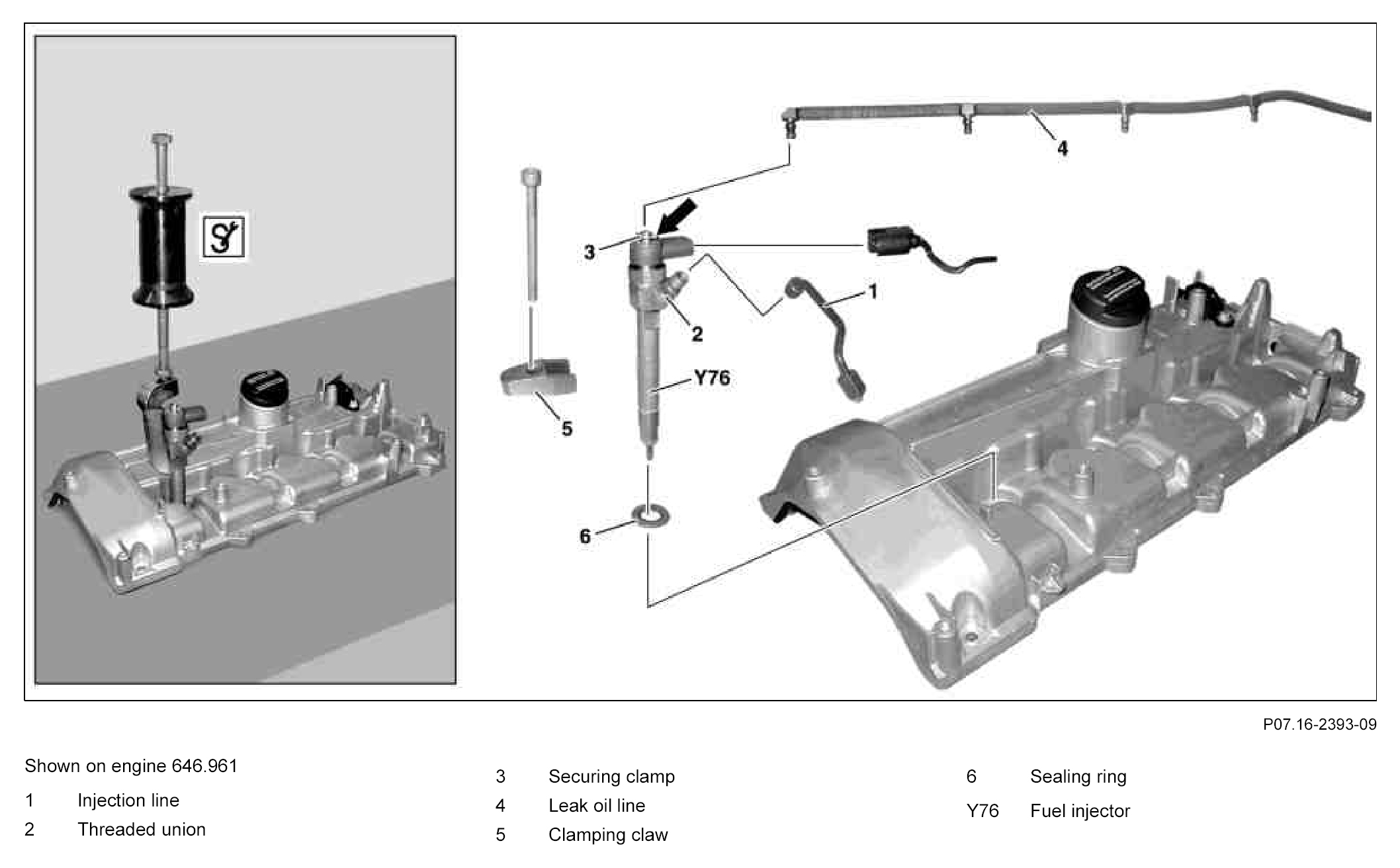

Component Identification:

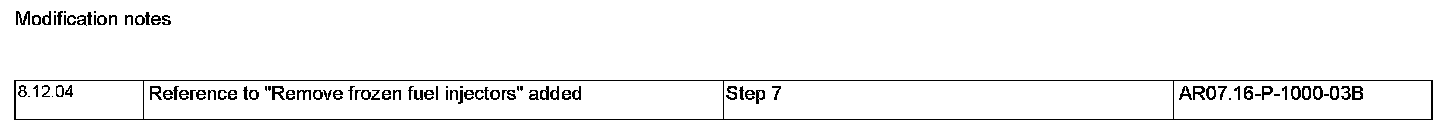

Modification Notes:

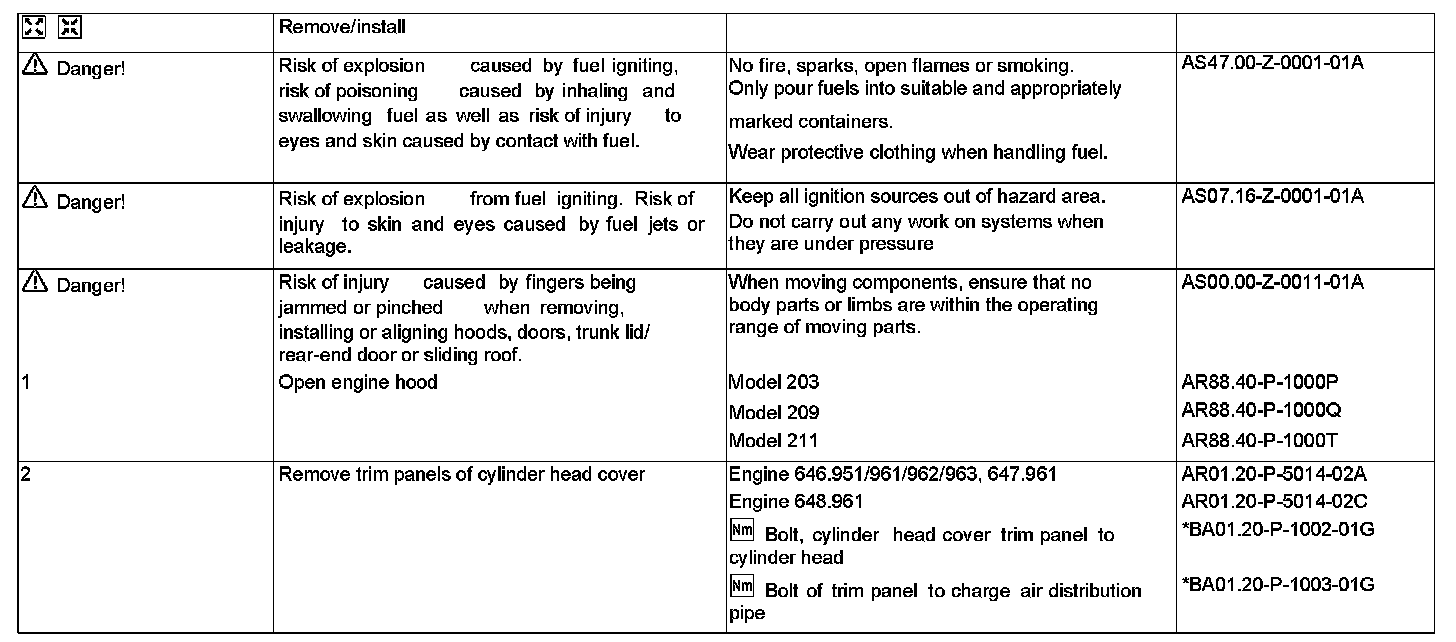

Steps 1 - 2:

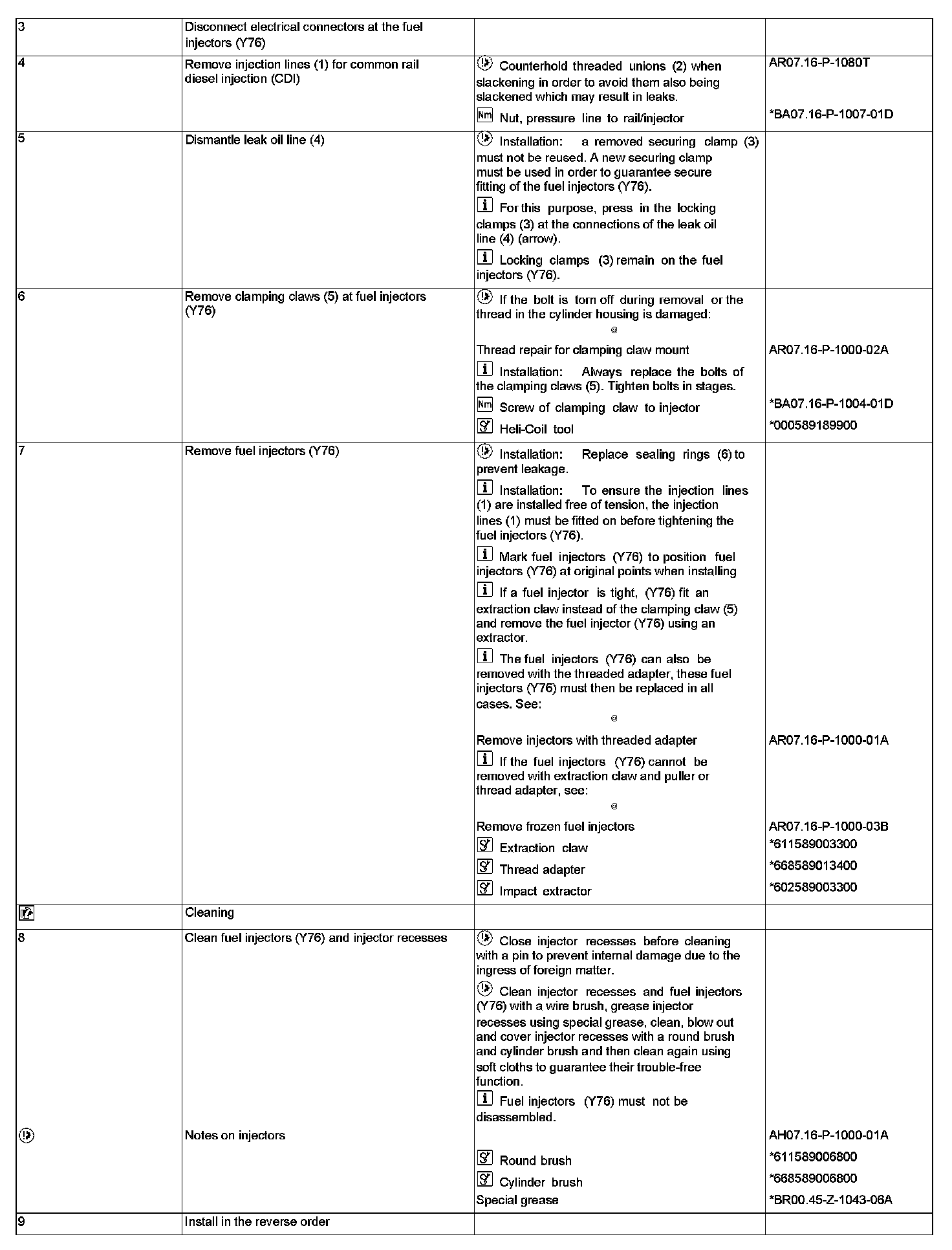

Steps 3 - 9:

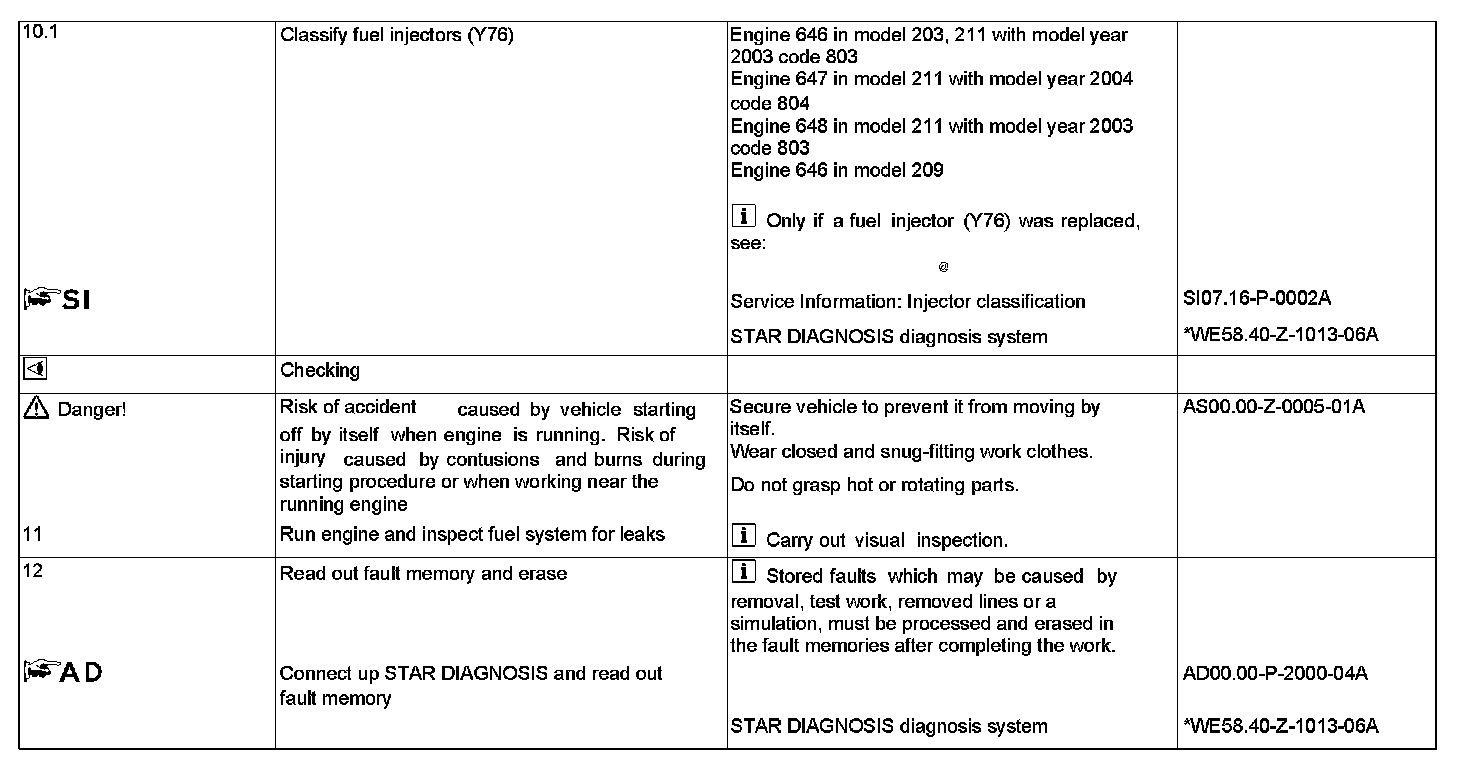

Steps 10.1 - 12:

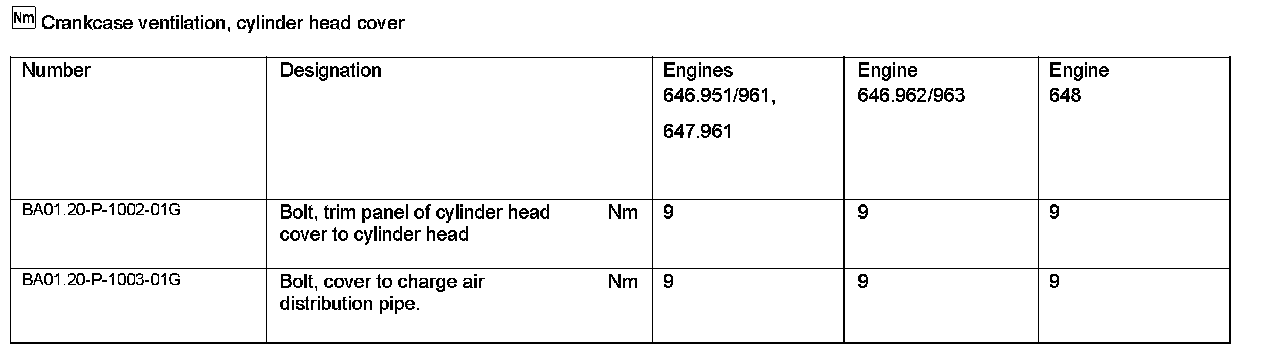

Crankcase Ventilation, Cylinder Head Cover:

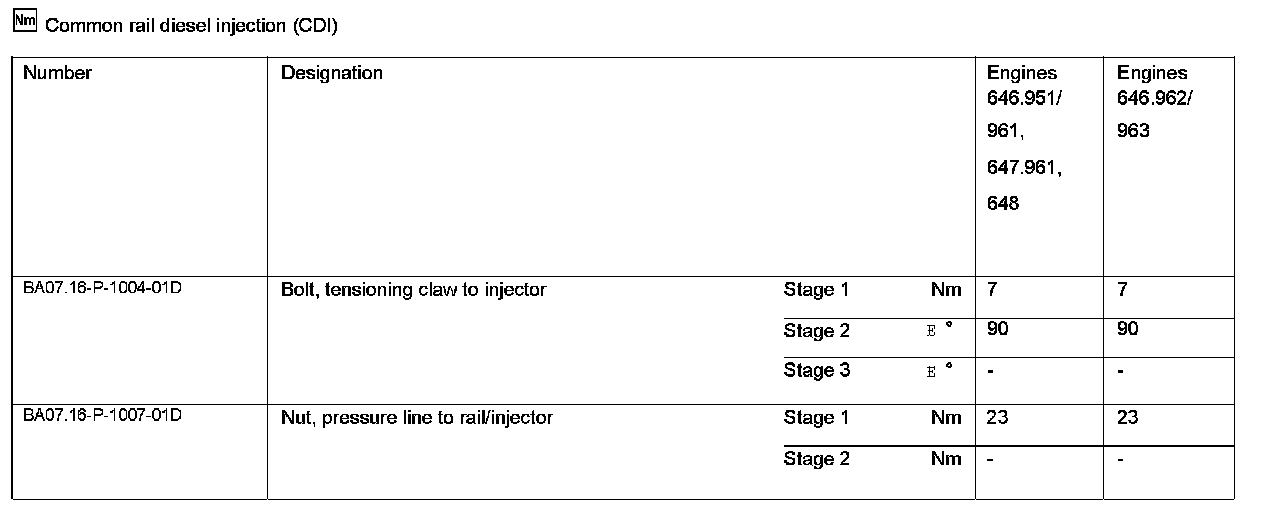

Common Rail Diesel Injection (CDI):

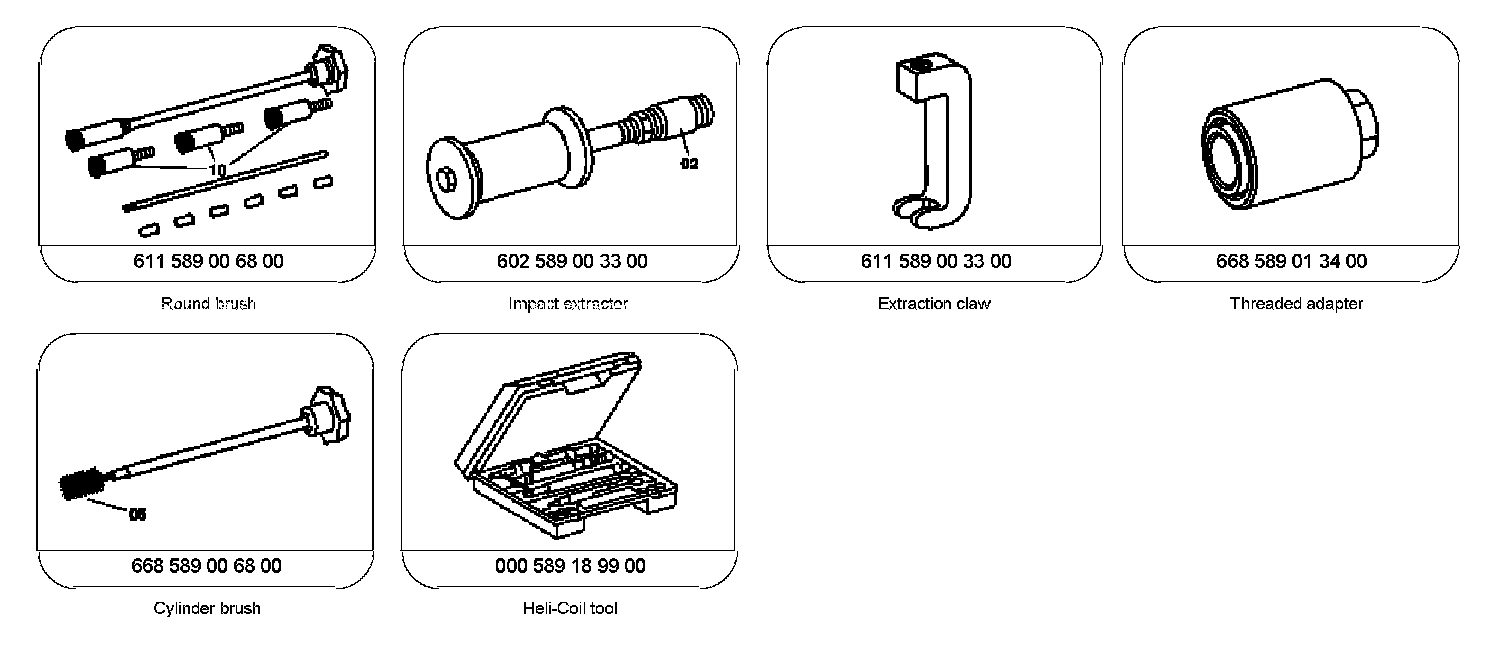

Special Tools:
