Fuel Injector Line: Service and Repair



AR07.16-P-1080T Removing/Installing Injection Lines of Common Rail Diesel Injection (CDI)

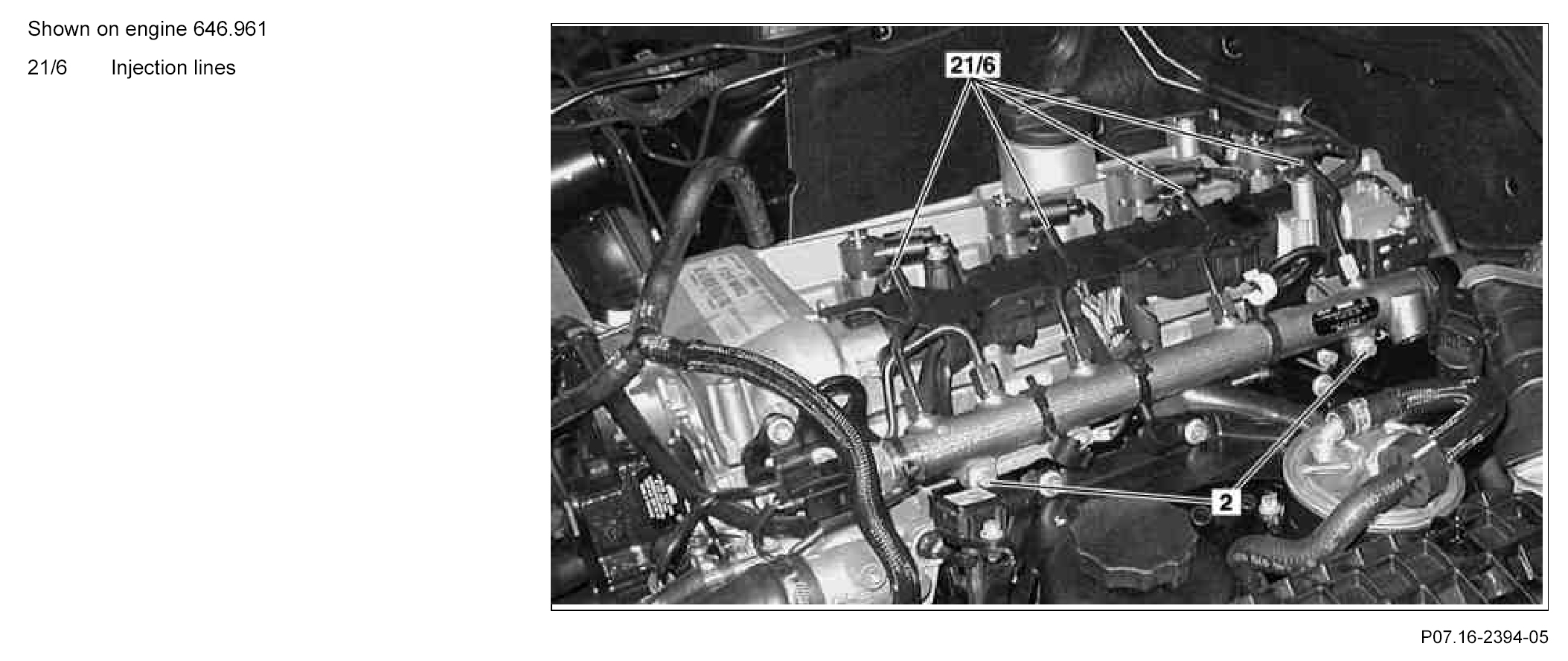

Component Identification:

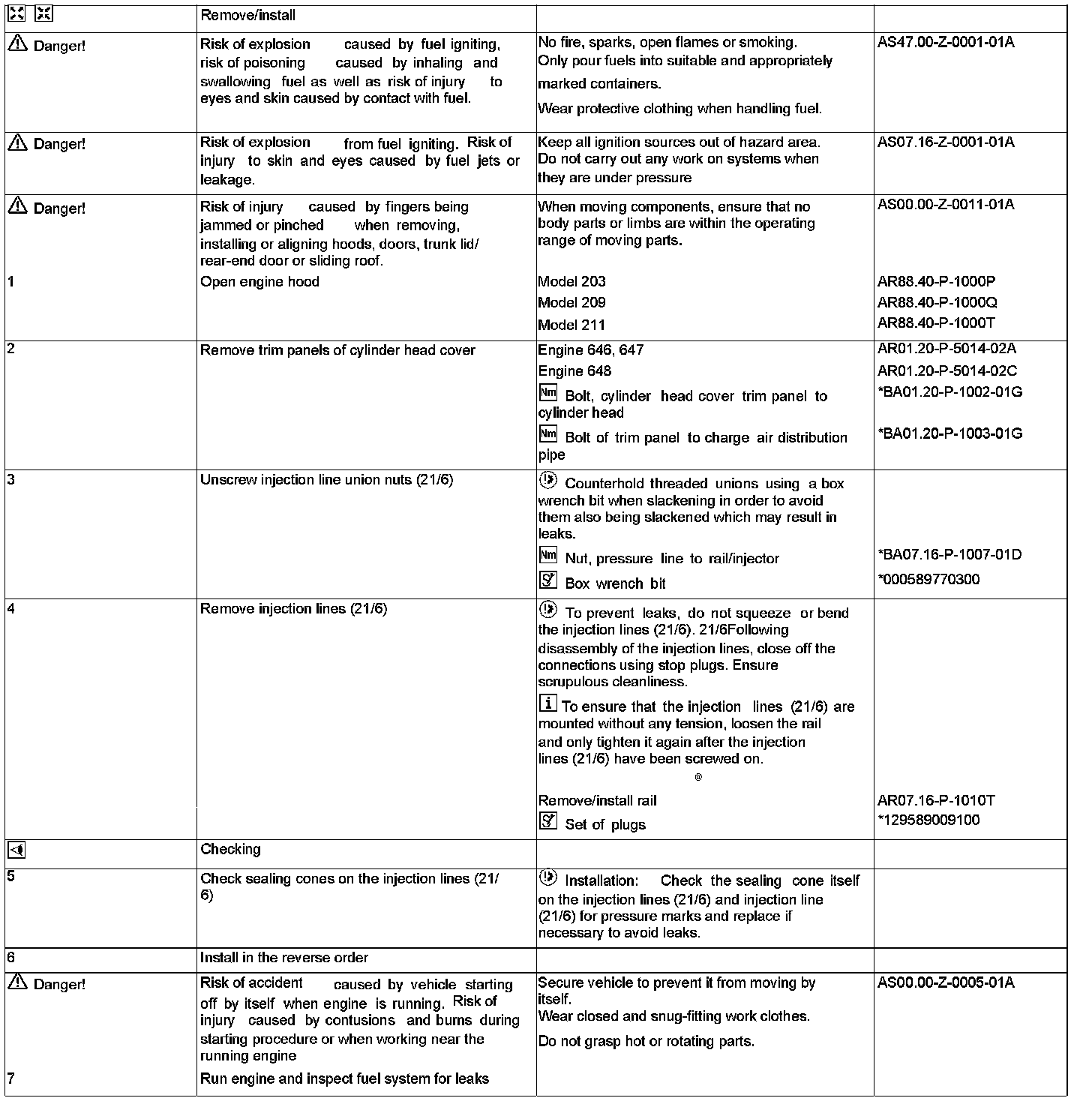

Steps 1 - 7:

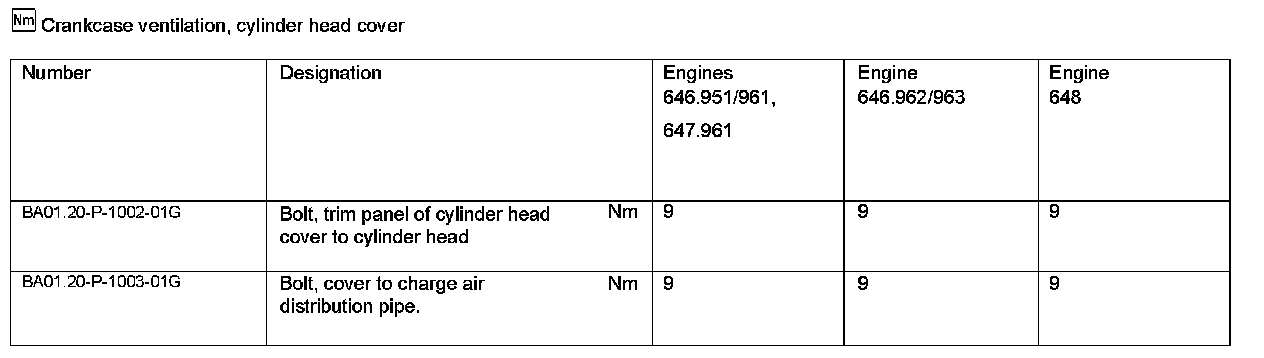

Crankcase Ventilation, Cylinder Head Cover:




Common Rail Diesel Injection (CDI):

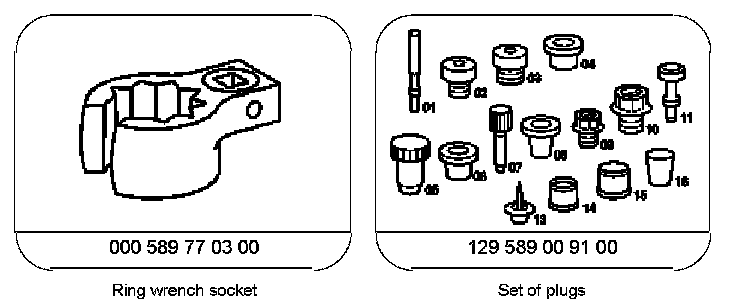

Special Tools:
