Diesel MFI Pump: Service and Repair
AR07.02-P-1020T Removing/Installing the High Pressure Pump

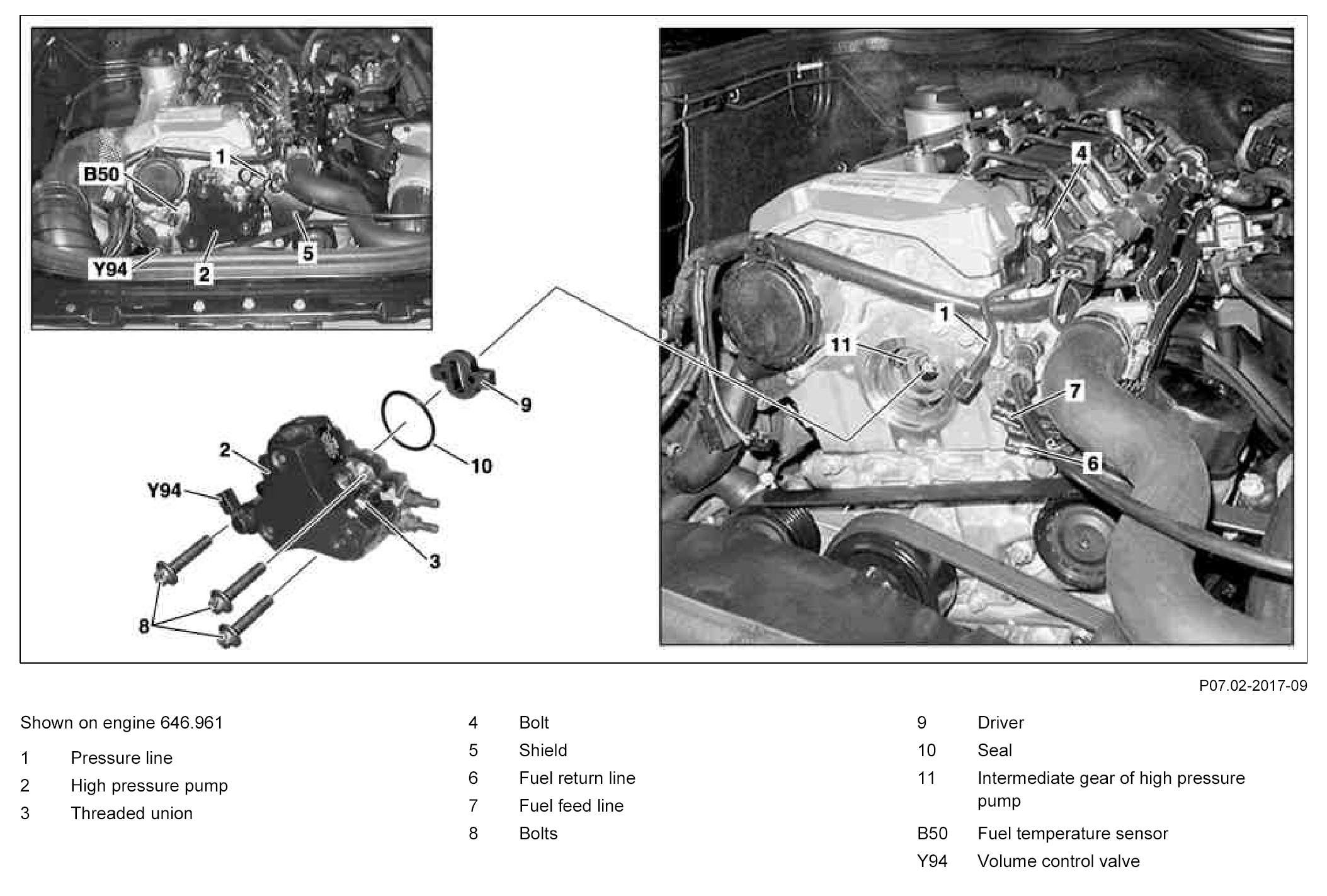

Component Identification:

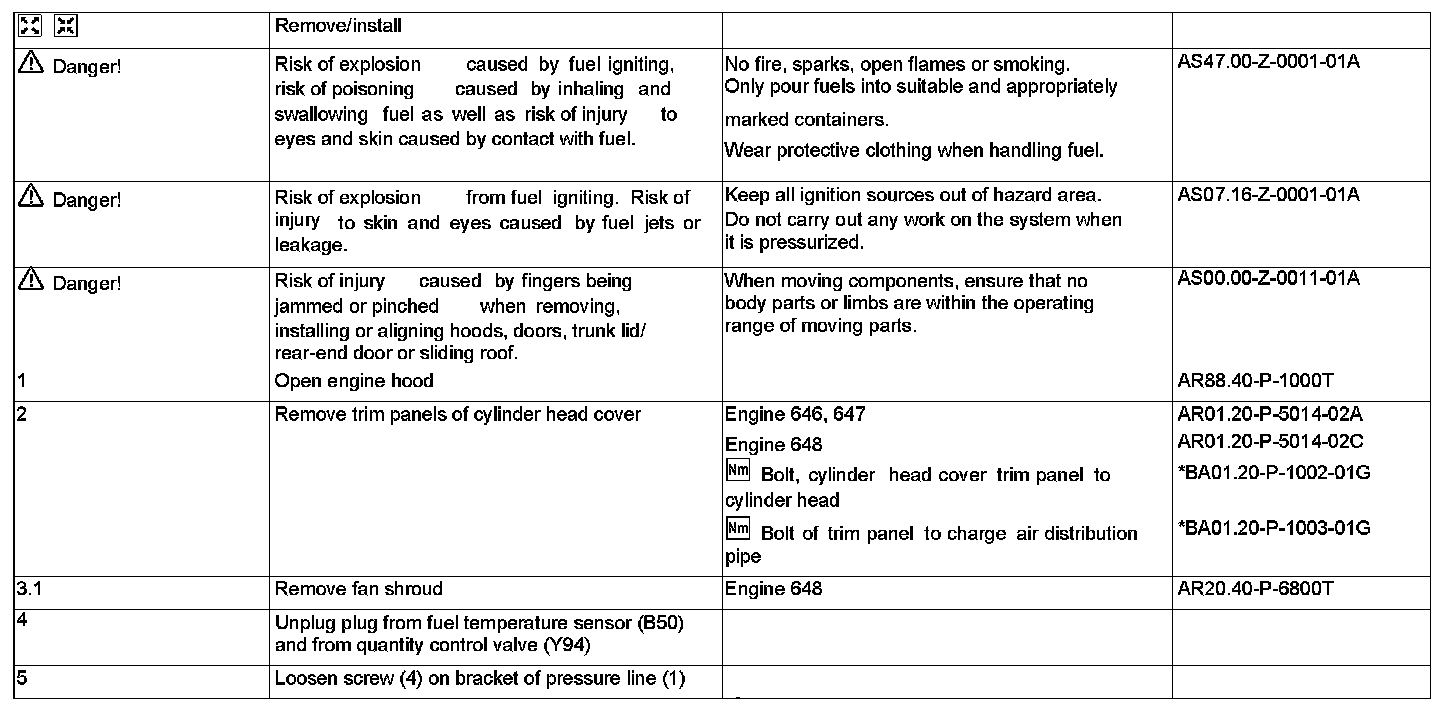

Steps 1 - 5:

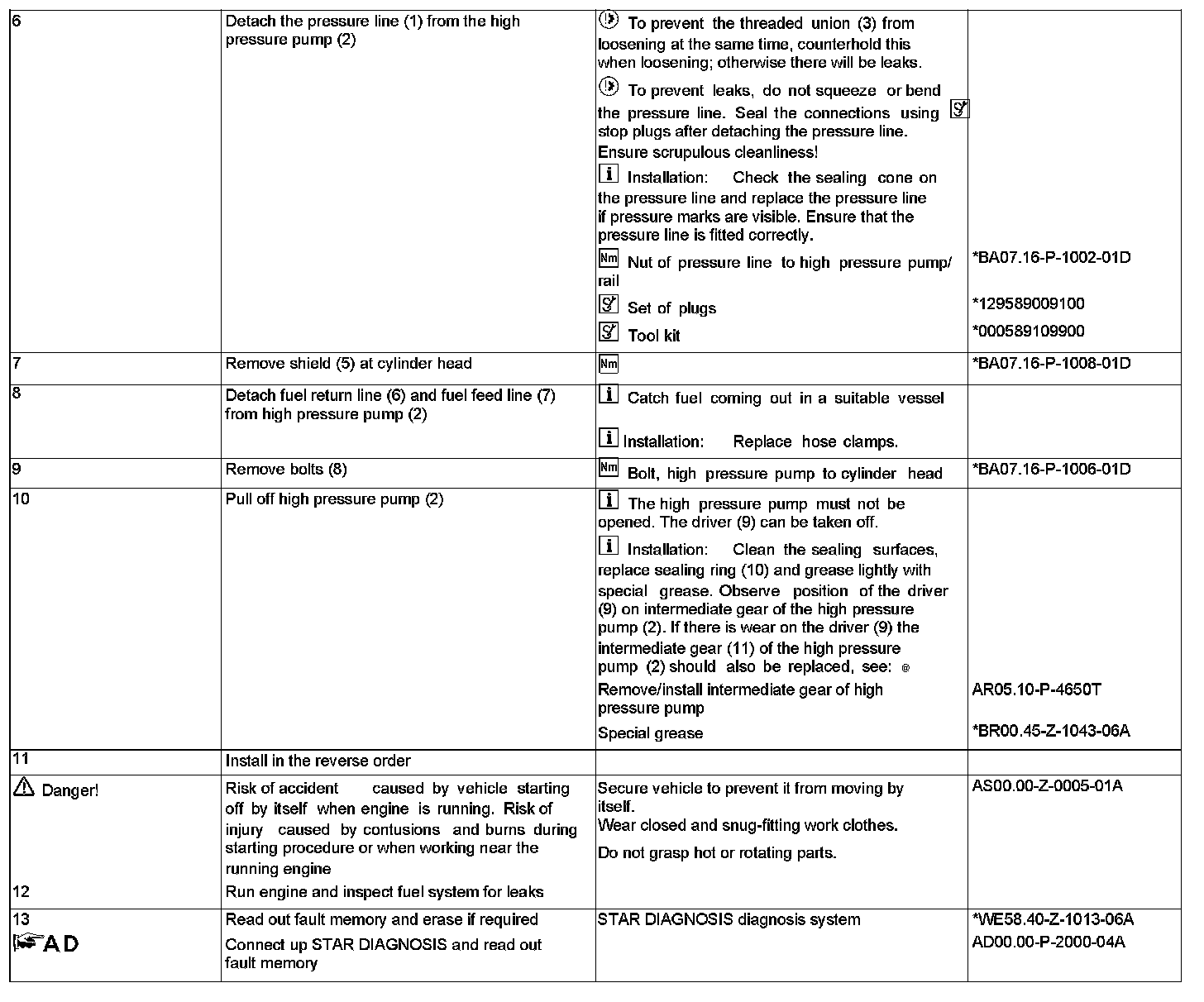

Steps 6 - 13:

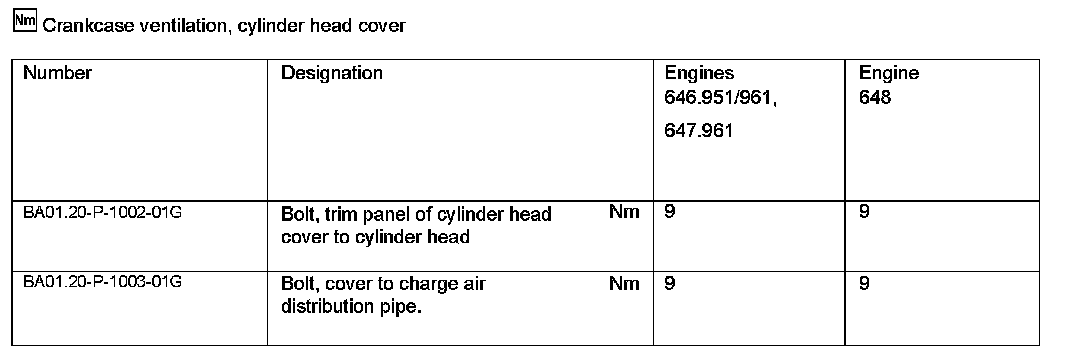

Crankcase Ventilation, Cylinder Head Cover:

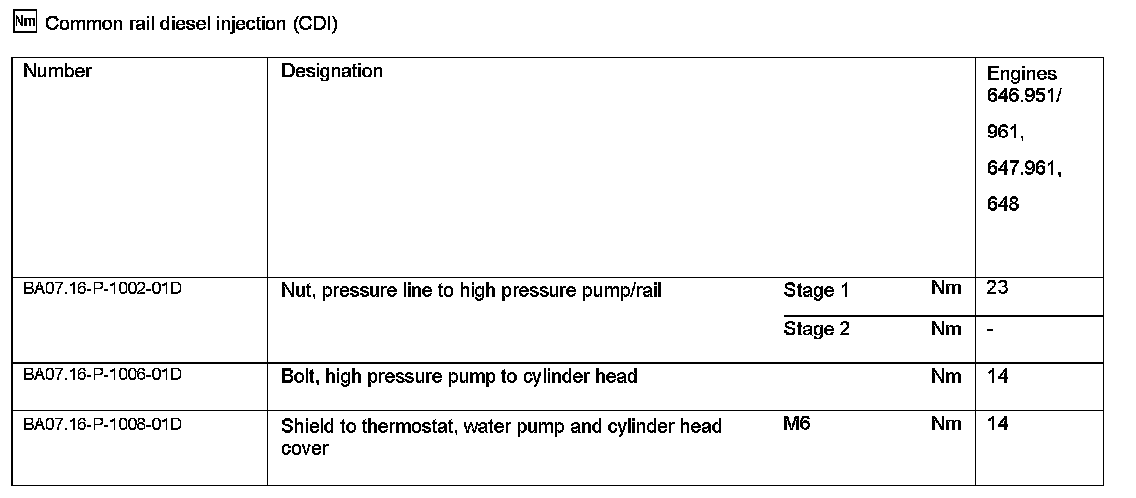

Common Rail Diesel Injection (CDI):

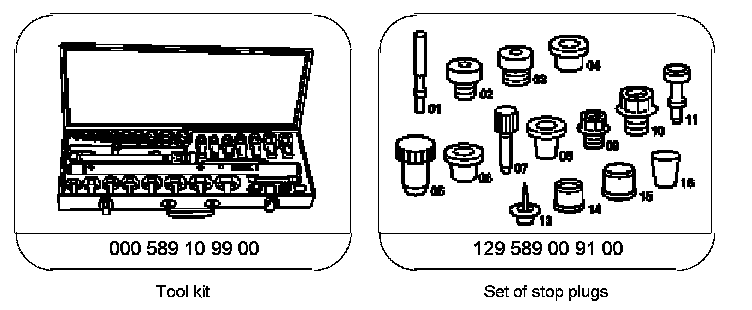

Special Tools:
AR07.02-P-1020T Removing/Installing the High Pressure Pump
