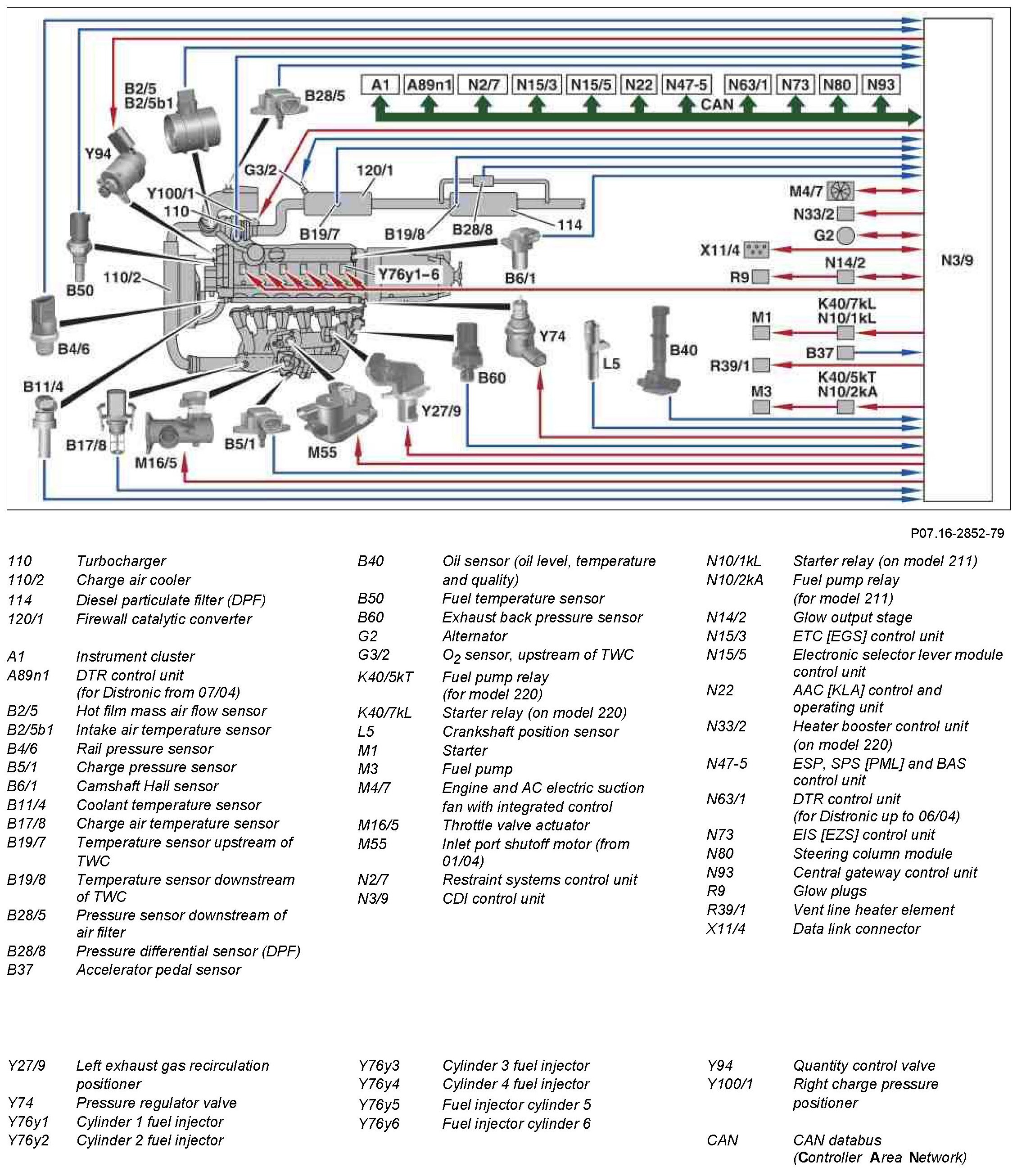

GF07.16-P-0001-03IL Common Rail Diesel Injection (CDI) - Function Diagram



GF07.16-P-0001-03IL Common Rail Diesel Injection (CDI) - Function Diagram
- with CODE (474) Particulate filter


with DPF


Component Identification:
