Oil Separator: Service and Repair
AR01.20-P-9750T Remove/install
oil separator

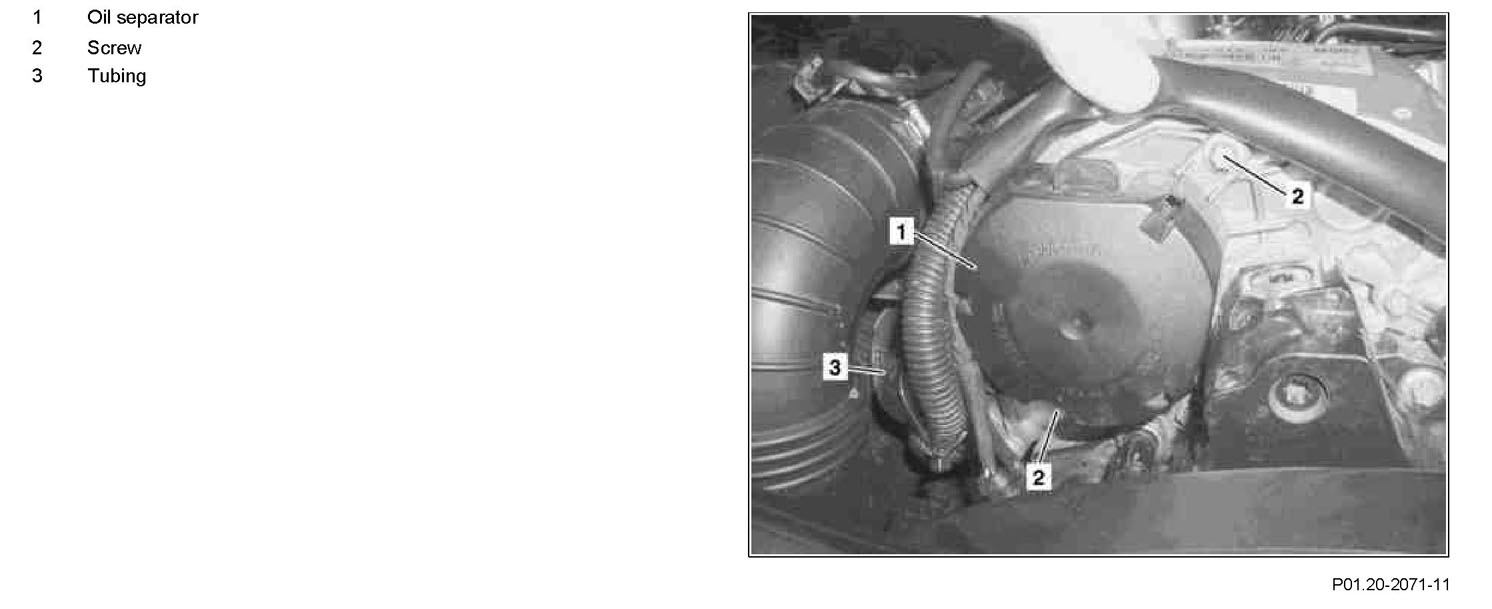

Component Identification:

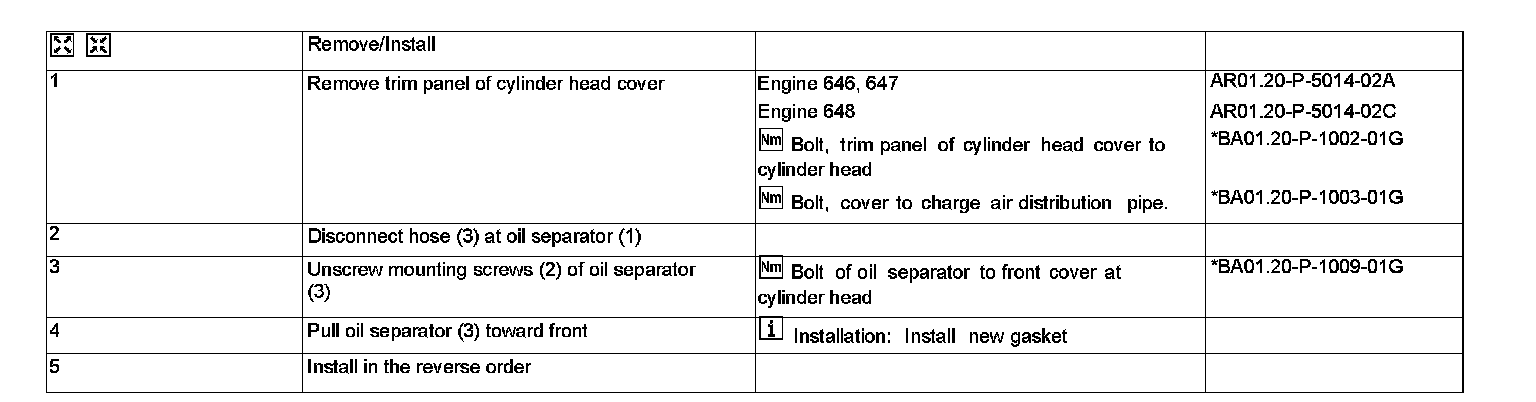

Steps 1-5:

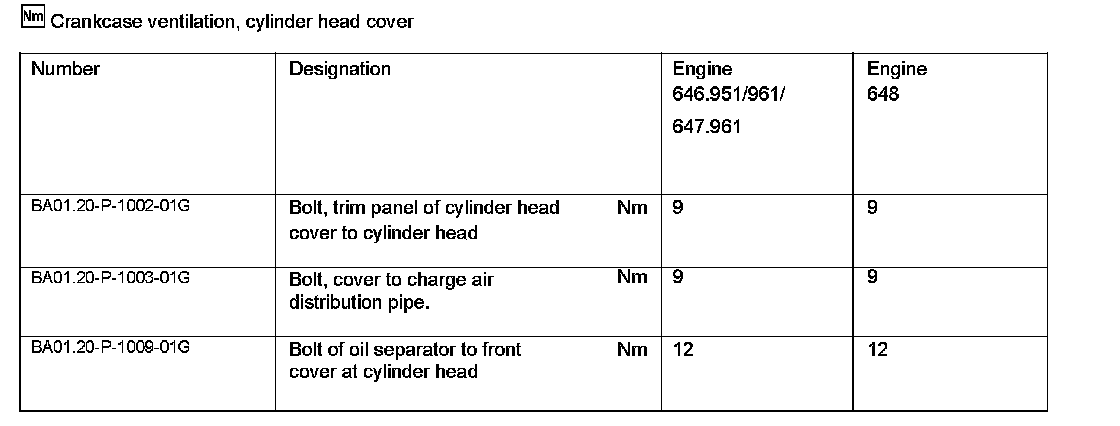

Crankcase Ventilation, Cylinder Head Cover:
