EGR Valve: Service and Repair
AR14.20-P-7662T Remove/Install Exhaust Gas Recirculation Valve

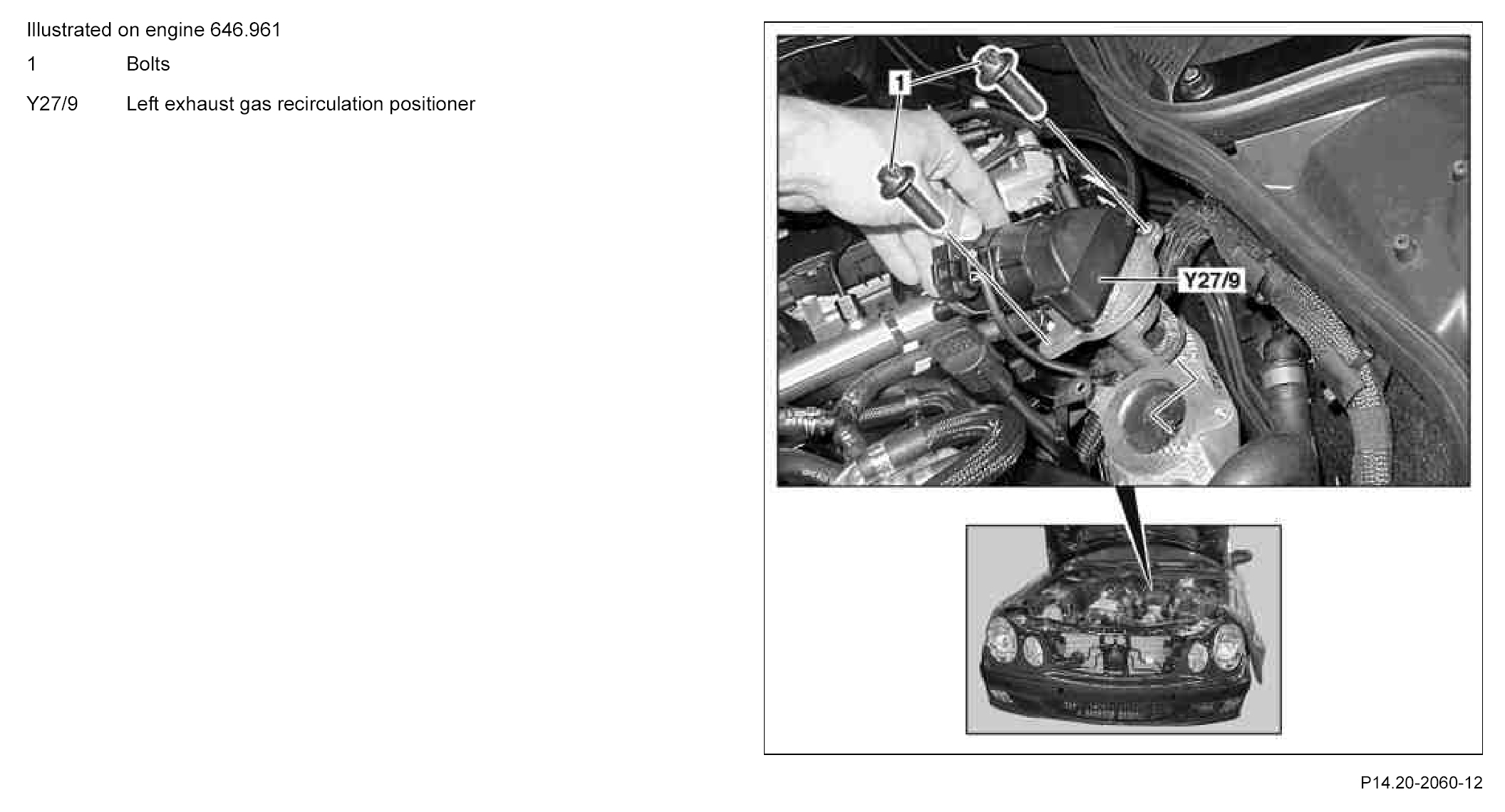

Component Identification:

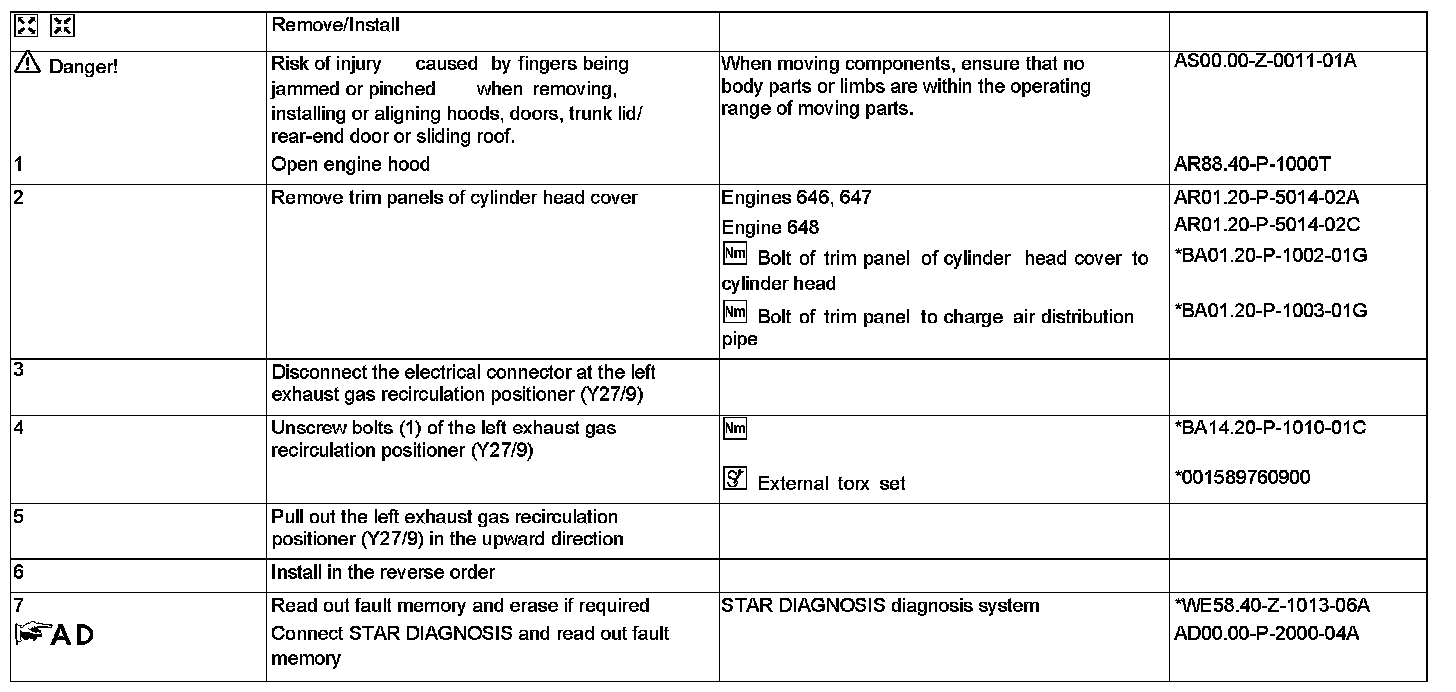

Steps 1 - 7:

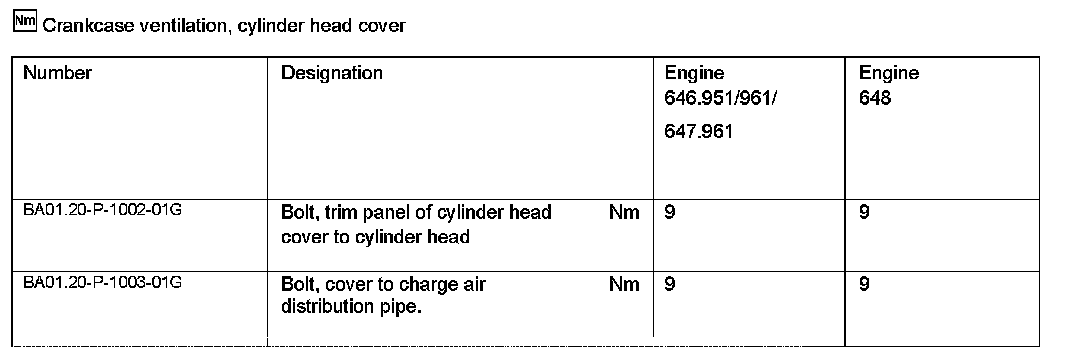

Crankcase Ventilation, Cylinder Head Cover:

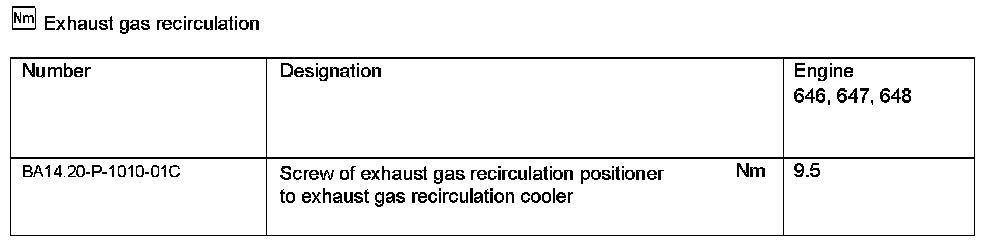

Exhaust Gas Recirculation:

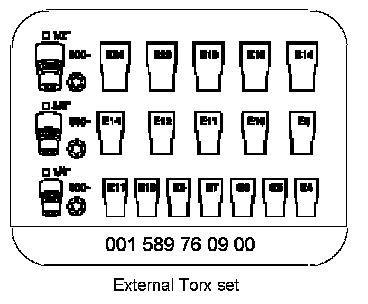

Special Tools:
AR14.20-P-7662T Remove/Install Exhaust Gas Recirculation Valve
