EGR Cooler: Service and Repair



AR14.20-P-7665TA Remove/Install Exhaust Gas Recirculation Cooler

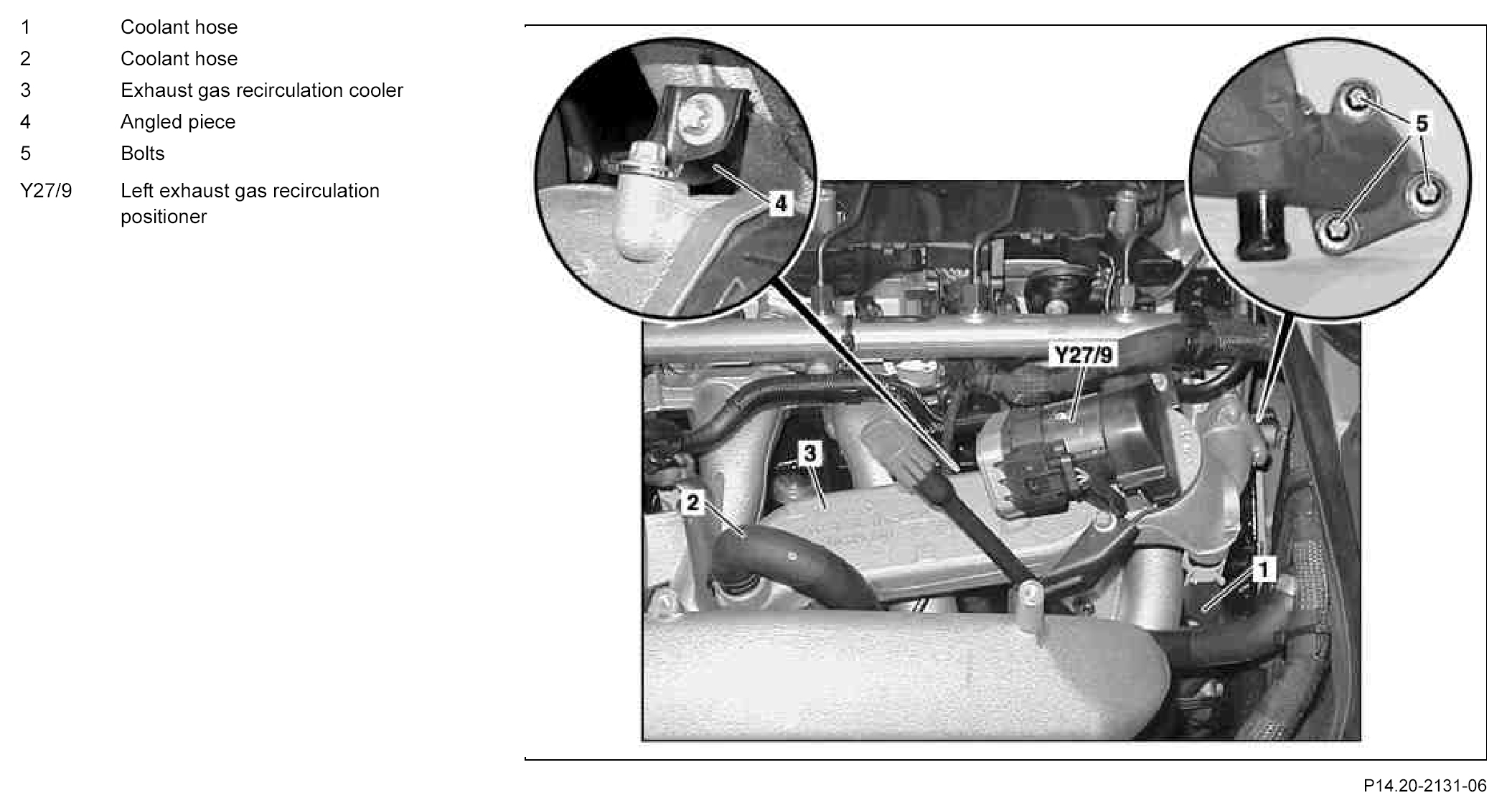

Component Identification:

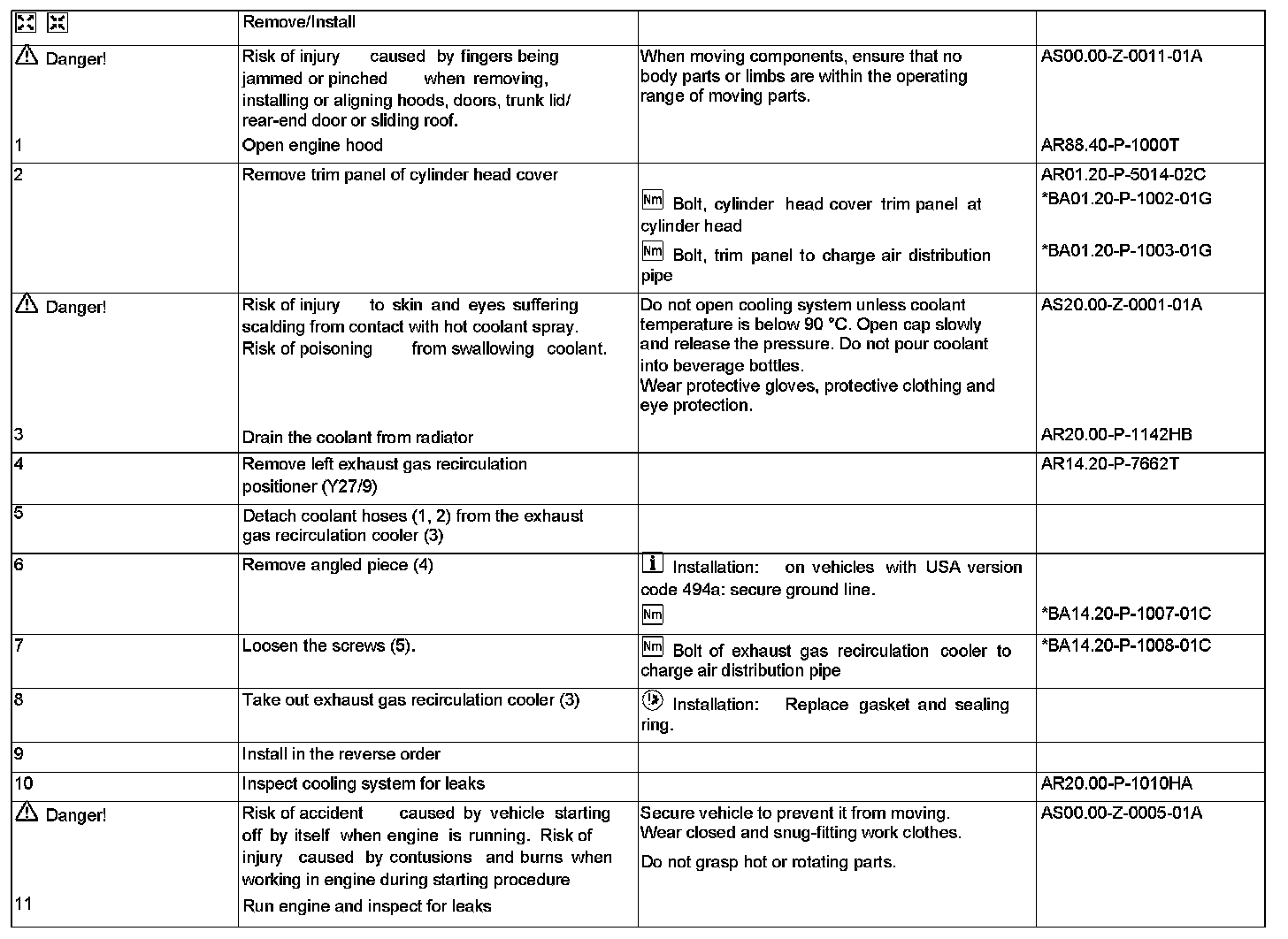

Steps 1 - 11:

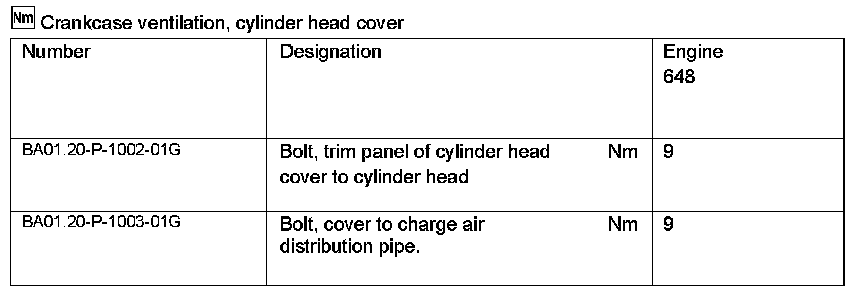

Crankcase Ventilation, Cylinder Head Cover:

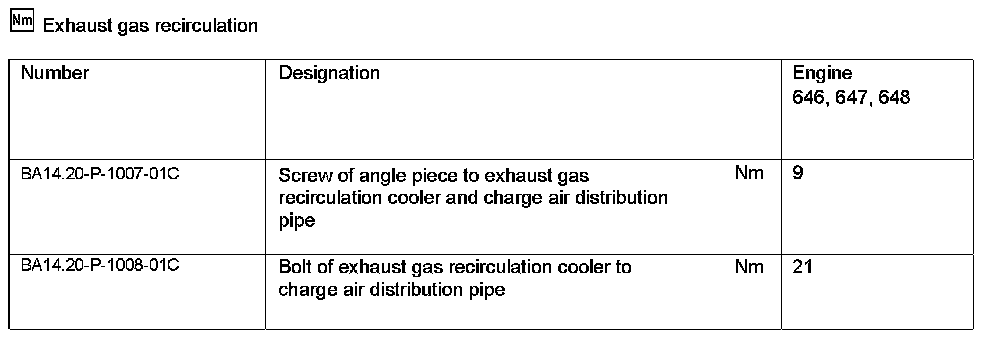

Exhaust Gas Recirculation:
