Common Rail Diesel Injection (CDI) PE07.16-U-2101DC (Sheet 1)



Common Rail Diesel Injection (CDI) PE07.16-U-2101DC (Sheet 1)
- CDI 3.23/3.43
- control module N3/9

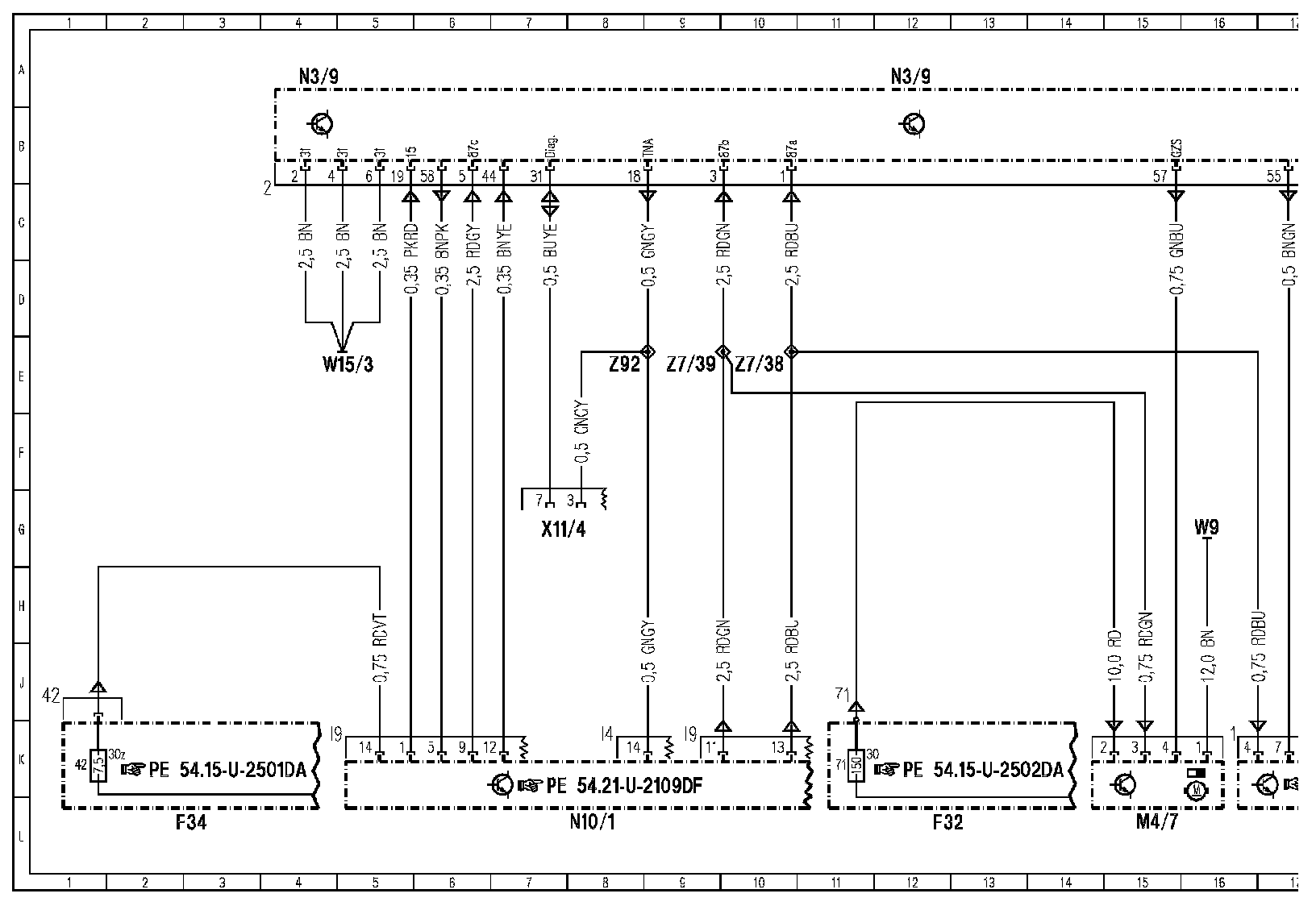

Wiring Diagram, Part 1:

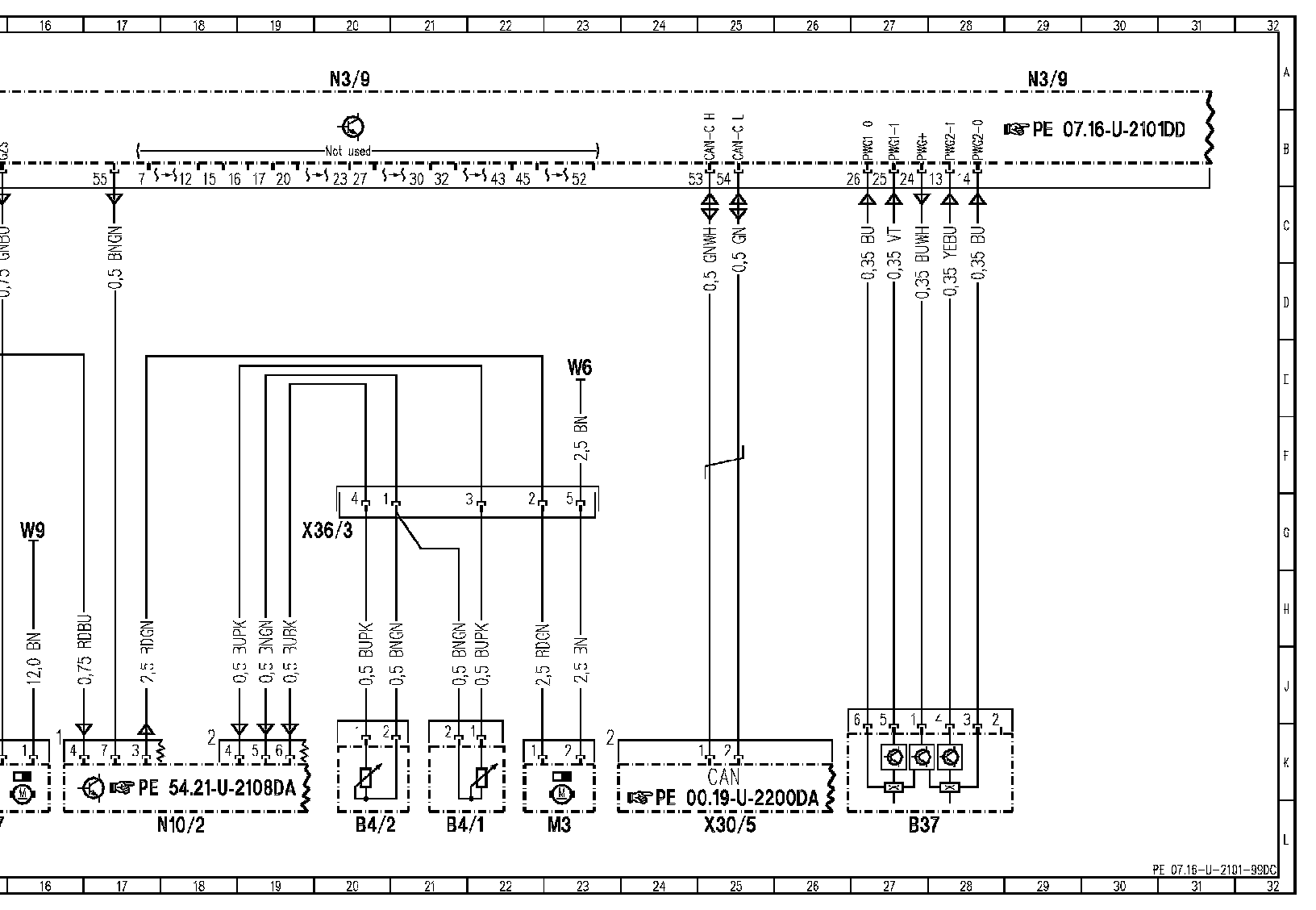

Wiring Diagram, Part 2:

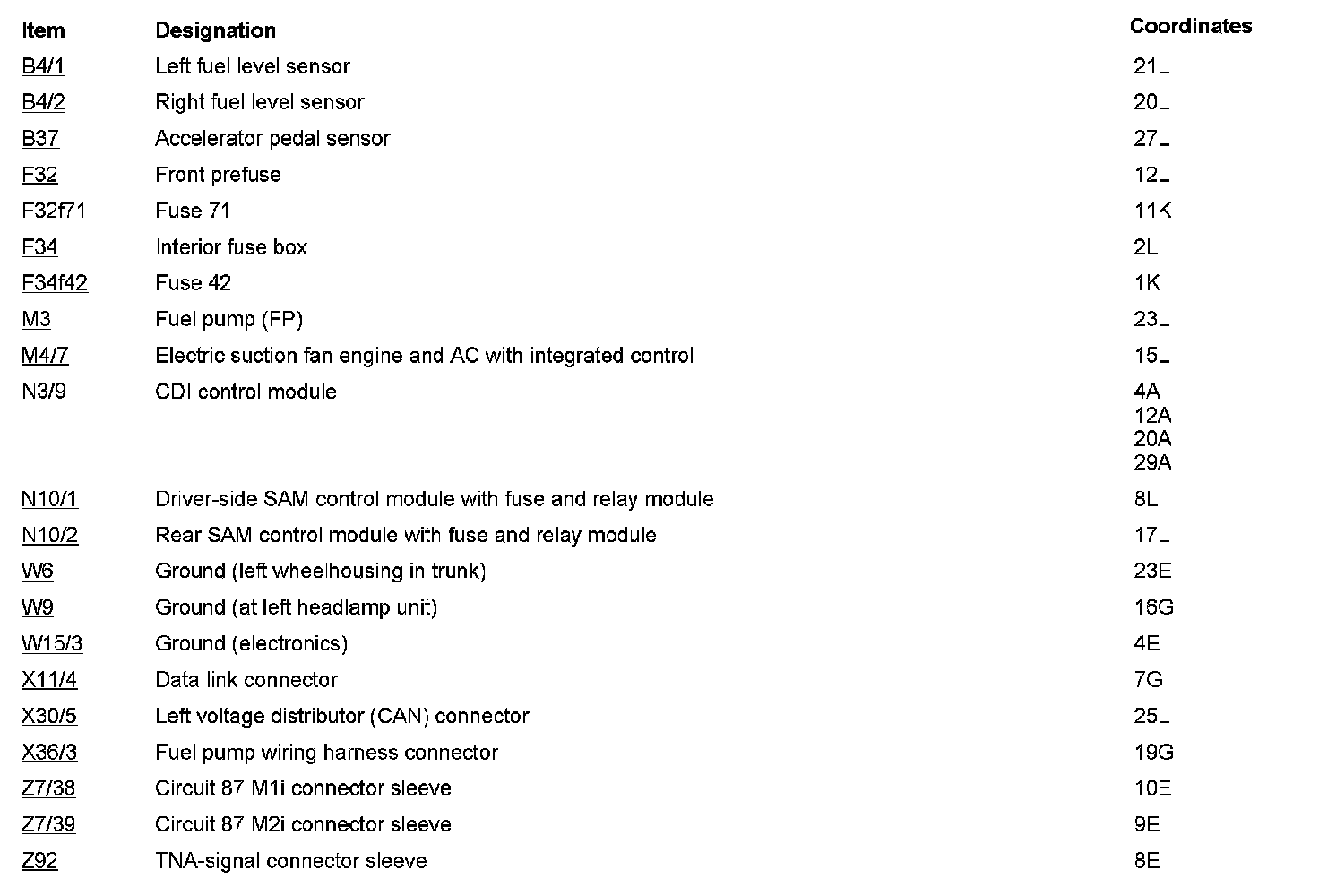

Component Description/Coordinates, B4/1 To Z92:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
