GF07.16-P-3020IC Quantity Mean Value Adaptation, CDI Function

GF07.16-P-3020IC Quantity Mean Value Adaptation, CDI Function
- with CODE (474) Particulate filter
- with CODE (926) Low emission EURO4
- with CODE (494) USA version

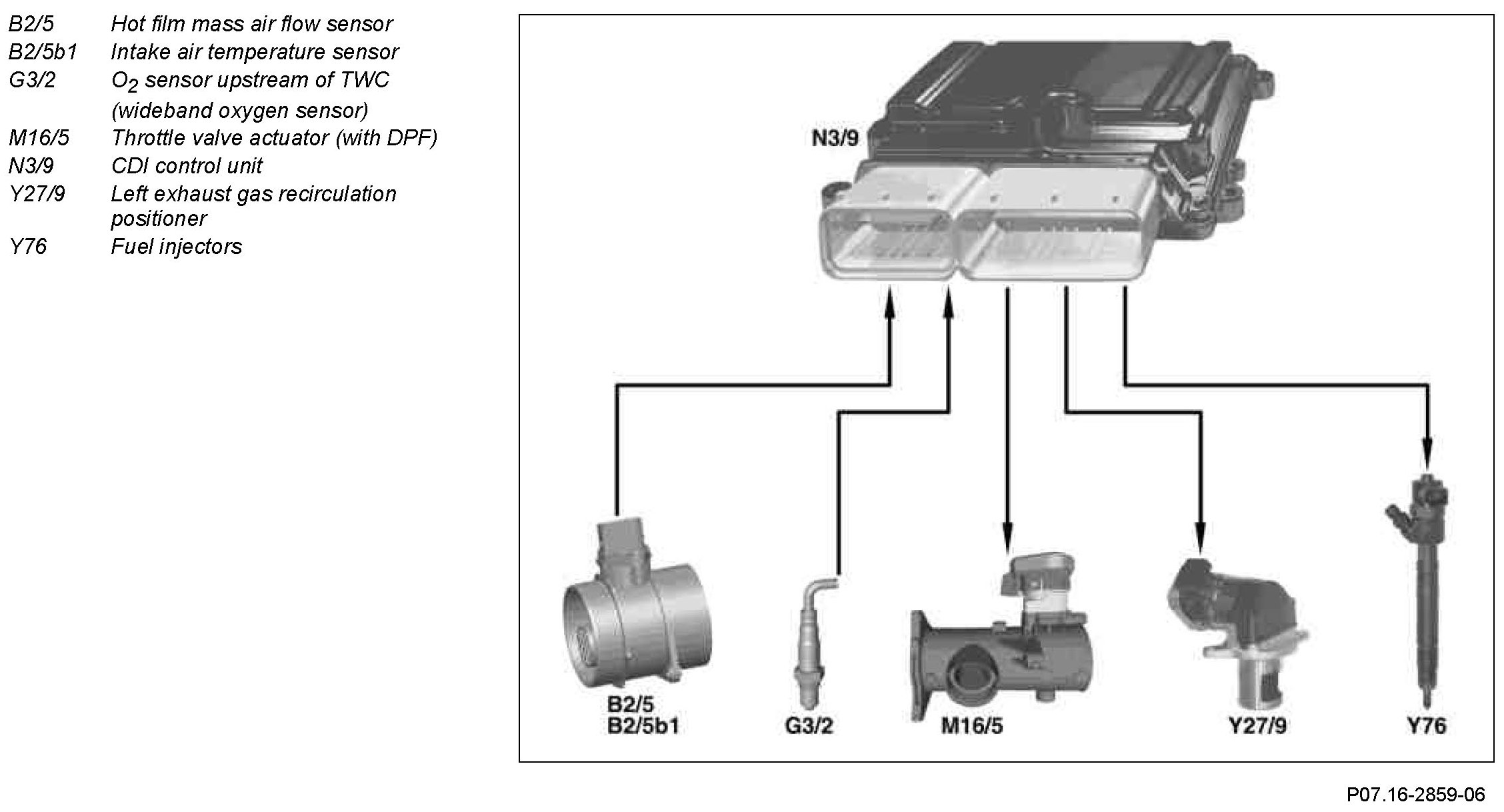

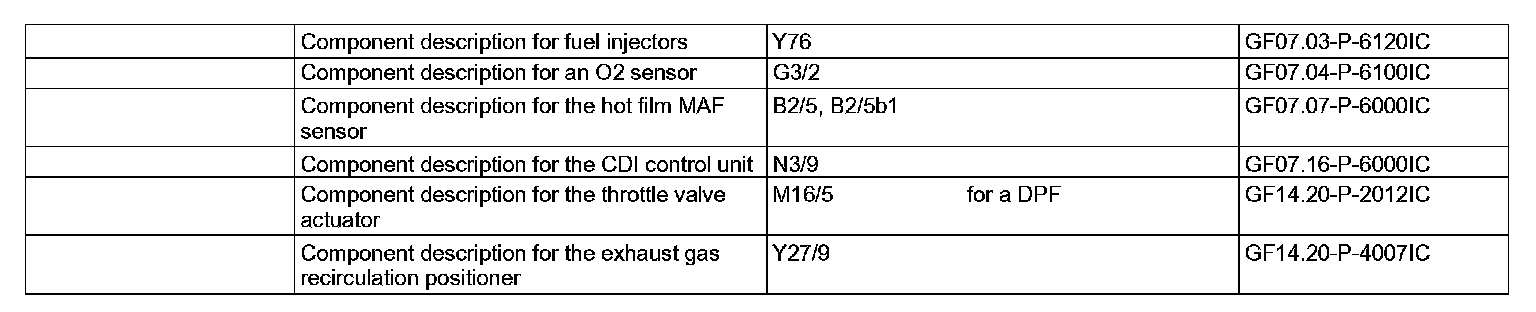

Component Identification:

Quantity mean value adaptation is a learn function of the CDI control unit. The measurement values of the hot film MAF sensor and the wide-band oxygen sensor are used to correct the exhaust gas recirculation rate in such a way that the emission levels are not worsened due to tolerances on the fuel injectors and the hot film MAF sensor.
