GF07.16-P-3011IC CDI External Quantity Control, Function

GF07.16-P-3011IC CDI External Quantity Control, Function

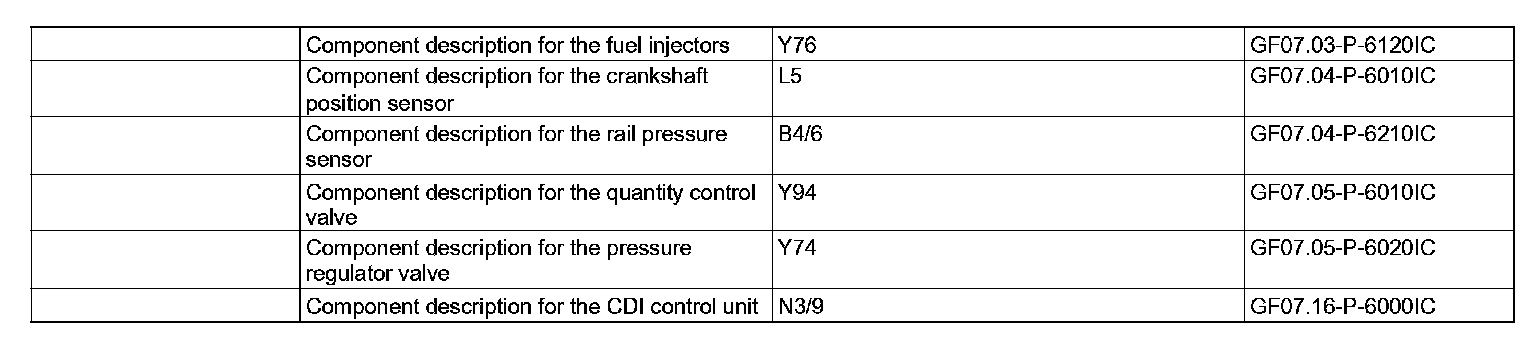

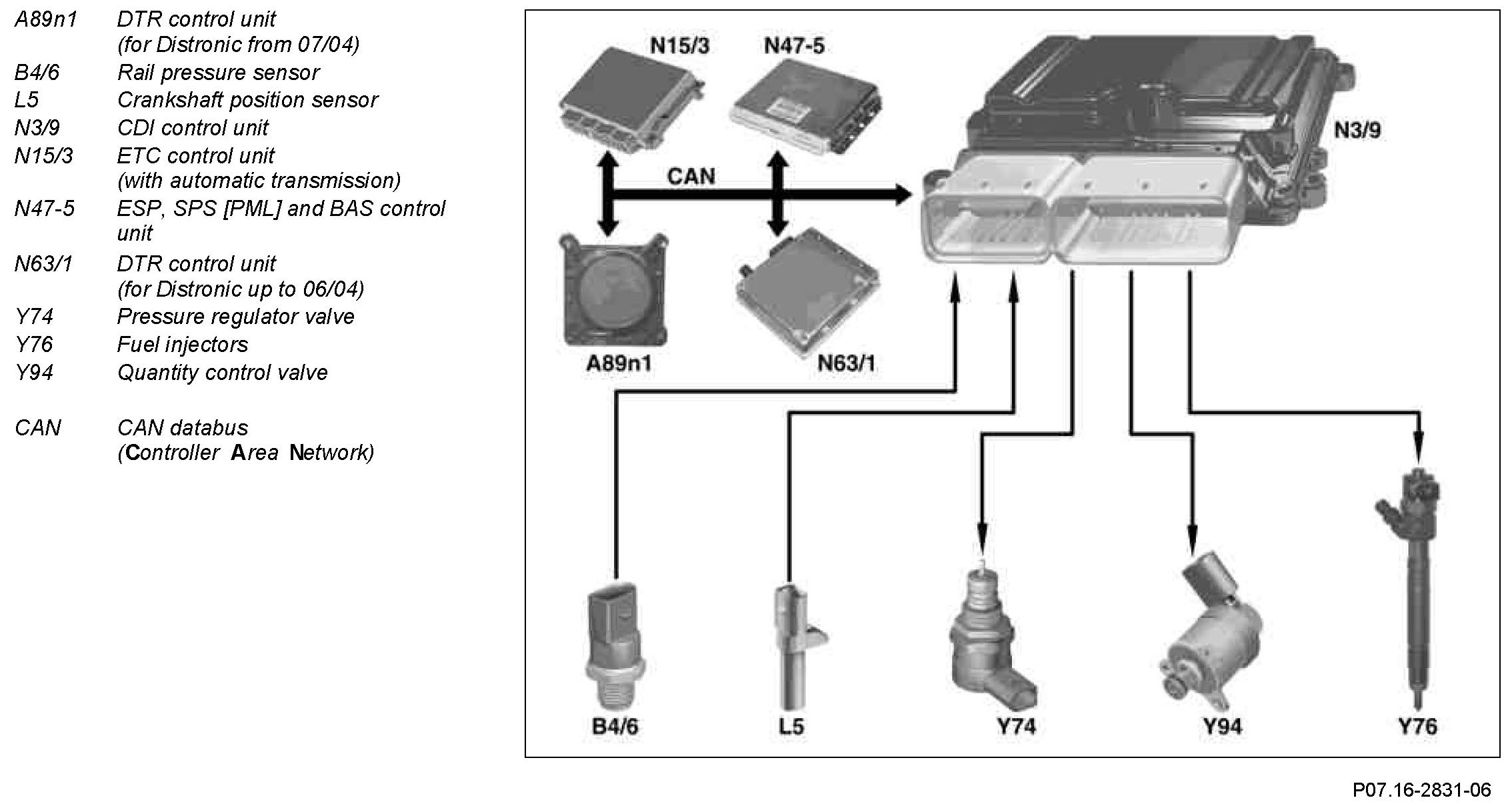

Component Identification:

With external quantity control, the engine torque is reduced by the CDI control unit.

The engine torque is reduced by reduction of the injection quantity, lowering of the rail pressure and a shortening of injection timing. For this purpose the ME control unit received matching signals via the CAN databus from the.
^ ESP control unit
^ ETC control unit (with automatic transmission)
^ DTR control unit (with Distronic)
