AR07.04-P-0080T Remove/Install O2 Sensor



AR07.04-P-0080T Remove/Install O2 Sensor

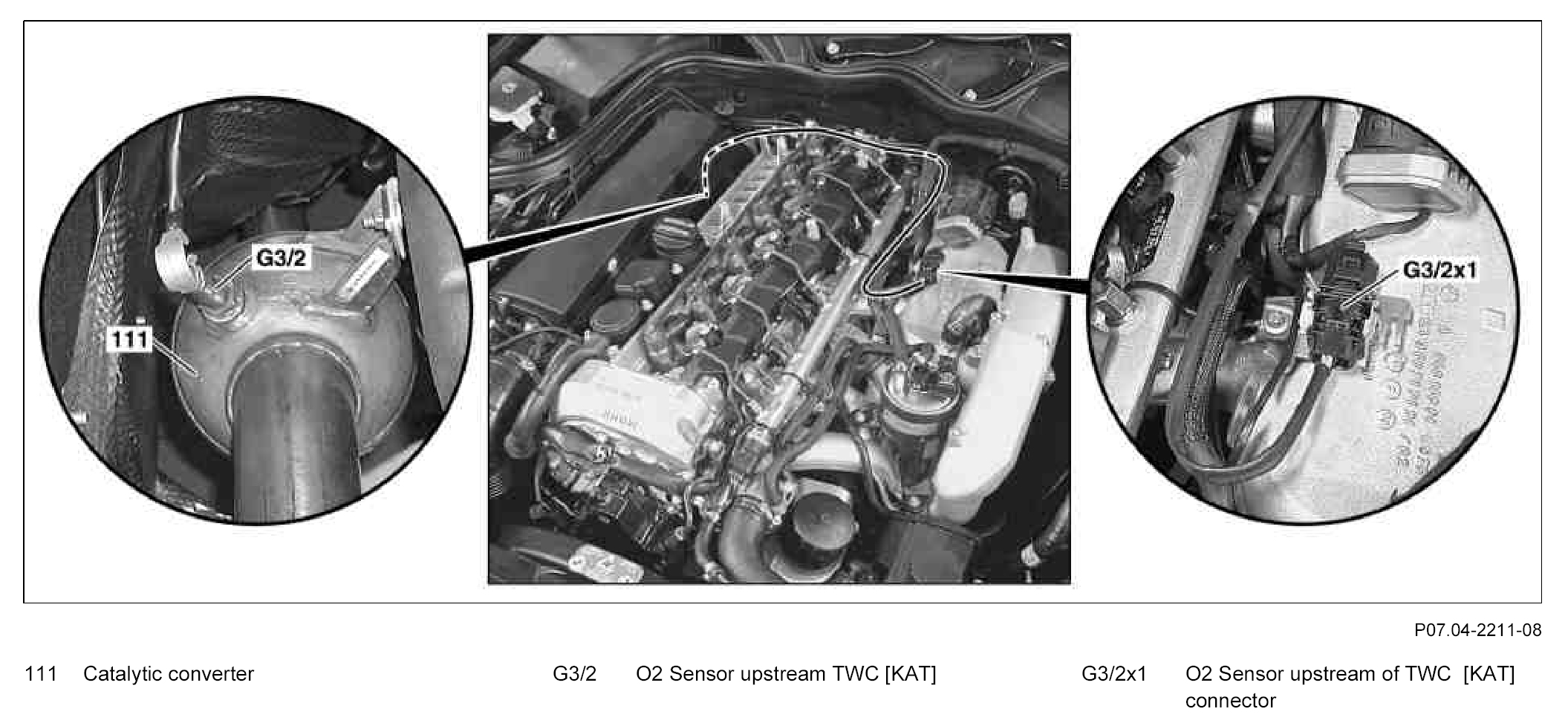

Component Identification:




Modification Notes:

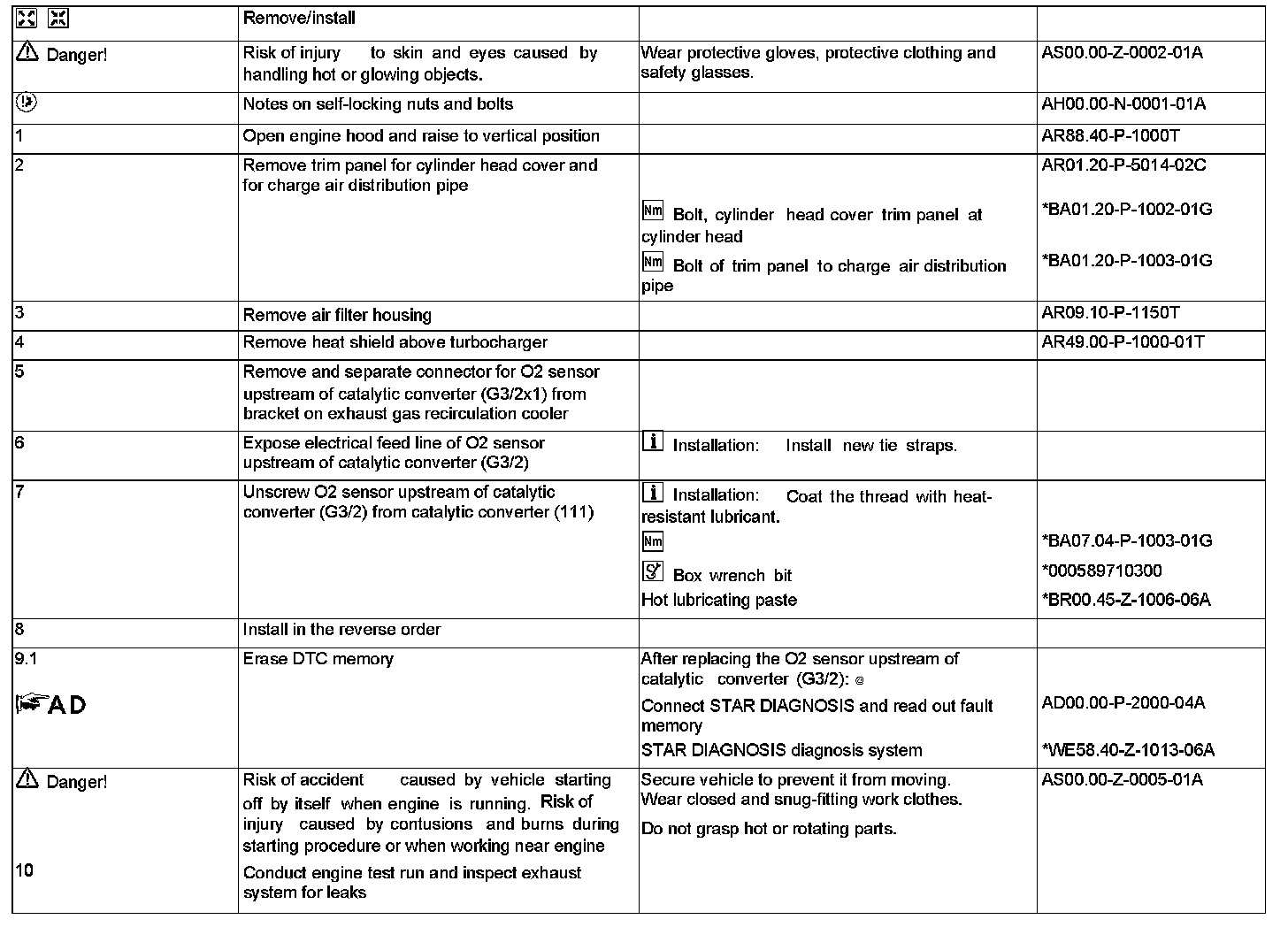

Steps 1 - 10:

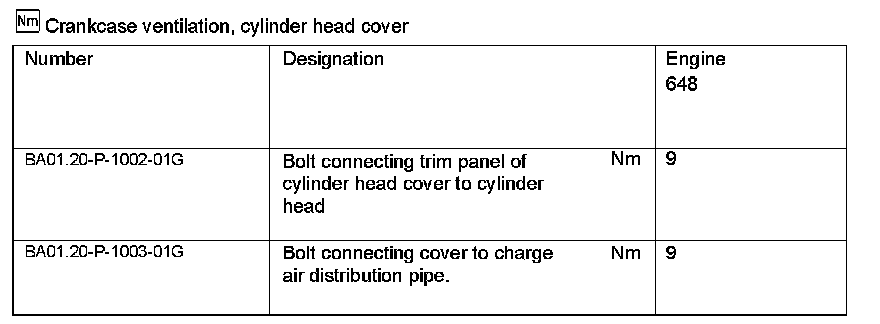

Crankcase Ventilation, Cylinder Head Cover:

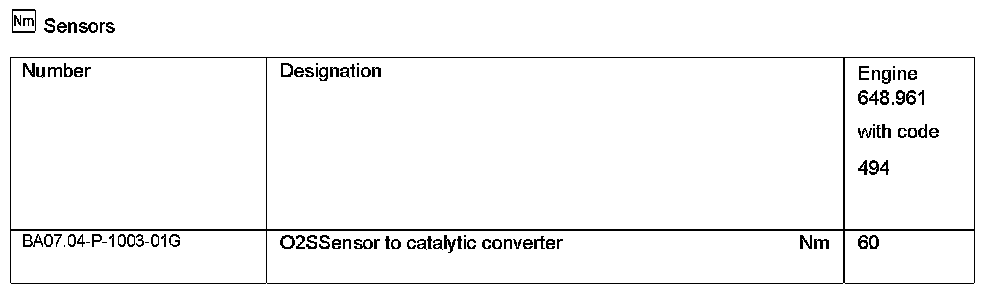

Sensors:

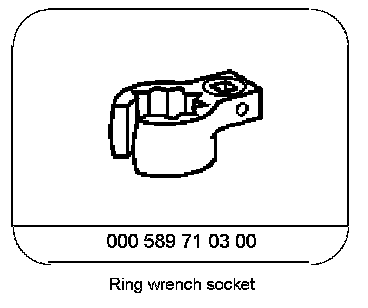

Special Tools:
