Crankshaft Position Sensor: Service and Repair



AR15.12-P-2133T Removing/Installing the Crankshaft Position Sensor


Component Identification:

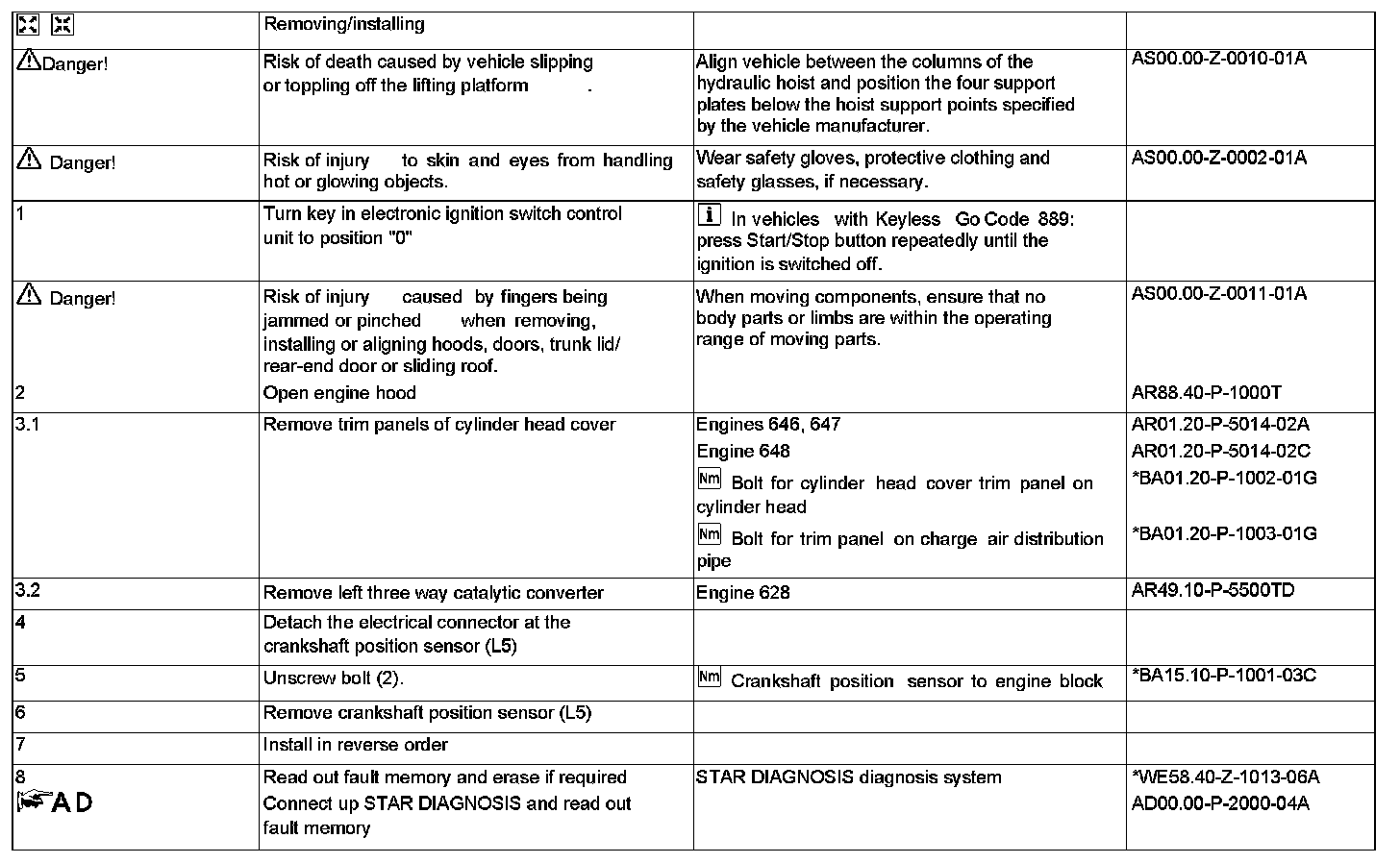

Steps 1 - 8:

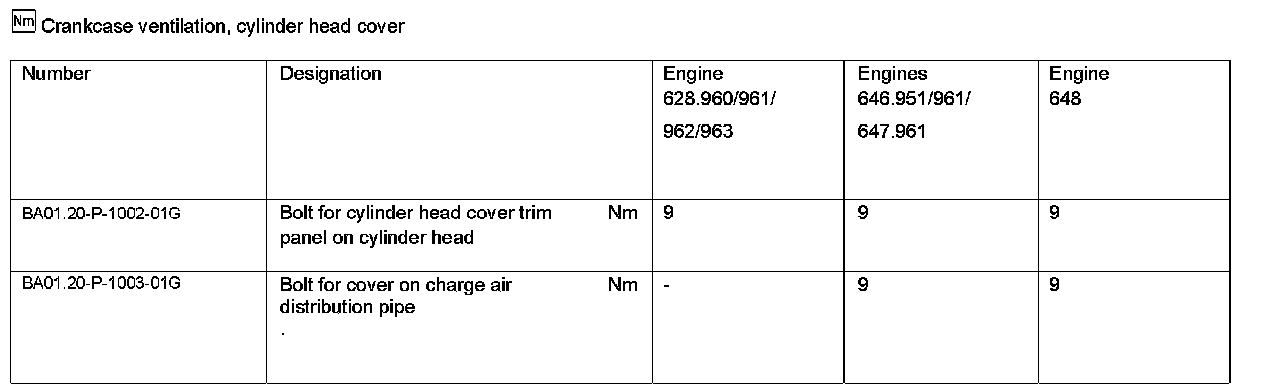

Crankcase Ventilation, Cylinder Head Cover:

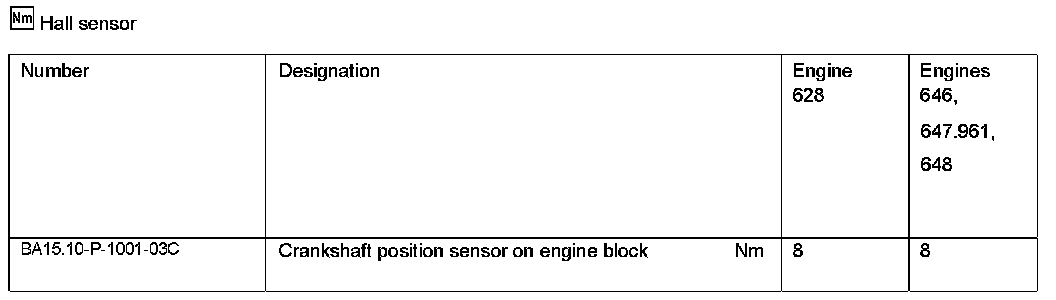

Hall Sensor:
