GF07.16-P-0001-07IC Common Rail Diesel Injection (CDI) Control Unit Output Signals



GF07.16-P-0001-07IC Common Rail Diesel Injection (CDI) Control Unit Output Signals

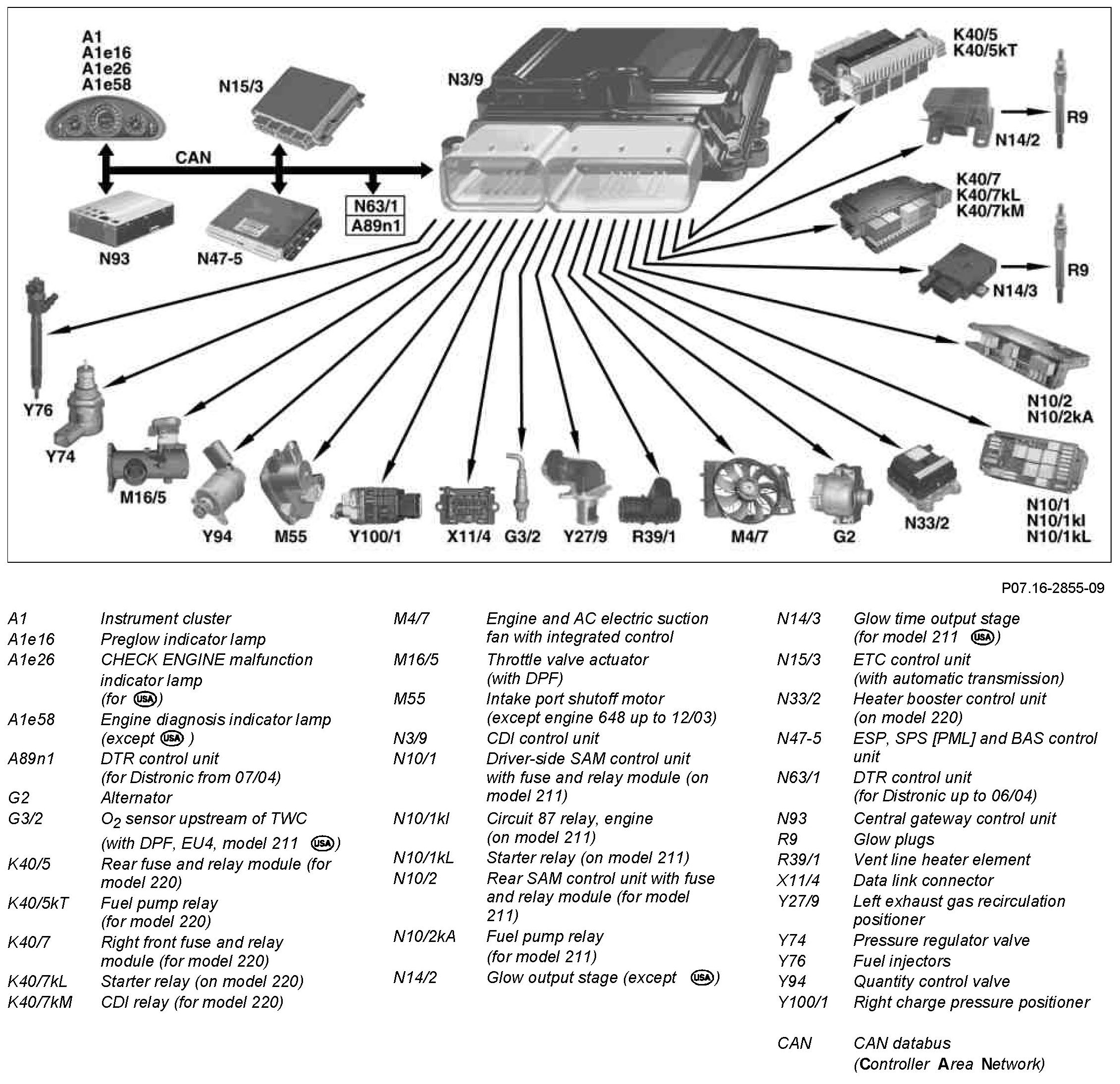

Component Identification:
