Coolant Temperature Sensor/Switch (For Computer): Service and Repair



AR15.60-P-2711T Remove/Install Coolant Temperature Sensor

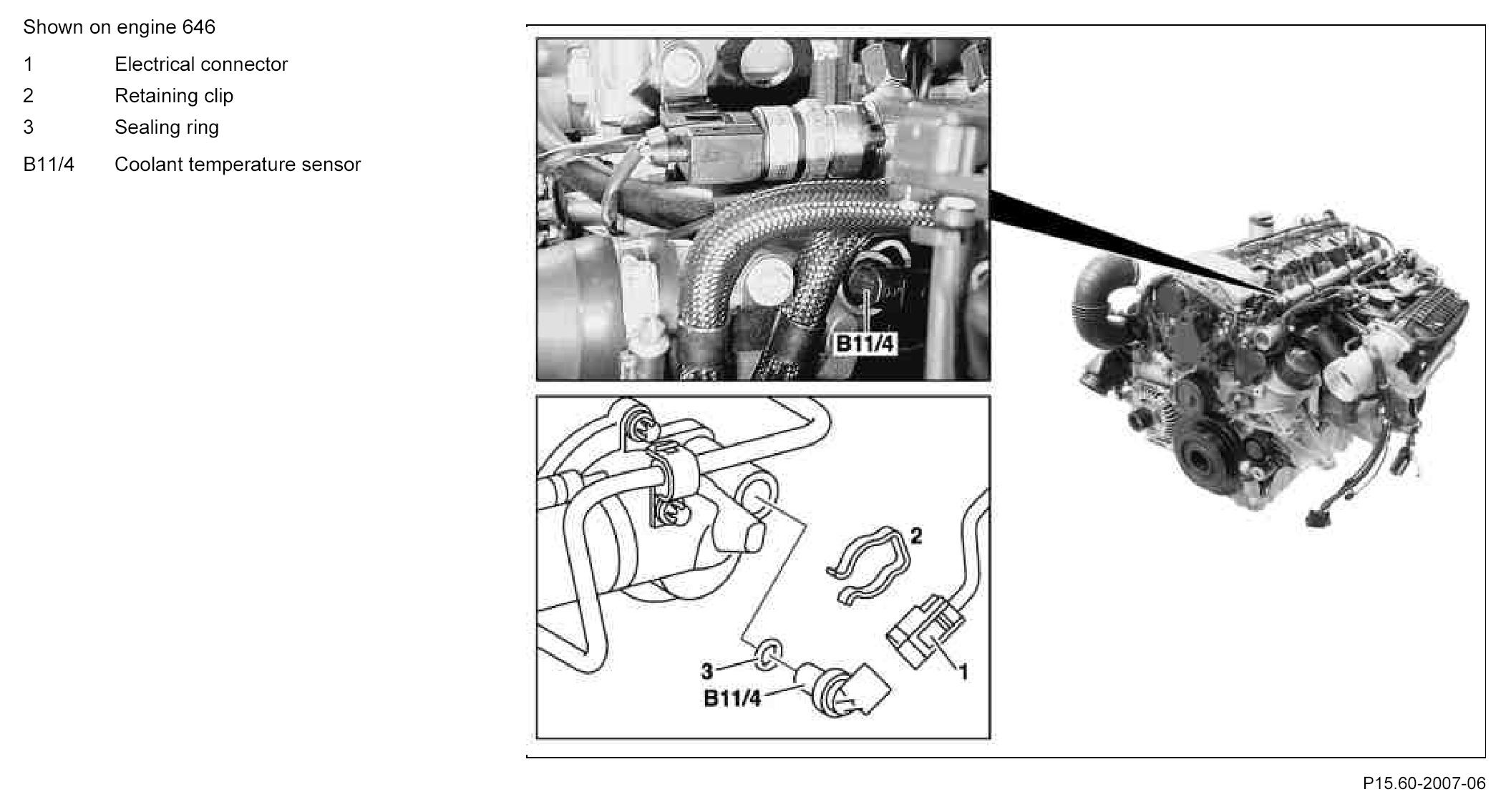

Component Identification:

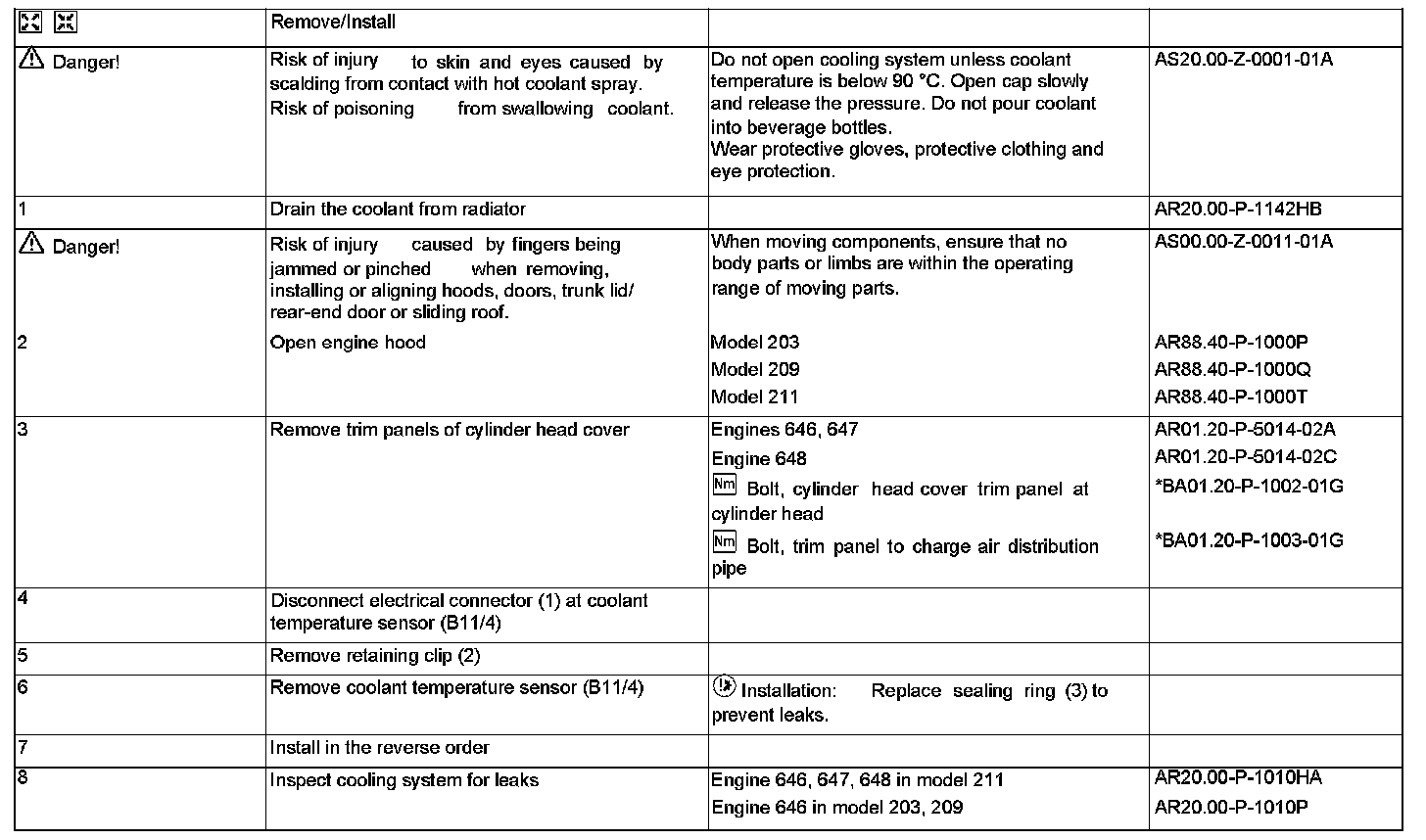

Steps 1 - 8:

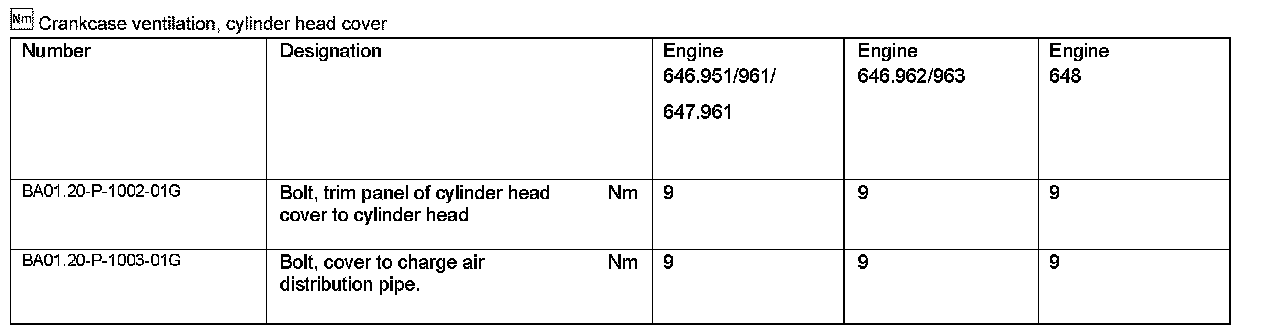

Crankcase Ventilation, Cylinder Head Cover:
