AR40.10-P-1040A Balancing Wheels



AR40.10-P-1040A Balancing wheels

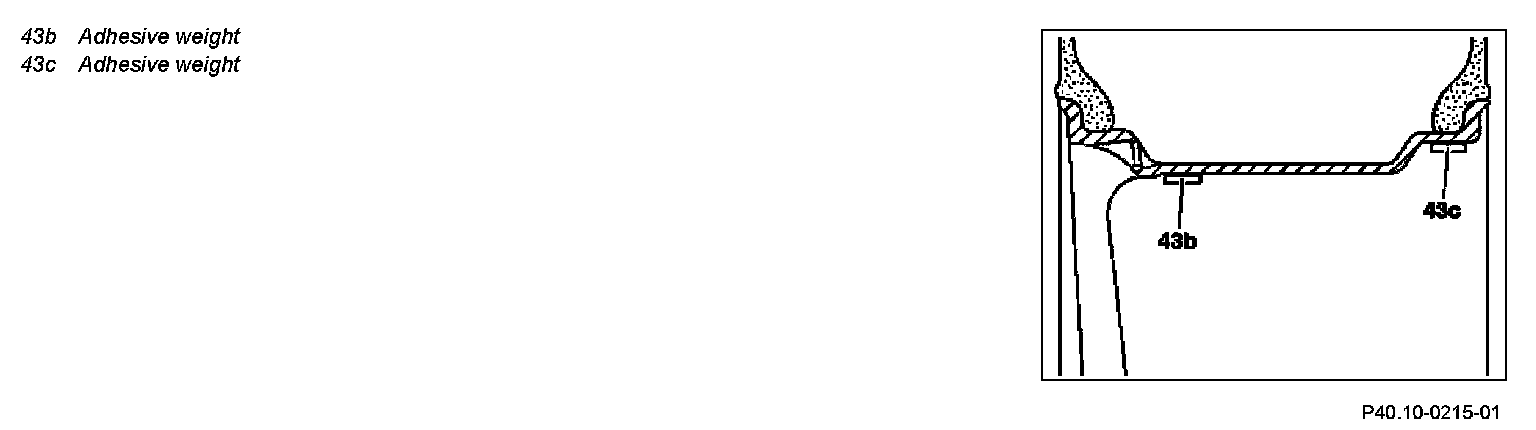

Component Identification:

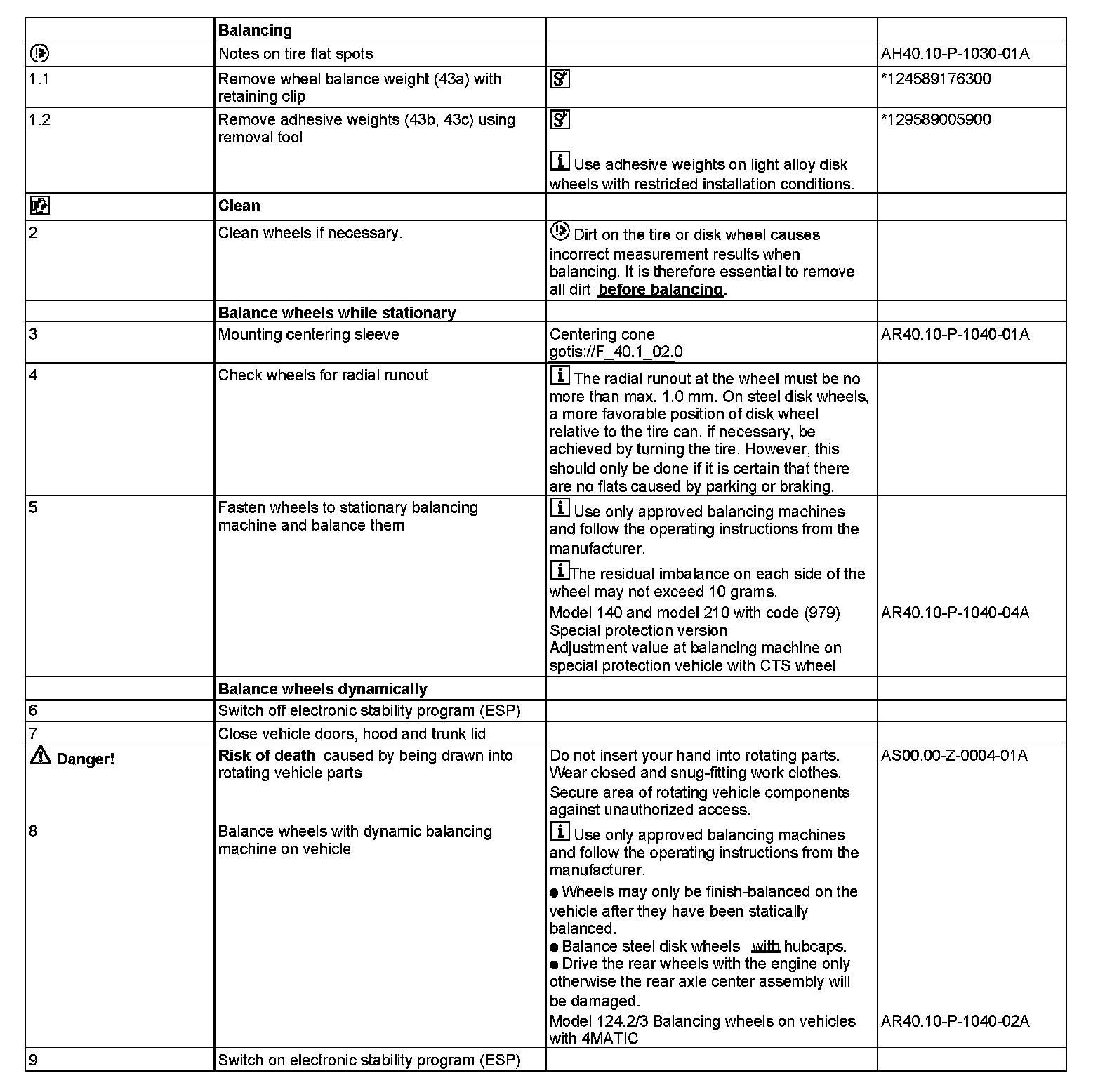

Steps 1.1-9:

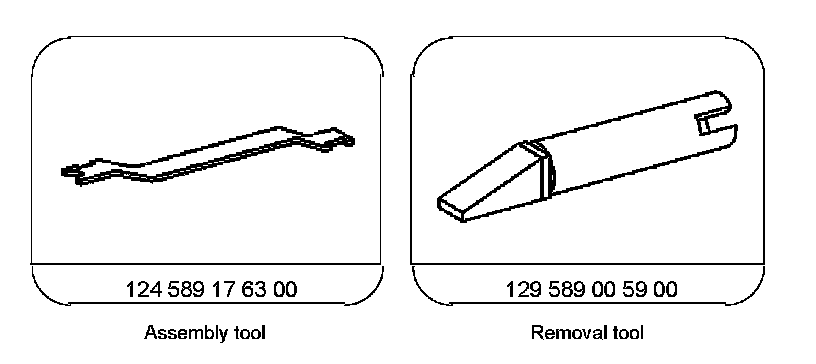

Special Tools:
