AR46.25-P-3015TB Remove/Install Hydraulic Line - High Pressure Expansion Hose

Remove/Install Hydraulic Line Of Power Steering
- High Pressure Expansion Hose

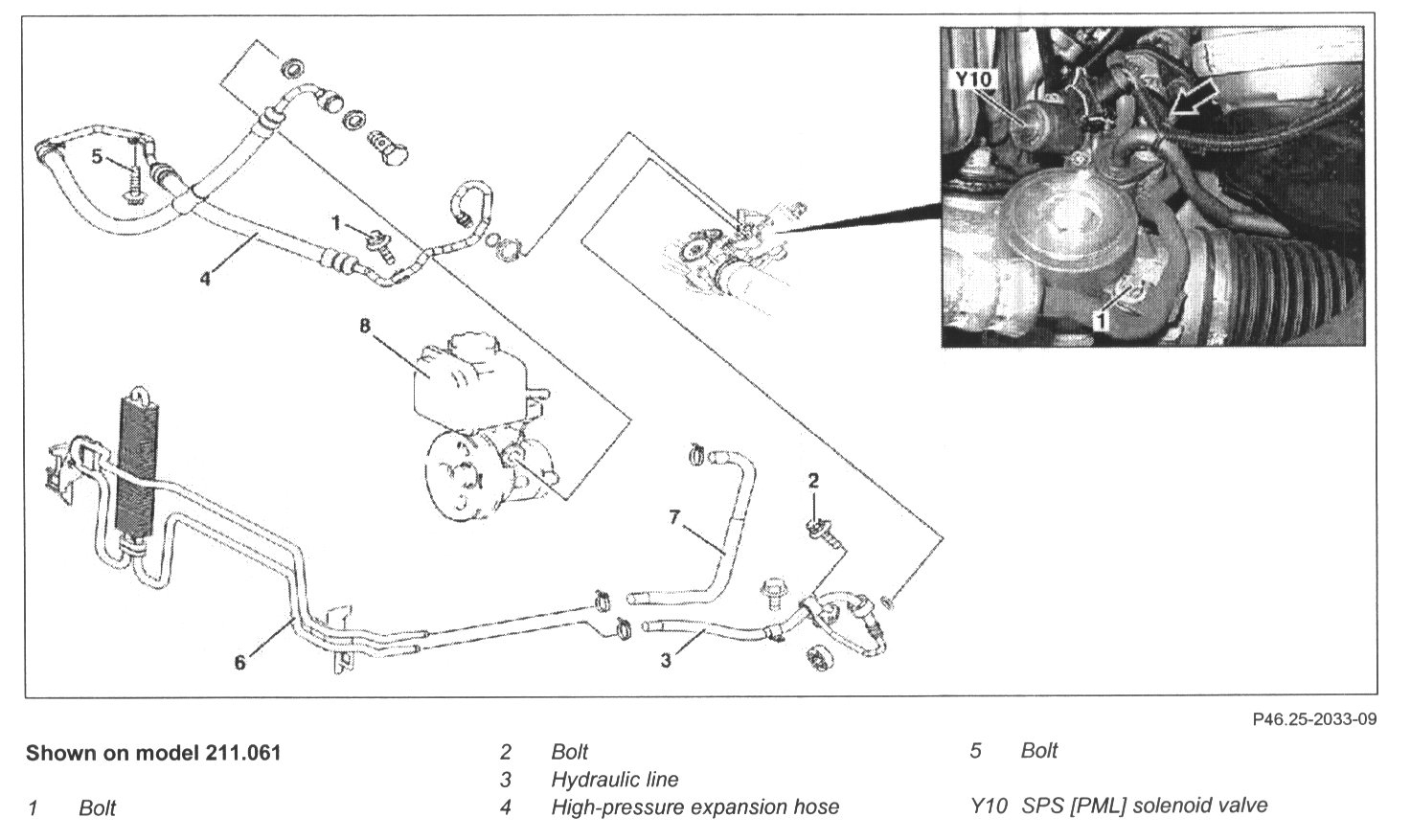

Shown On Model 211.061:

CAUTION: Before opening the hydraulic system the area surrounding the separation point should be cleaned thoroughly. Even the smallest dirt particles, introduced into the hydraulic components, can lead to malfunctions and a total failure of the hydraulic system

1.1 Remove trim panels of cylinder head cover
1.2 Remove the engine intake air duct upstream of the left air cleaner
2 Extract oil from power steering pump supply reservoir
3.1 Remove bottom section of sound-proofing capsule
3.2 Remove engine compartment paneling
4 Separate tie strap (arrow) and disconnect plug from SPS [PML] solenoid valve (Y10)
- Vehicles with speed-sensitive power steering (code 213a)

5 Unscrew screws (1)
6 Unscrew bolt (2) and remove hydraulic line (3) with high pressure expansion hose (4) from rack-and-pinion steering

NOTE:
- Seal off line connections with plugs.
- Installation: replace O-rings.

7 Detach high pressure expansion hose (4) from oil pan, to do this, unscrew bolts (5)
8 Disconnect high-pressure expansion hose (4) from power steering pump
9 Remove high pressure expansion hose (4) downwards
10 Install in the reverse order
11 Filling and bleeding power steering pump
12 Check function of power steering and for leaks.
