Engine Oil: Adjustments

AR18.00-P-3035-01BD Check Oil Level








120 589 06 21 00
Dipstick





120 589 07 21 00
Measuring rod





1 Position vehicle with warm engine on an even surface.
2 Switch off engine and maintain a waiting time of approx. 5 minutes.

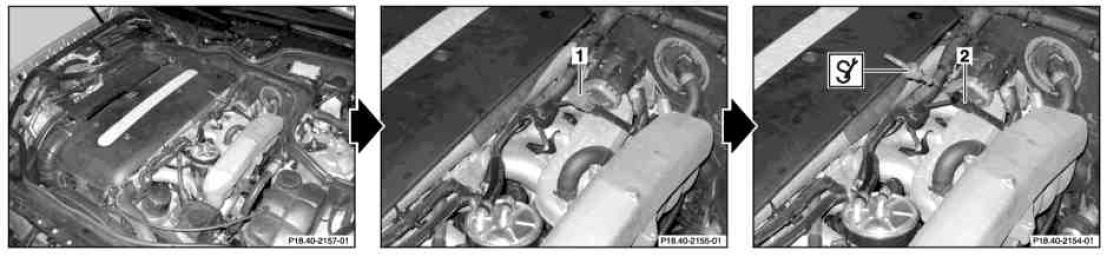

3 Detach cap (1) of dipstick guide tube (2).
4 Insert dipstick into the dipstick guide tube (2) all the way and leave there for at least 3 seconds.
5 Read off oil level at dipstick.

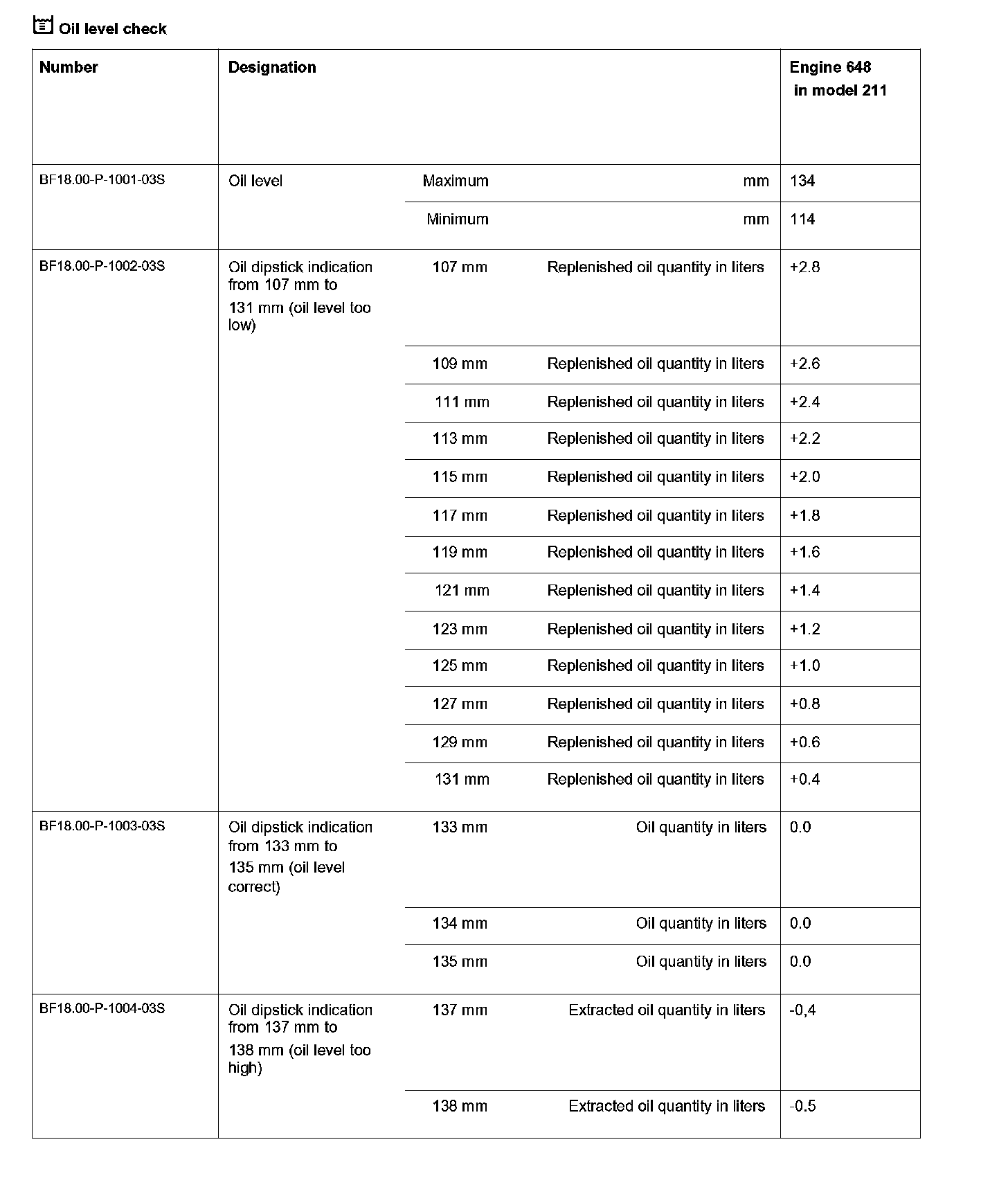

6 Establish oil replenishment amount from the oil level table.
7 Adjust engine oil level correctly, if required.
8 Place plug (1) onto oil dipstick guide tube (2).
