AR13.22-P-3902-01T Slacken Poly-V-Belt Pin For Locking Poly-V-Belt Tensioning Device

AR13.22-P-3902-01T Slacken Poly-V-belt Pin For Locking Poly-V-belt Tensioning Device

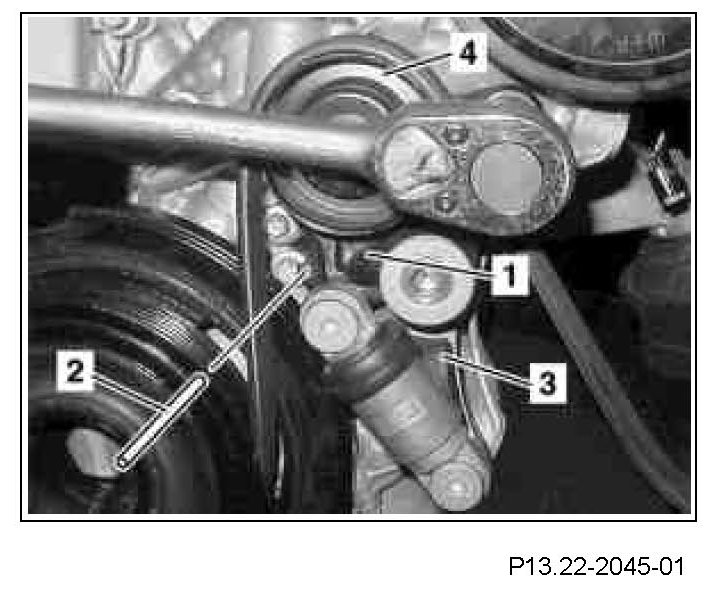

1 Turn front part of tensioning device (1) anti-clockwise (arrow) against force of spring.

Shown on engine 646.9







2 Insert pin (2) (tool to be shop-made) through holes lying one above the other in the front part of the tensioning device (1) and housing (3) in order to lock tensioner pulley (4) in this position.
