FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2006
>>
E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Maintenance
>>
Drive Belt
>>
Service and Repair
>>
AR13.22-P-1202T Remove/Install Poly-V-Belt
AR13.22-P-1202T Remove/Install Poly-V-Belt
AR13.22-P-1202T Remove/Install Poly-V-Belt

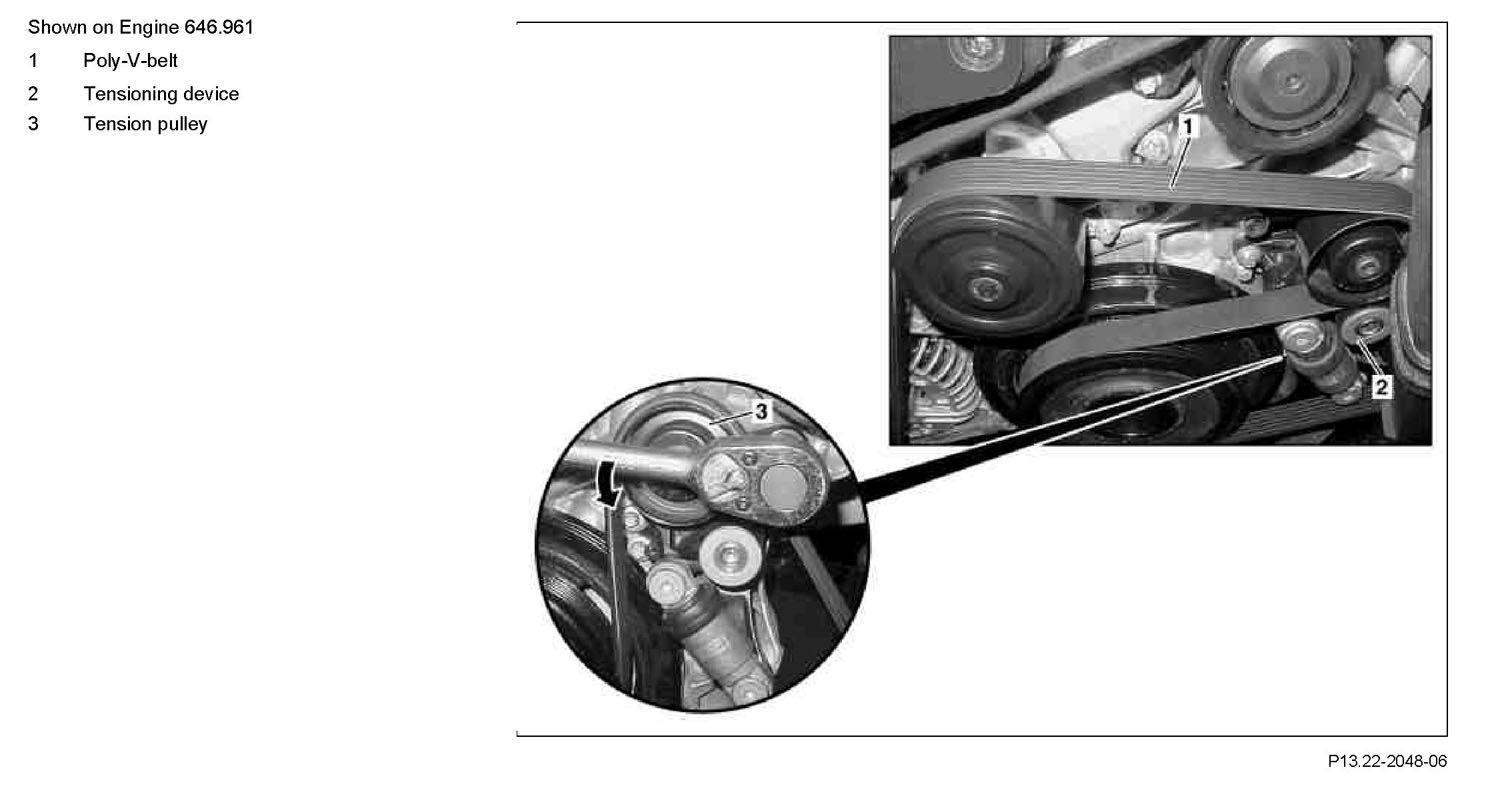

Component Identification:

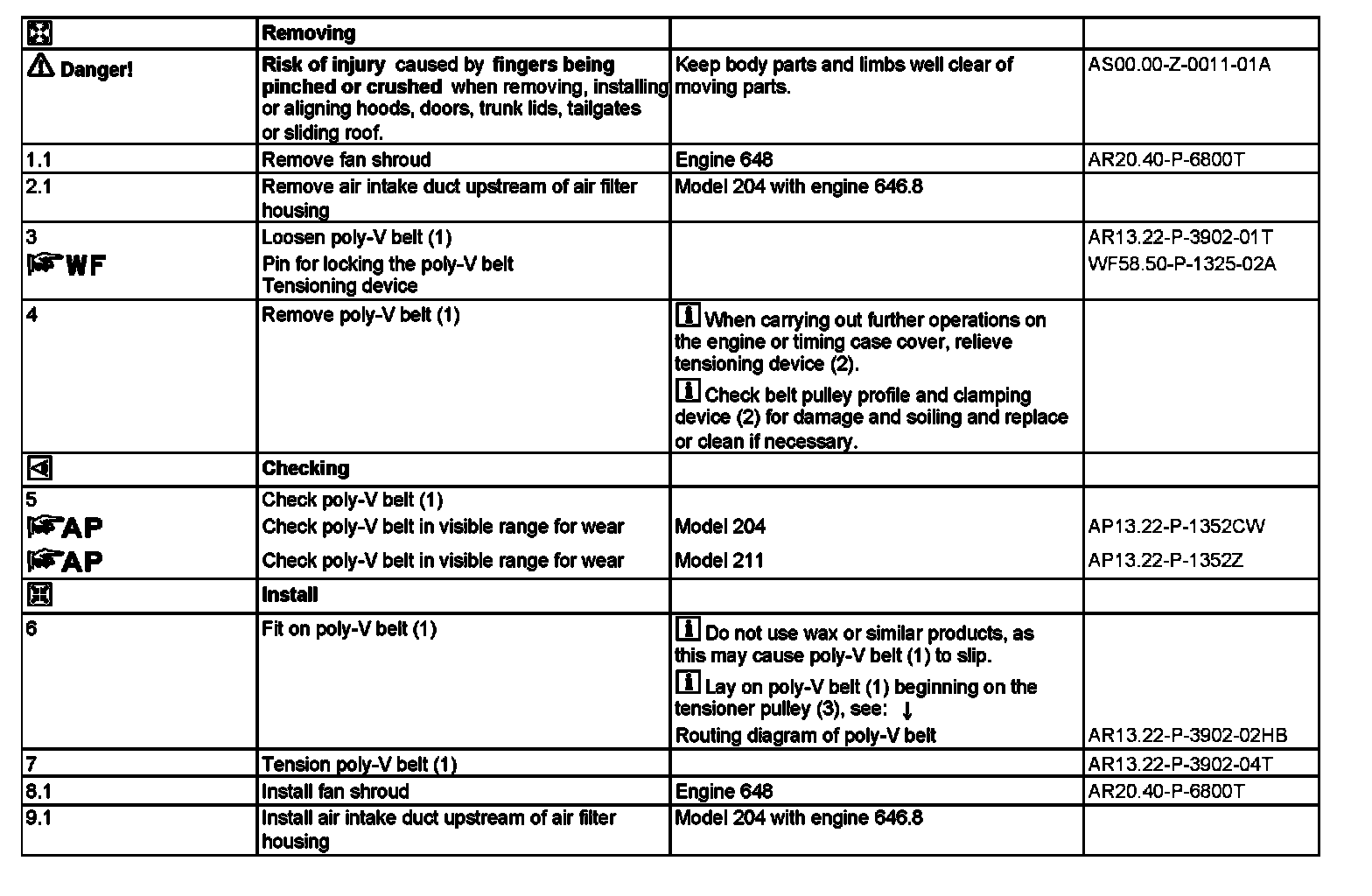

Steps 1-9.1:
