E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961)
>>
Repair and Diagnosis
>>
Locations
>>
Component Locations
>>
Ax to B2
>>
Axle Damping Valve Unit, Rear, Right
Axle Damping Valve Unit, Rear, Right
Axle Damping Valve Unit, Rear, Right

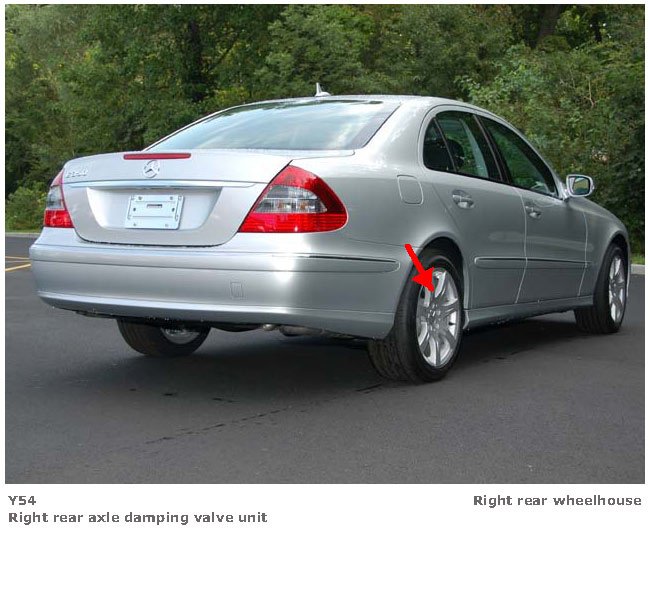

Right Rear Axle Damping Valve Unit (View 1):

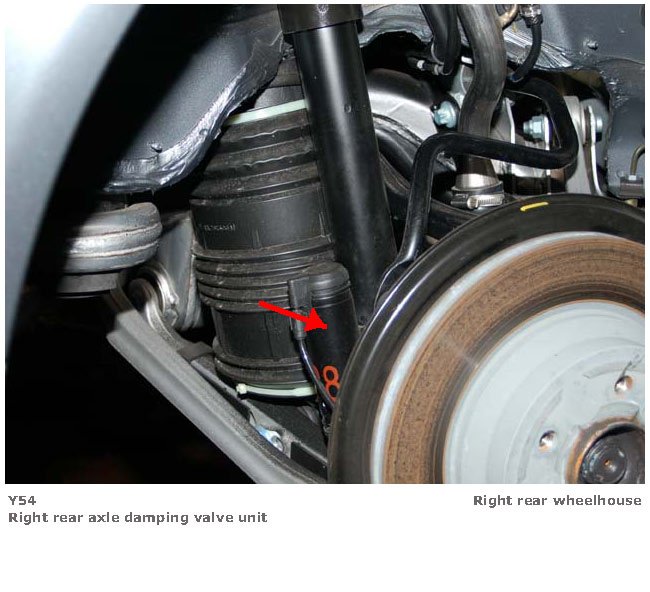

Right Rear Axle Damping Valve Unit (View 2):
