AR82.10-P-4730TA Remove/Install Headlamp Unit



AR82.10-P-4730TA Remove/Install Headlamp Unit
- When removing the left or right front lamp unit

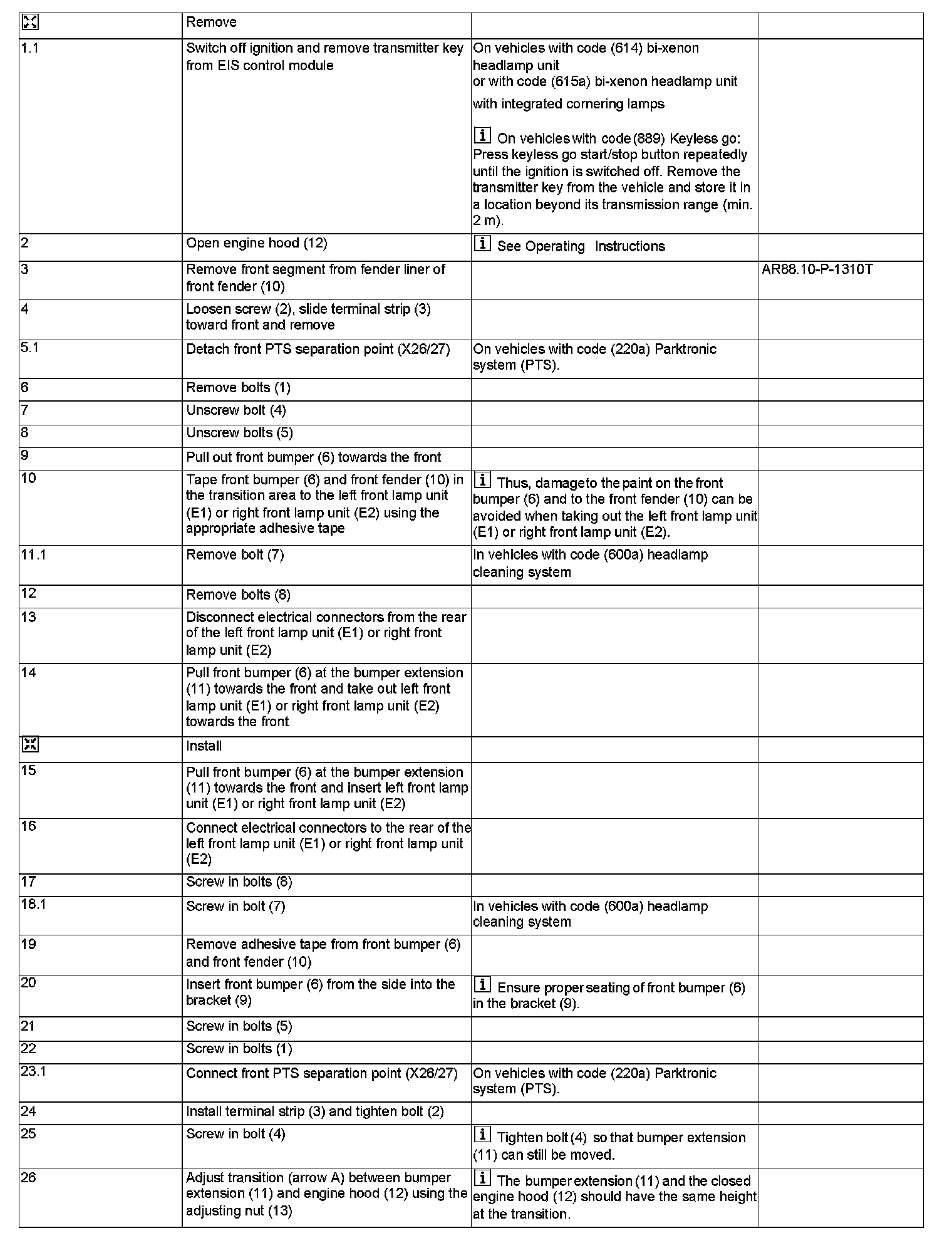

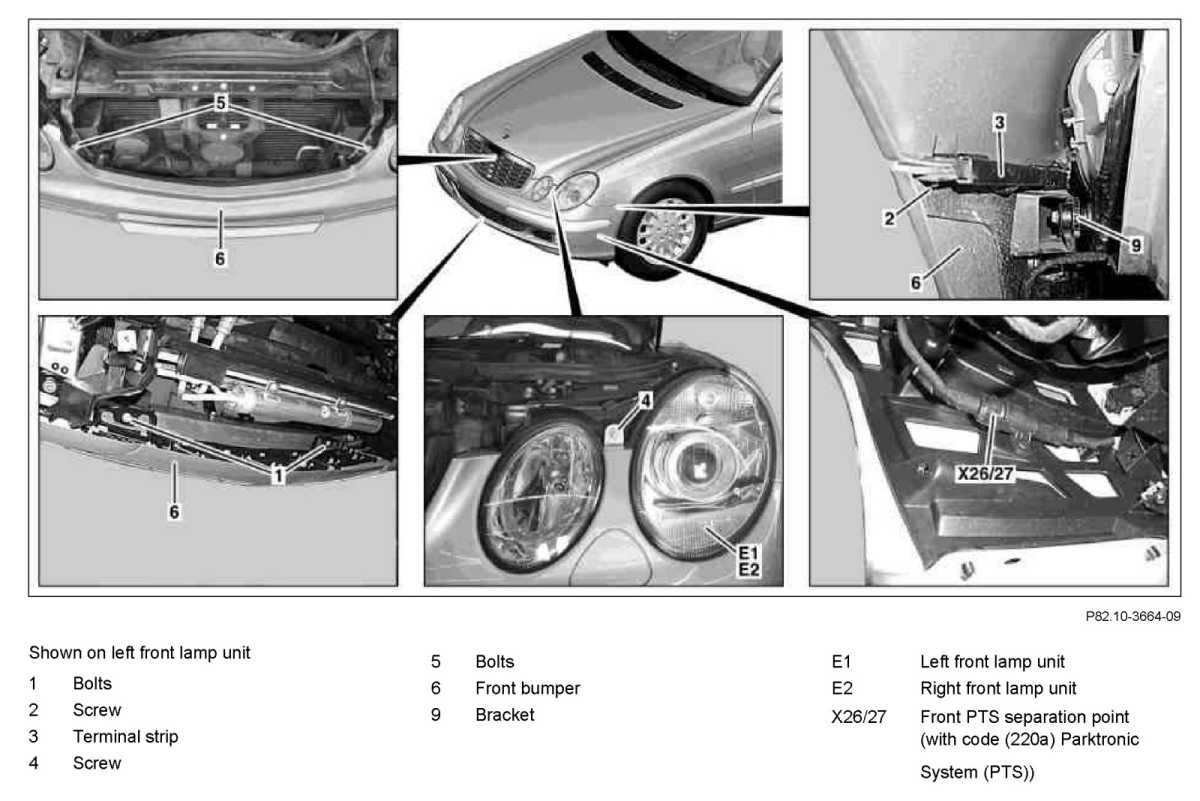

Part 1:

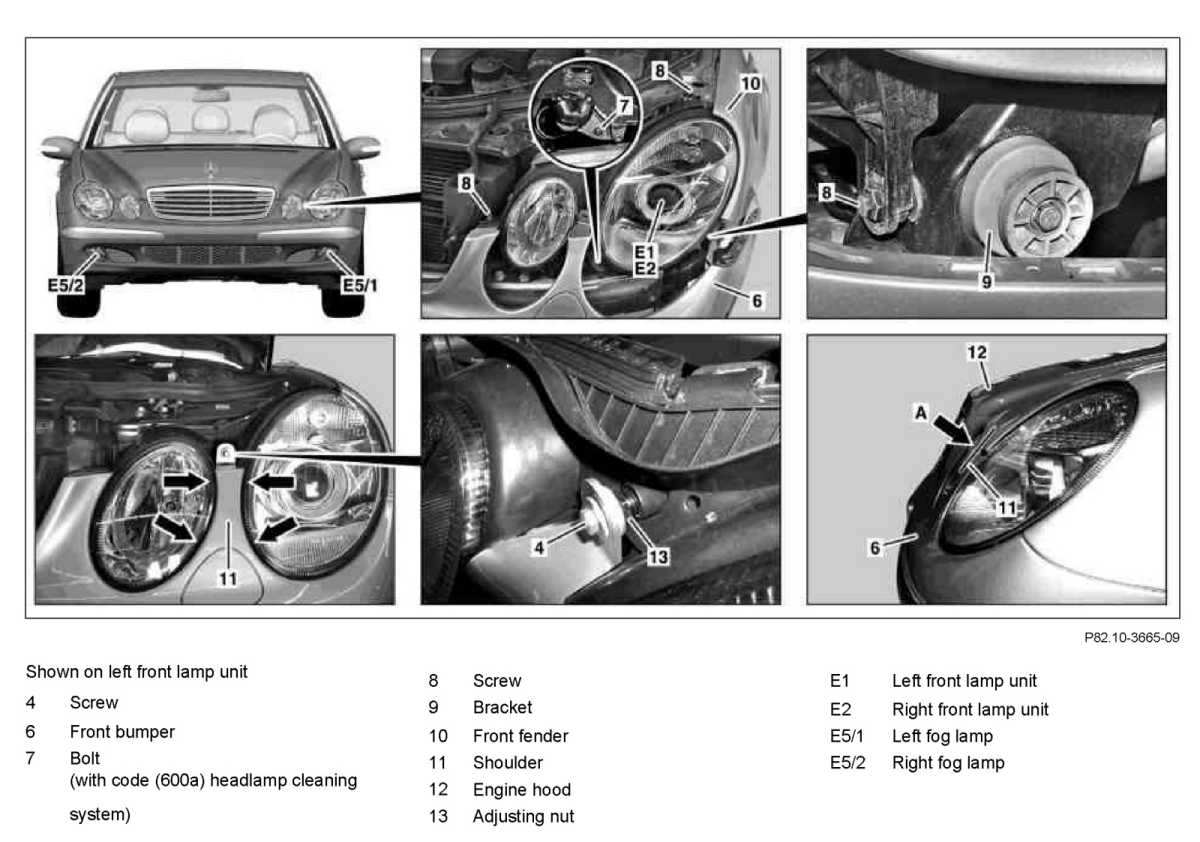

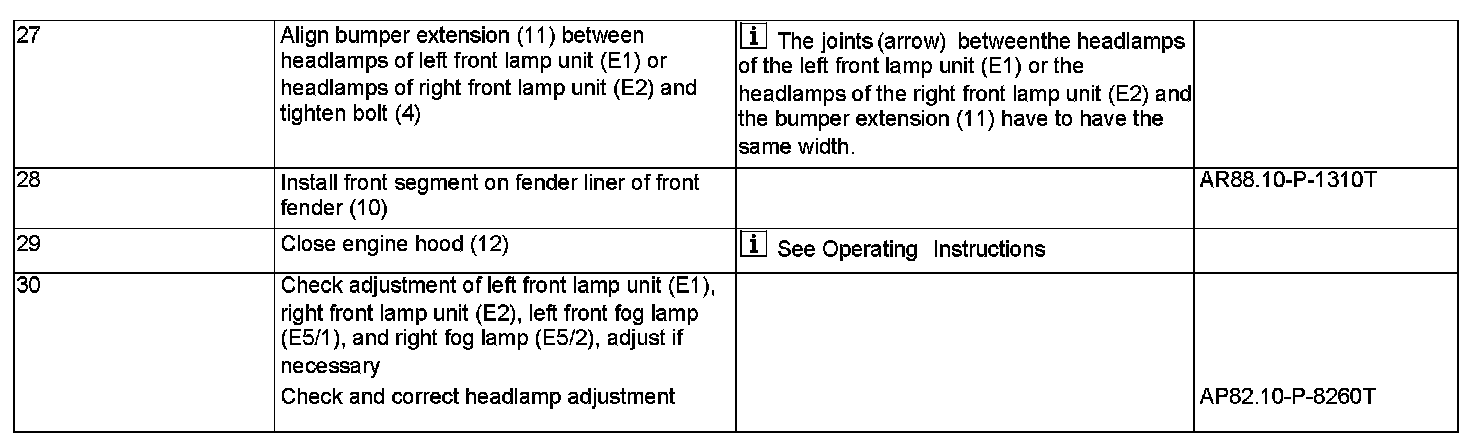

Part 2:
