AR82.10-P-4081T Remove/Install Headlight Beam Adjustment Control Module

AR82.10-P-4081T Remove/Install Headlight Beam Adjustment Control Module
- With CODE (614) Bi-Xenon headlamp unit
- With CODE (615) Bi-Xenon headlamp unit with integrated cornering lamps

Shown On Model 211.0:

1 Remove right-hand front seat

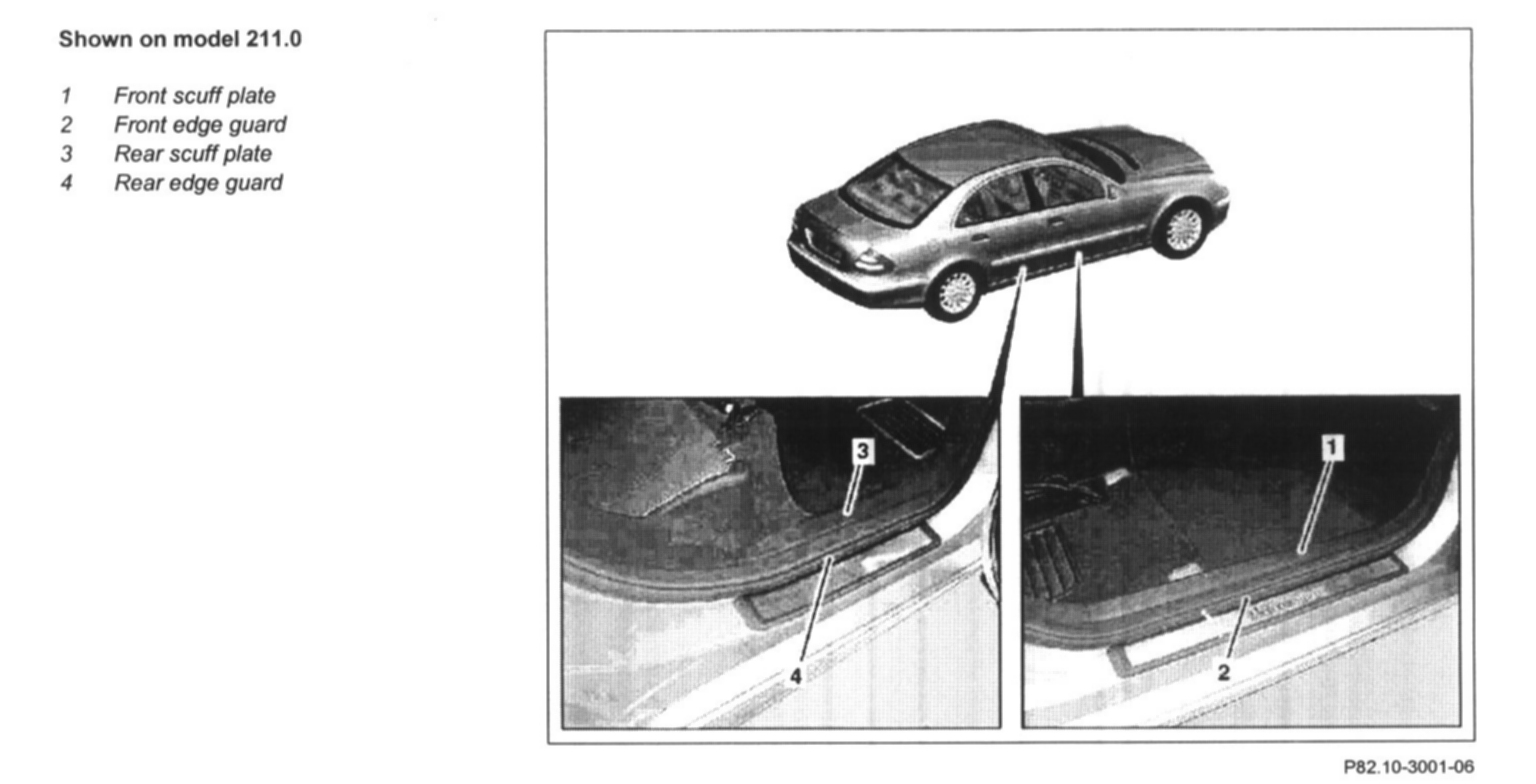

2 Detach front edge guard (2) in area around front scuff plate (1).
3 Remove scuff plate (1)
4 Detach rear edge guard (4) in area around rear scuff plate (3)
5 Remove rear scuff plate (3)

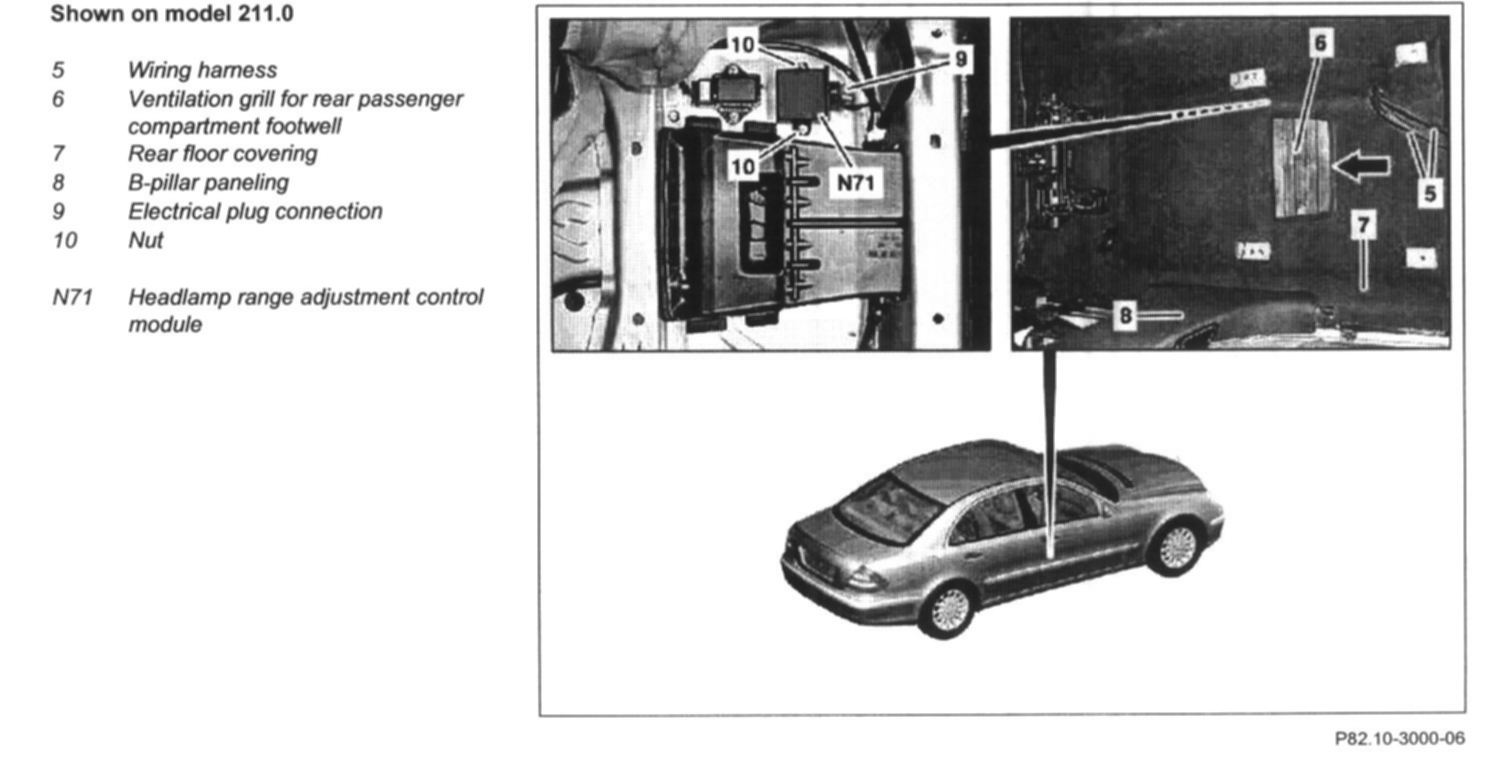

6 Unclip rear footwell air grate (6) (arrow) and remove
7 Pull out rear floor lining (7) from under the B-pillar paneling (8)
8 Lift up rear passenger compartment floor covering (7).
9 Lead out electrical wiring harness (5) from rear floor lining (7)
10 Unscrew nuts (10) and remove headlamp range adjustment control module (N71)
11 Disconnect plug and socket connection (9)
12 Install in the reverse order
13 Check headlamp adjustment
- Only when replacing the headlamp range adjustment control module (N71).
