Home >> Mercedes Benz >> 2006 >> E 320 CDI (211.026) L6-3.2L DSL Turbo (648.961) >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Description and Operation >> GF82.10-P-2101TT Headlamp Leveling System Motor, Location/Task/Design/Function

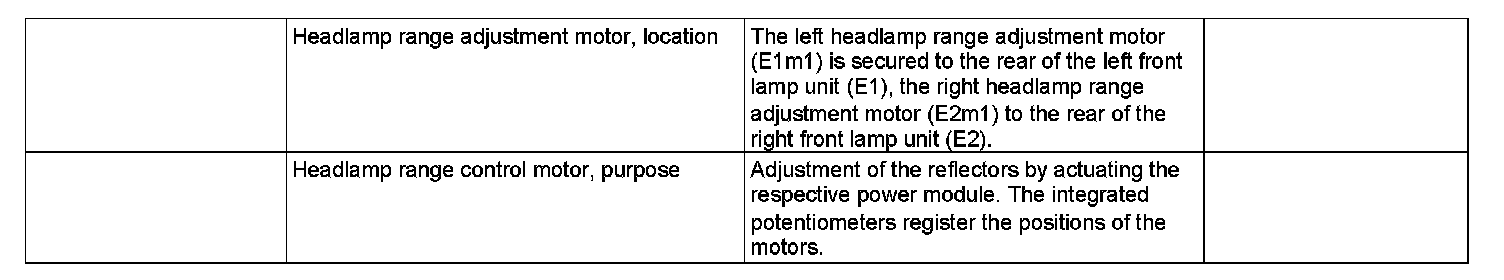

GF82.10-P-2101TT Headlamp Leveling System Motor, Location/Task/Design/Function



GF82.10-P-2101TT Headlamp Leveling System Motor, Location/Task/Design/Function
- with CODE (614) Bi-xenon headlamp unit
- with CODE (615) Bi-xenon headlamp unit with integrated curve illumination

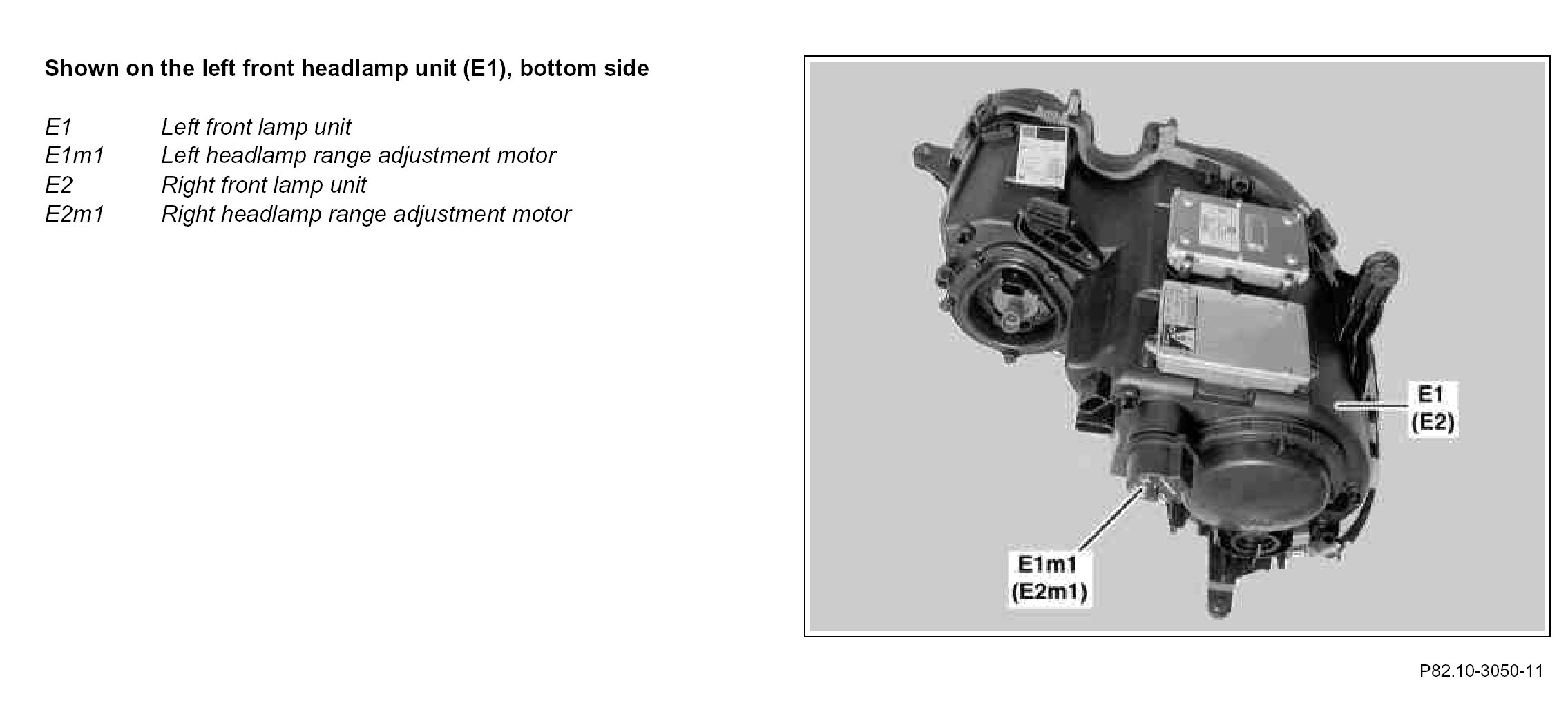

Component Identification:
