AR82.10-P-1835TM Remove/Install Fog Lamps
AR82.10-P-1835TM Remove/Install Fog Lamps
AR82.10-P-1835TM Remove/Install Fog Lamps

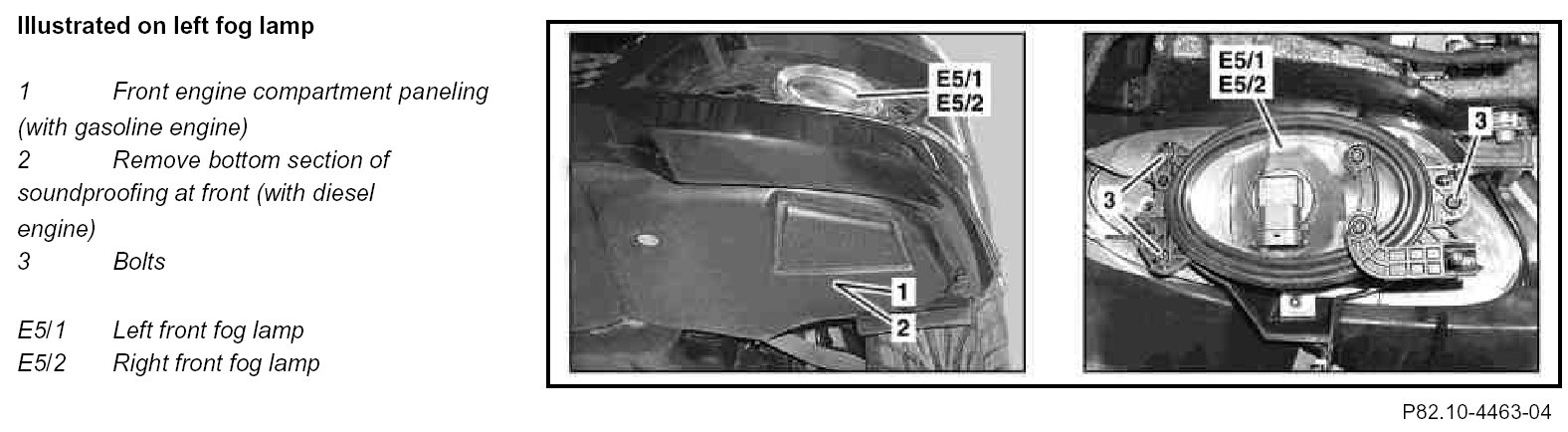

Component Identification:

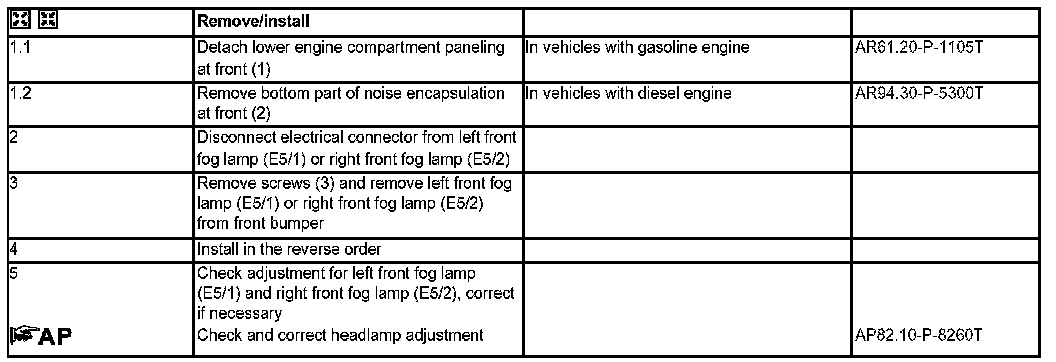

Steps 1.1 - 5:
