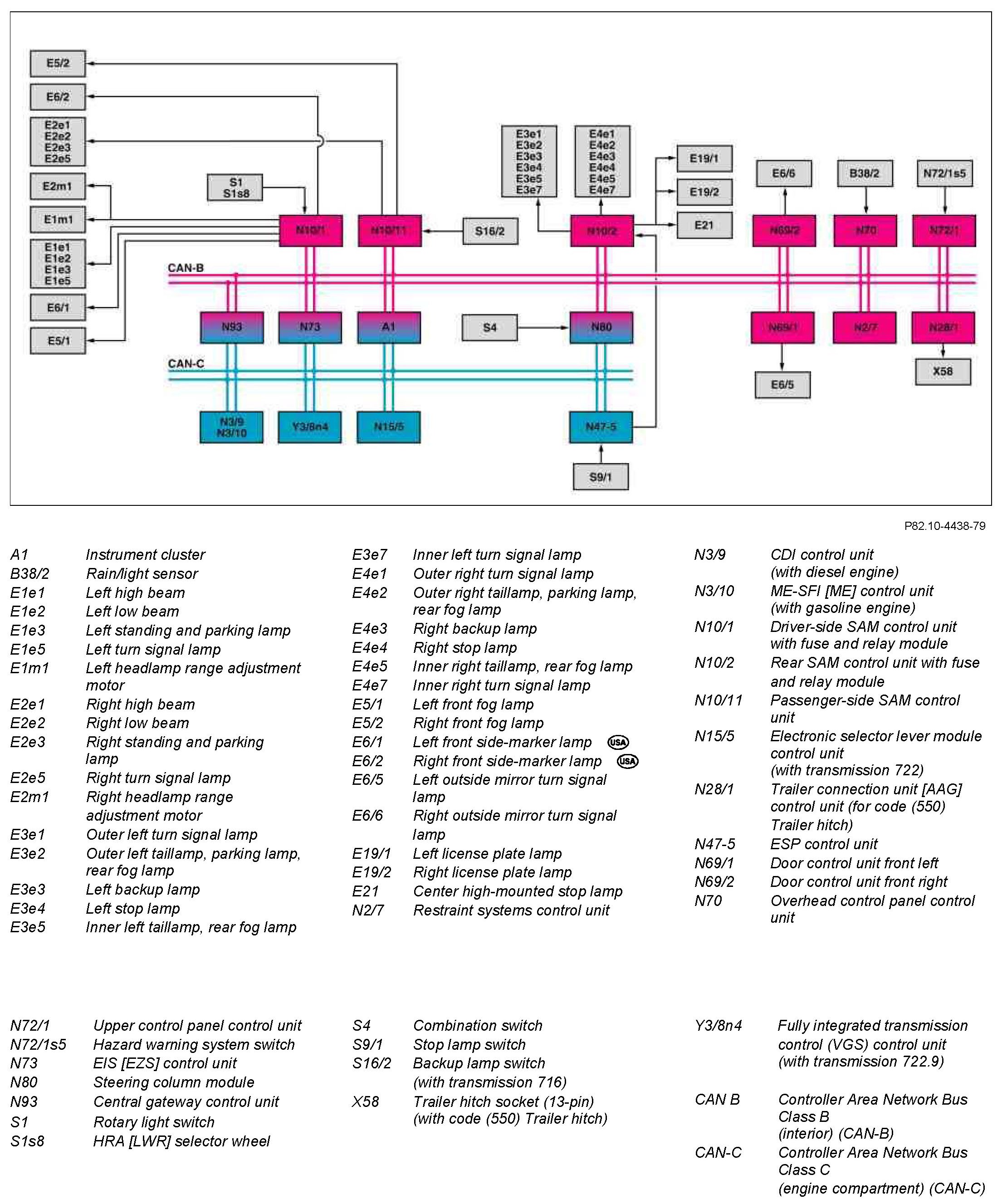

GF82.10-P-0003-03TM Exterior Lights Block Diagram



GF82.10-P-0003-03TM Exterior Lights Block Diagram
- except CODE (614) Bi-xenon headlamp unit
- except CODE (618) Bi-xenon headlamps


Component Identification:
