AR83.30-P-5253PA Correct Oil Level In Air Conditioning System If System Is Suddenly Drained



AR83.30-P-5253PA Correct Oil Level In Air Conditioning System If System Is Suddenly Drained

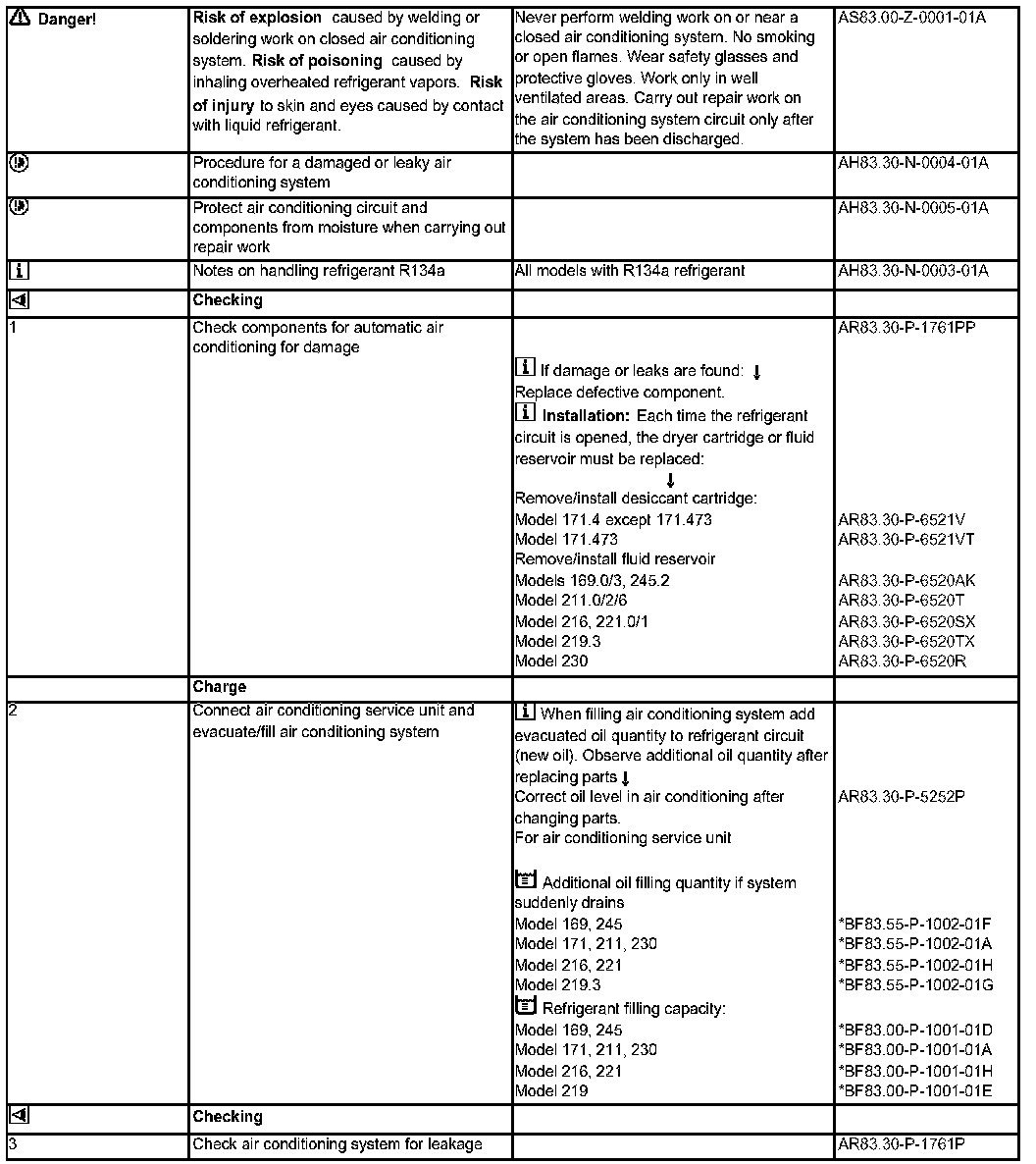

Steps 1 - 3:

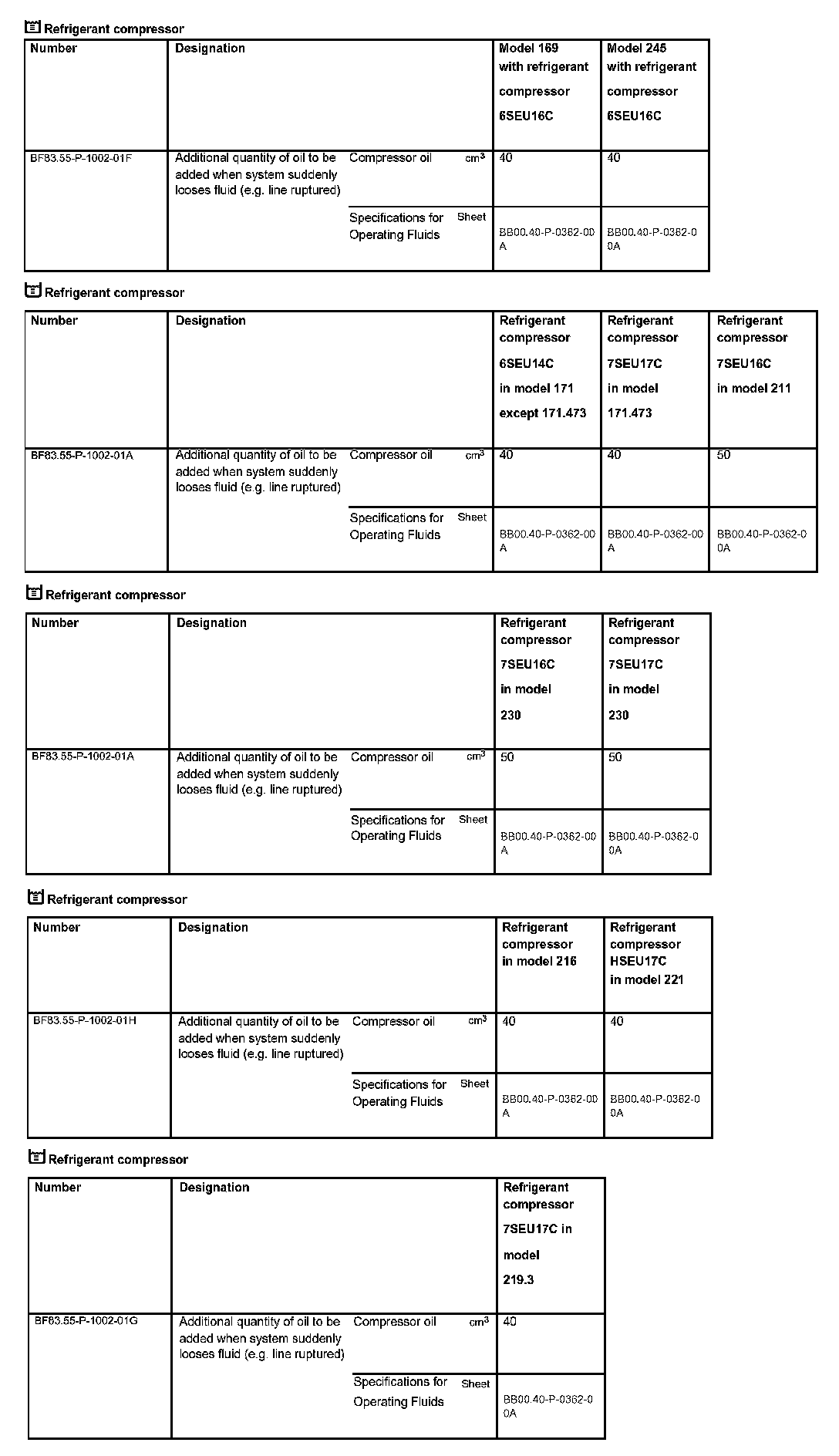

Refrigerant Compressor:

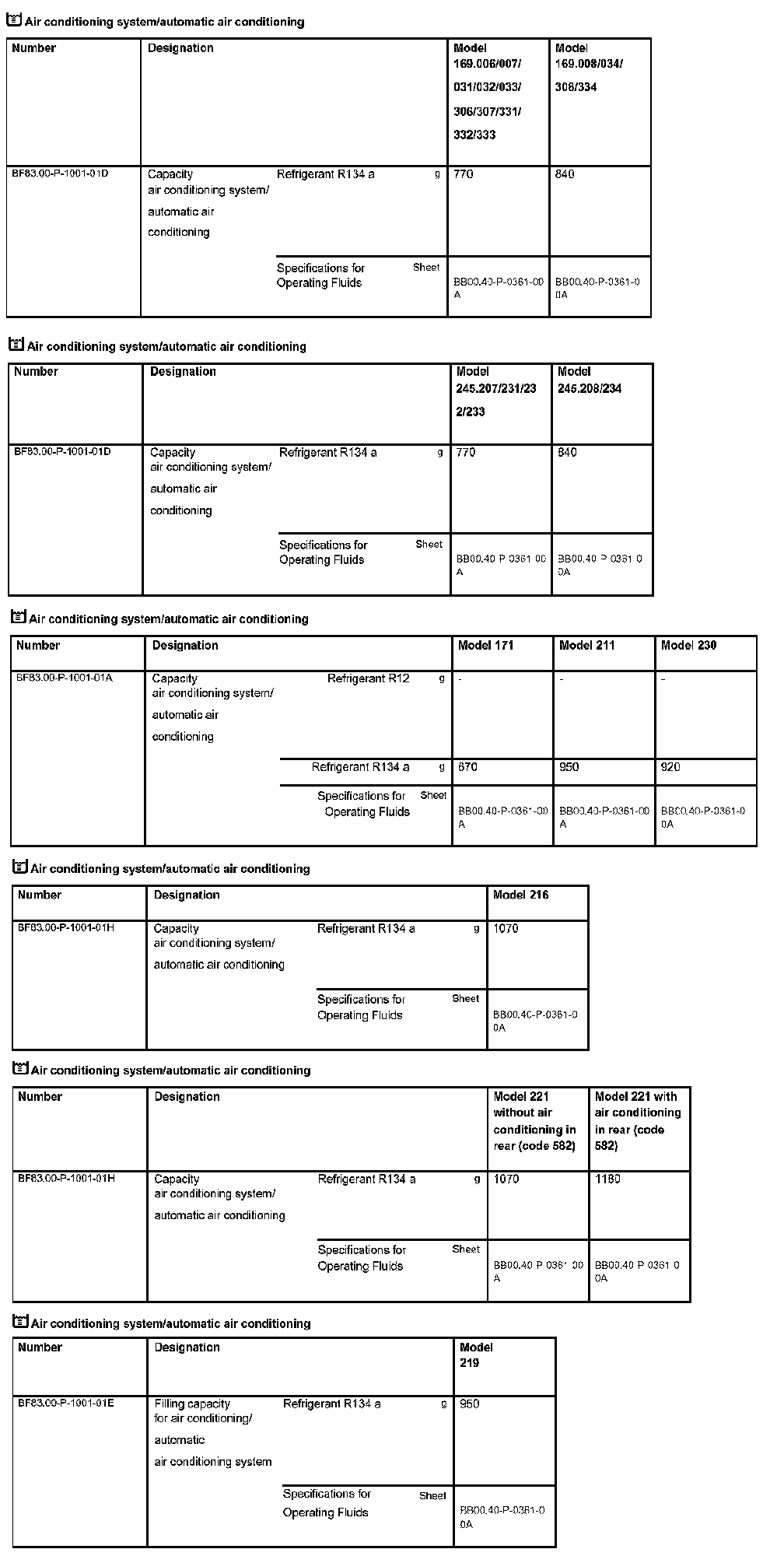

Air Conditioning System/Automatic Air Conditioning:
