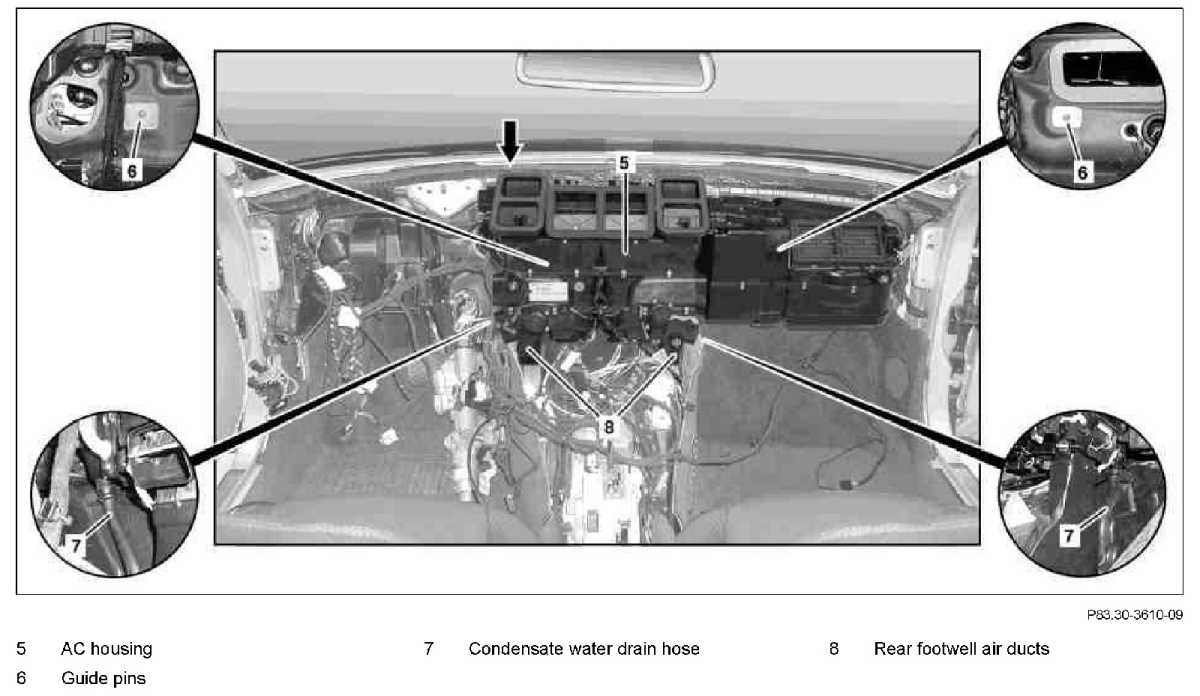

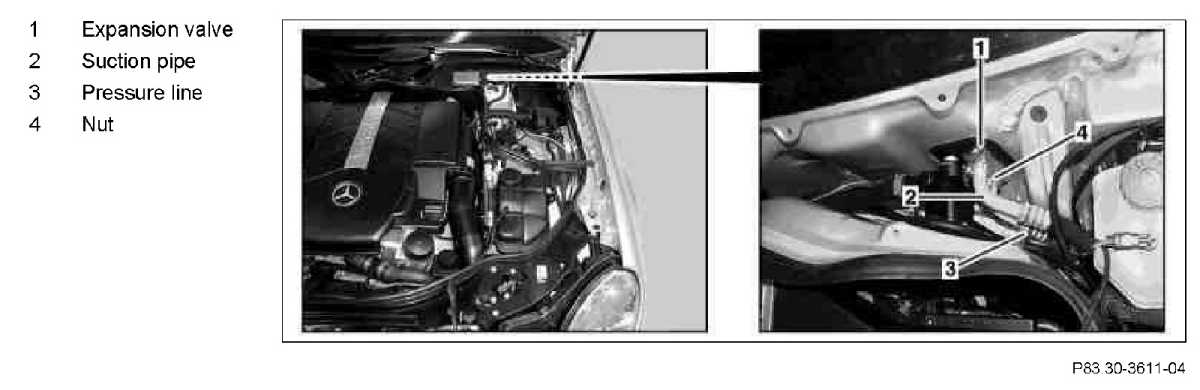

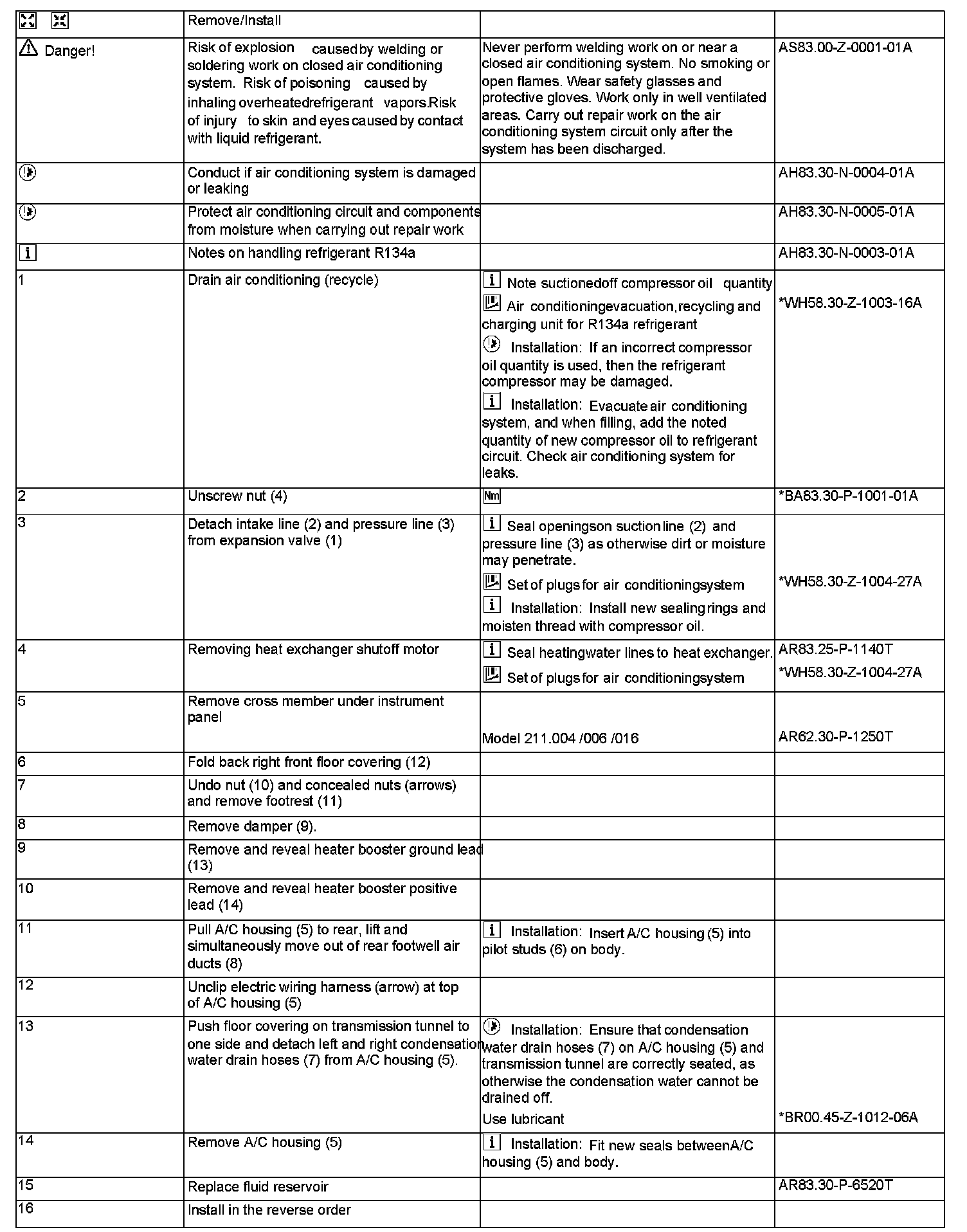

AR83.30-P-5200TA Remove/Install AC Housing
AR83.30-P-5200TA Remove/Install AC Housing
AR83.30-P-5200TA Remove/Install AC Housing

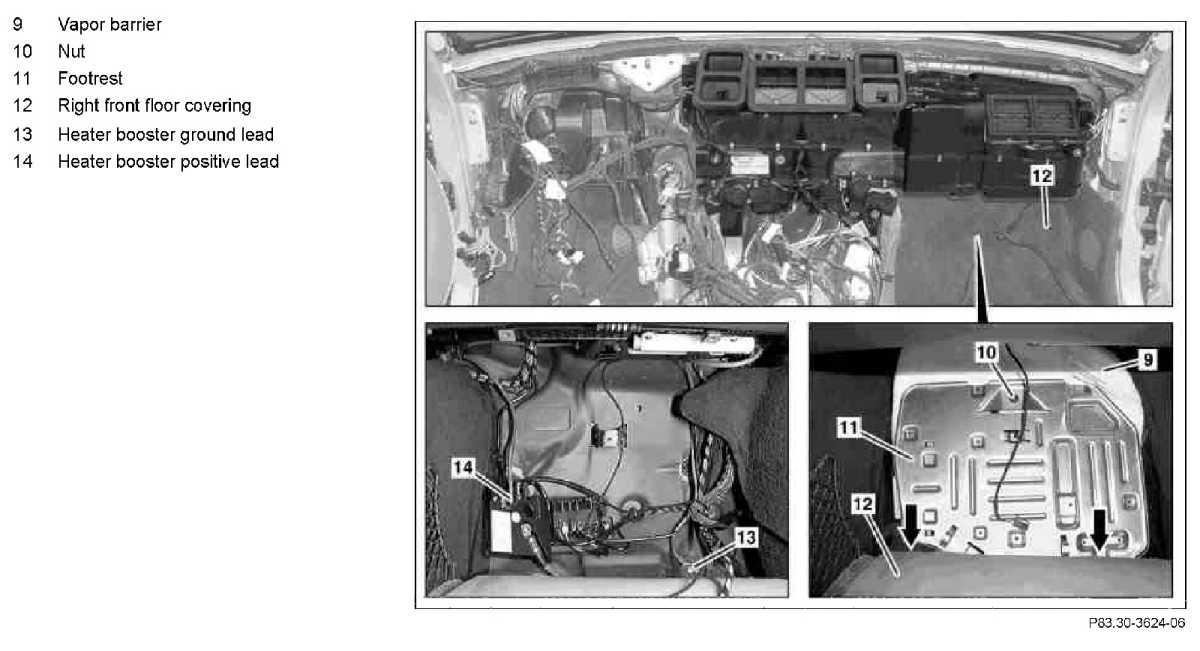

- With heater booster

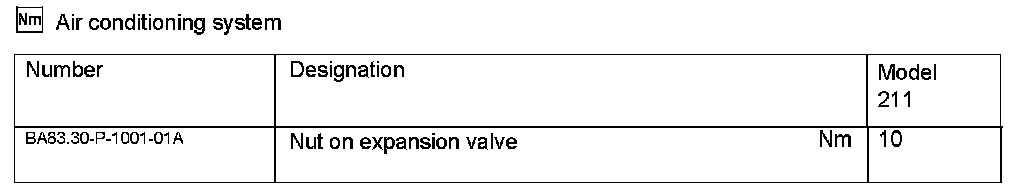

Air Conditioning System:
